CQ62125

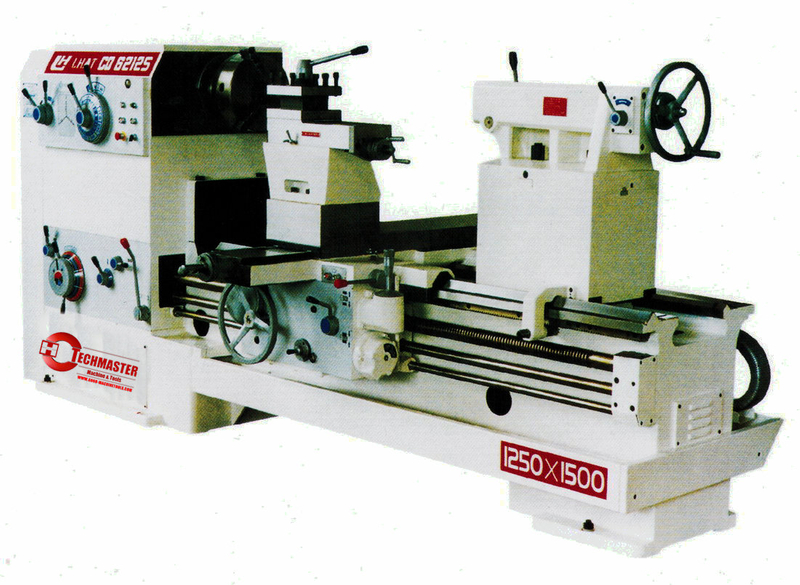

Quantity: UNIVERSAL HORIZONTAL LATHE TURNER MASTER CQ62125
Features
Hardened and ground bed ways
D1-11 camlock spindle nose easy for chuck changing
Heavy duty spindle 105mm or 128mm
Multi-disc forward and reversing clutch for slow start up of heavy workpiece
Rapid feed in apron with separate motor
One-piece casting iron base for heavy duty
High-strength cast iron lathe solo whole bed body, casting use resin
Sand casting are close bake technology
Shift gears structure use on tailstock body.
CQ61125 series lathe is factory new developped products based on many years production CW6163A, CW6163C series lathe experience, according customers different requiremetns of turning developped a new generation products.
There are four varieties of workpiece turning length from 0.75-12 m,
Metric, Imperial have thirty-eight kinds to be choose
This series of machine tools used machine repair, tools and manufacturers industrial production
Mainly used for various types of shafts, disc type, shaped like turning internal and external cylindrical surface, conical surface, the other rotating surface, turning face, and can cutting metric, inch, modulus, thread pitch
This lathe can also realize drilling, boring, reaming and broaching tank and so on.
Bed of high-strength cast iron base of the monolithic bed, resin sand casting are close bake technology, the use of variable speed tailstock body.SPECIFICATIONS CQ62125(LZJC) CQ61125(LZJC) Swing over bed 1250mm 1250mm(32") Distance btw centers 3m, 4m, 5m,6m Swing over cross slide 970mm 970mm Swing over gap 1510mm
Length of gap bed 340mm Spindle bore 120mm Spindle speed 18 steps
6-800rpmInch thread range (43kinds)
1/16 - 19TPIMetric thread range
(50kinds)
1-24mmModular thread 50kinds 1-240mm Diametrical thread pitch 42kinds 19-1/16T. P. I Motor 15KW(OPTIONAL) Net Weight 5800kg(3m)
6500kg(4m)
7200kg(5m)6100kg(3m)
6800kg(4m)
7500kg(5m)
