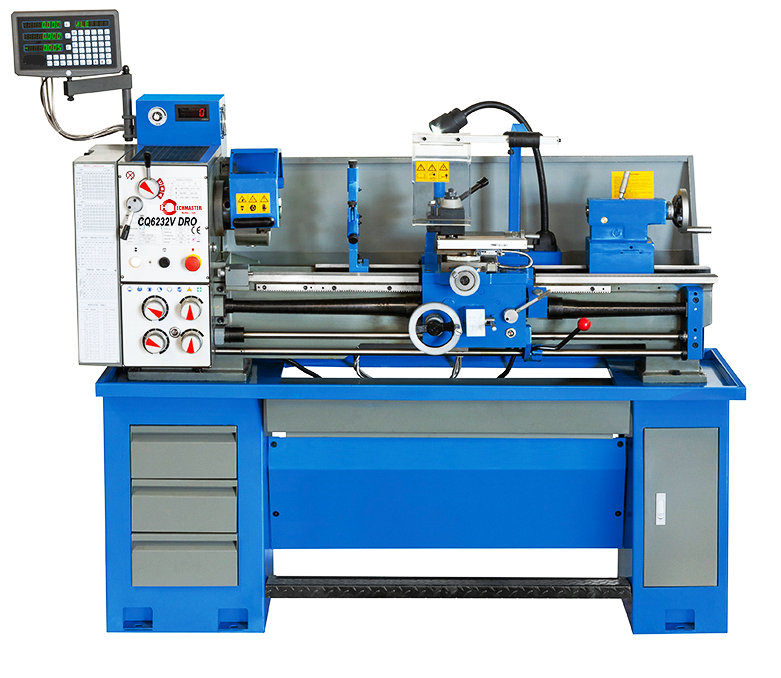

CQ6232V DRO GEAR HEAD LATHE WITH INVERTER 230V
Availability:
Quantity:
Inquire
Add to Basket
Model:
CQ6232V DRO
Product Description
Variable spindle speed
65 ÷ 1750 rpm
Centers height
170 mm
Max swing over the bed
340 mm
Max swing over the cross slide
200 mm
Max length of workpiece
940 mm
Spindle bore taper MT
5
Spindle bore
38 mm
Spindle nose Camlock
Camlock D1-4
Longitudinal feeds
0,053 ÷ 1,291 mm/rev
Cross feeds
0,011 ÷ 0,276 mm/rev
Metric threads
0,4 ÷ 7 mm
Inch threads
4 ÷ 60 TPI
Tailstock taper MT
3
Motor
Three-phase 230 V 1.5 kW
Dimensions
1770 x 1400 x 670 mm
Net weight
465 kg
Single-phase power supply
230 V 50 / 60 Hz
Gross weight
465 kg
Packing dimensions
750 x 1640 x 1500 mm
Variable spindle speed
65 ÷ 1750 rpm
Centers height
170 mm
Max swing over the bed
340 mm
Max swing over the cross slide
200 mm
Max length of workpiece
940 mm
Spindle bore taper MT
5
Spindle bore
38 mm
Spindle nose Camlock
Camlock D1-4
Longitudinal feeds
0,053 ÷ 1,291 mm/rev
Cross feeds
0,011 ÷ 0,276 mm/rev
Metric threads
0,4 ÷ 7 mm
Inch threads
4 ÷ 60 TPI
Tailstock taper MT
3
Motor
Three-phase 230 V 1.5 kW
Dimensions
1770 x 1400 x 670 mm
Net weight
465 kg
Single-phase power supply
230 V 50 / 60 Hz
Gross weight
465 kg
Packing dimensions
750 x 1640 x 1500 mm
