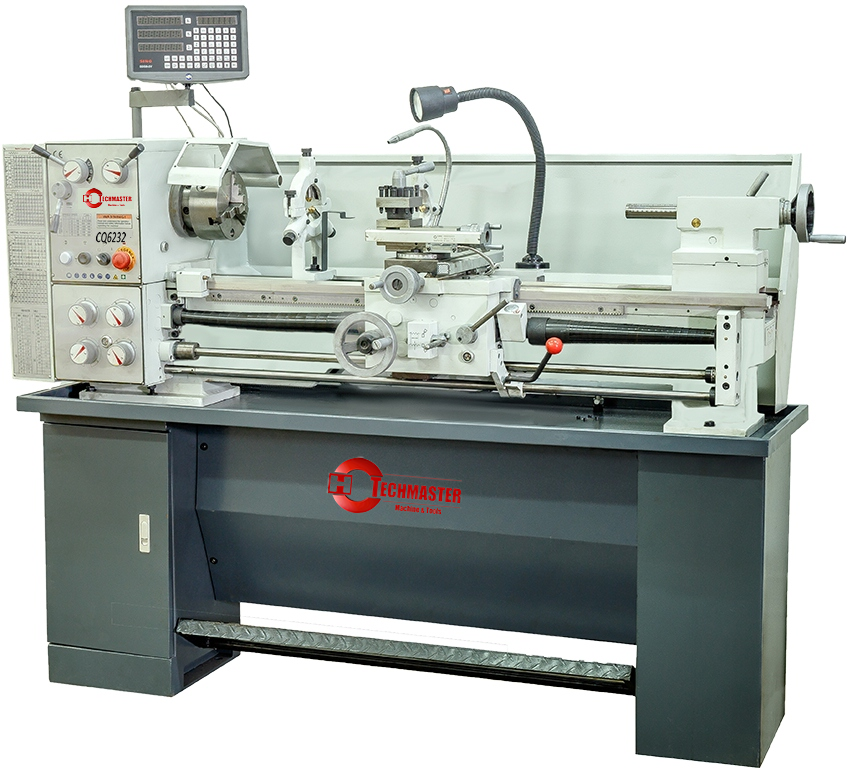

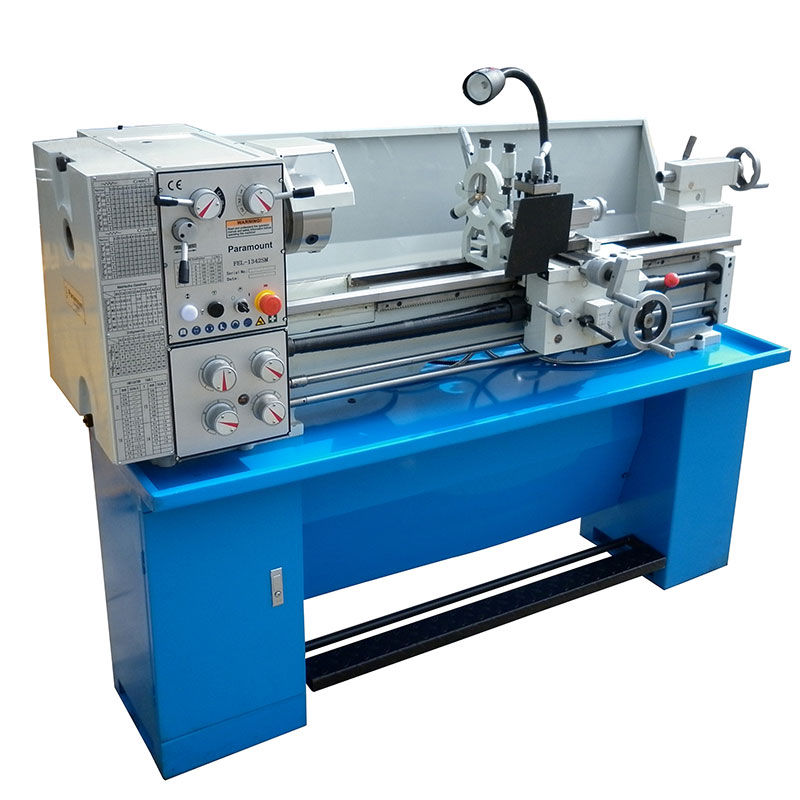

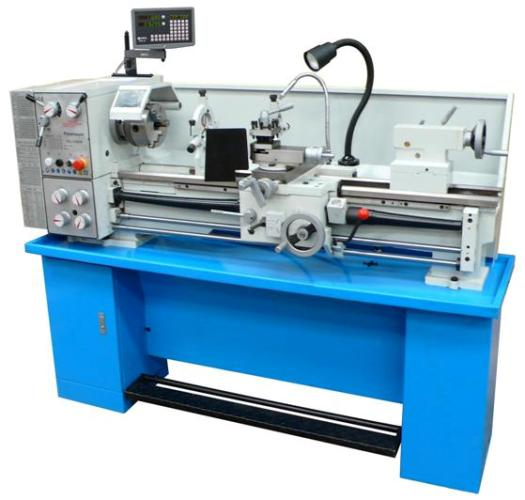

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
Main specification
| Specifications | CQ6232 /1000mm |
| Max.swing over bed | Φ300mm(12")/320mm(12-4/5")) |
| Max.swing over cross slide | Φ180mm(7")/198mm(7-25/32") |
| Max. swing over gap | Φ430mm(17")/476mm(18-3/4") |
| Distance between centers | 750/910/1000mm(30"/36"/40") |
| Spindle bore | Φ38mm(1-1/2") |
| Taper of spindle bore | MT5 |
| Range of spindle speeds | 65-1400)rpm or 65-1810rpm |
| Range of longitudinal feeds | 0.079-1.291mm/rev(0.003"-0.0508"/rev) |
| Range of cross feeds | 0.017-0.276mm/rev(0.0007"-0.0108"/rev) |
| Metric threads can be cut | 0.4-7mm |
| Inch threads can be cut | 4-60 T.P.I. |
| Max. travel of tail stock quill | 100mm(4") |
| Taper of tail stock | MT3 |
| Motor power | 1.1kw/1.5kw |
| Gross weight | 550/590/670kg |
| Net weight | 500/540/620kg |
| Packing size | 1480/1680/1940×750×1400mm |
