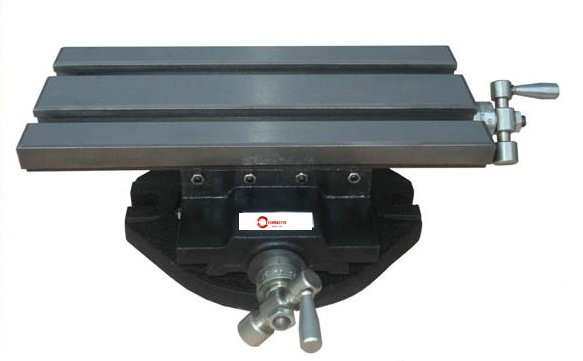

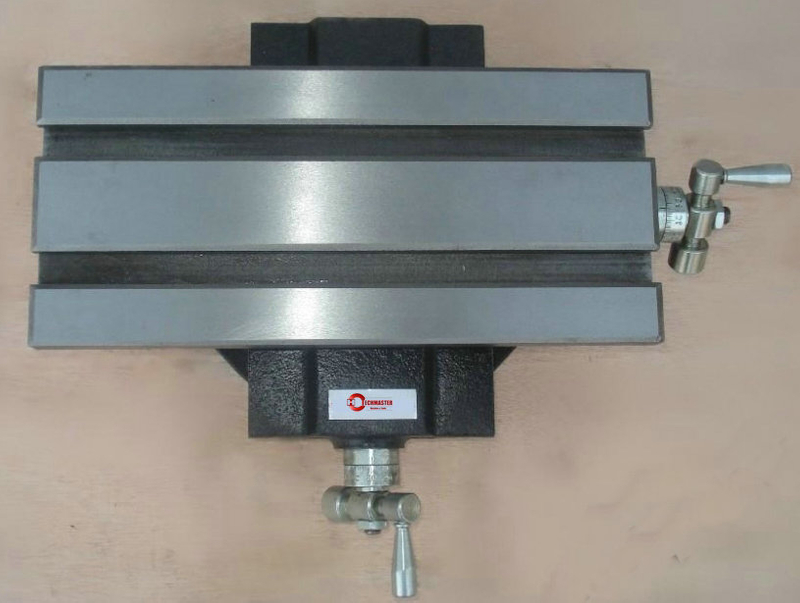

CROSS TABLE SUBASSEMBLY 312 x 142 mm
| Dimension of worktable | 312 x 142 mm |
| Longitudinal travel of worktable: | 203 mm |
| Transverse travel of worktable | 125 mm |
| T slot number | 2 |
| Size of mounting boles / slots | 16 mm |
| Weight: | 17 kg |
A = 312 mm
B = 142 mm
C = 16 mm
D = 65 mm
E = 115 mm
ASSEMBLY DIMENSIONS = 190 - 225 mm
| Dimension of worktable | 312 x 142 mm |
| Longitudinal travel of worktable: | 203 mm |
| Transverse travel of worktable | 125 mm |
| T slot number | 2 |
| Size of mounting boles / slots | 16 mm |
| Weight: | 17 kg |
A = 312 mm
B = 142 mm
C = 16 mm
D = 65 mm
E = 115 mm
ASSEMBLY DIMENSIONS = 190 - 225 mm
