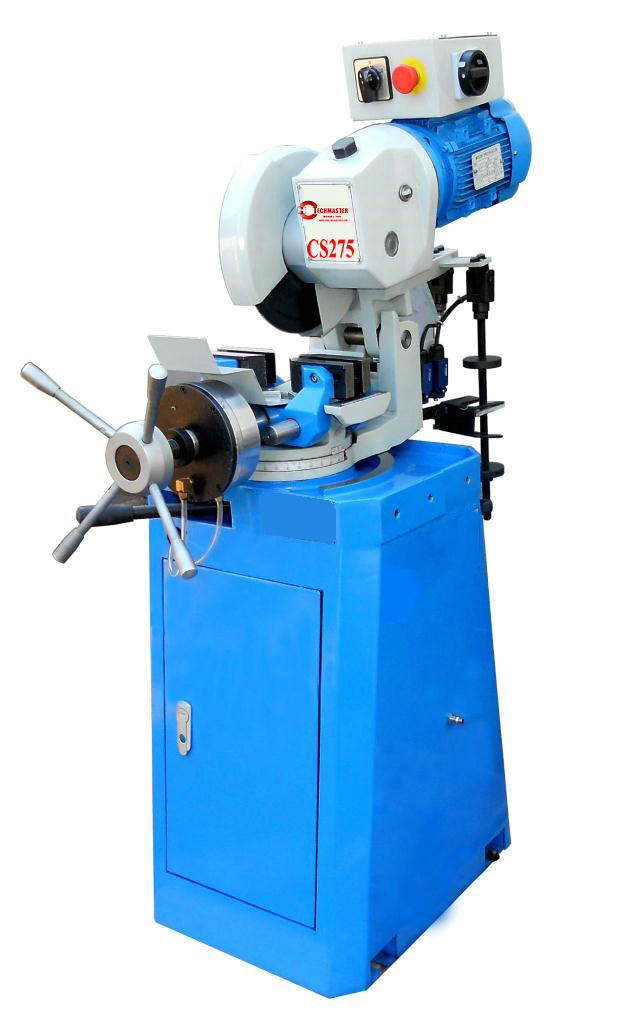

CS275

Quantity:

● Powerful, maintenance-free motor
 Centrically tensing vice, quadruple guiding,with individually adjustable jaws
 Cutting is always performed at an optimum position towards the work piece
 Clamping system with 4 levers
 Solid machine substructure with holes to assemble the material stand on both sides
 Removable coolant tank with integrated powerful pump
 High-grade, fracture-proof and movable protective device with rapid opening
 Mechanism provides optimum protection when cutting
 Functional, all-surrounding movable protective device with rapid opening mechanism
 Long handle allows sawing without great effort
 Built-in switch with handle
 Well readable angular scale allows precise sawing
 Head swivel range ±45°
 Rapid adjustment of the mitre

MODEL
CS275
CS315
CS350
 Specifications
 Head rotation
±45°
±45°
±45°
 Speeds
48/96rpm
19/38rpm
19/38rpm
 Max. opening

110mm

140mm
150mm
 Motor power

1.4/2.0kw

0.75/1.5kw
1.1/1.5kw
 Coolant pump Motor
40W
40W
40W
 Saw blade size
 Max. diameter
Φ275mm
Φ315mm
Φ350mm
 Bore
Φ40mm
Φ40mm
Φ40mm
 Pin holes
2xΦ8xPCD55mm
2xΦ8xPCD55mm
2xΦ8xPCD55mm

 0°Max. cutting

 capacity

 Round
Φ60mm
Φ70mm
Φ120mm
 Square
60x60mm
70x70mm
120x120mm
 Rectangle
100x60mm
130x70mm
135x110mm

 45°Max. cutting

 capacity

 Round
Φ60mm
Φ70mm
Φ110mm
 Square
60x60mm
70x70mm
110x110mm
 Rectangle
70x60mm
90x70mm
110x90mm
 Packing dimensions(LXWXH)
940X560X1470mm
980X630X1530mm
1000X630X1560mm
 NW/GW
175/200Kg
235/265Kg
260/290Kg
