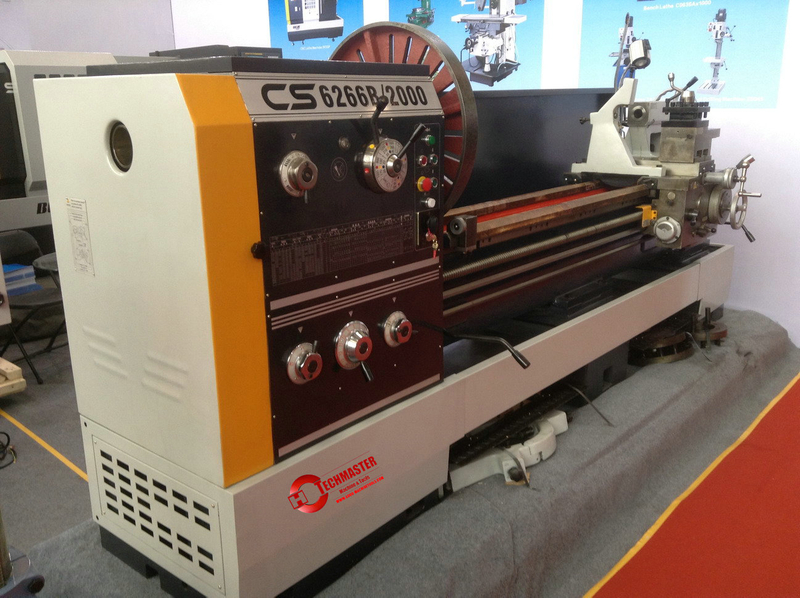

CS6250B

Quantity:
  • 属性值

SPECIFICATIONS UNIT CS6240 CS6250/B CS6266/B CS6280B CS6250C CS6266C CQ6280C
Capacity Max. swing dia. over bed mm Φ400 Φ500 Φ660 Φ800 Φ500 Φ660 Φ800
Max. swing dia.in gap mm Φ630 Φ710 Φ870 Φ1000 Φ710 Φ870 Φ1000
Max. swing dia. over slides mm Φ220 Φ300 Φ420 Φ560 Φ300 Φ420 Φ560
Max. workpiece length mm 750/1000/1500/2000/3000 1000/1500
2000/3000
2000/3000 1000/1500
2000/3000
2000/3000
Spindle Spindle bore diameter mm Φ52 Φ82 Φ82 Φ105
Type of spindle nose / CS6240:ISO 702/III NO.6 bayonet lockothers:ISO 702/II NO.8 com-lock type
Spindle speed rpm 24 steps 9-1600 24 steps
8-1400
12 steps
36-1600
12 steps
30-1400
Spindle motor power KW 7.5
Tailstock Diameter of quill mm Φ75 Φ90
Φ90
Max. travel of quill mm 150
Taper of quill (Morse) MT 5
Turret Tool O.D. size / 4; 25X25
Feed Max. X travel mm 145
Max. Z travel mm 320 310 320
X feed range mm/r 93 kinds 0.028-6.43 65 kinds 0.063-2.52
Z feed range mm/r 93 kinds 0.012-2.73 65 kinds 0.027-1.07
Metric threads mm 48 kinds 0.5-224 22 kinds 1-14
Inch threads t.p.i 48 kinds 72-1/4 25 kinds 28-2
Module threads πmm 42 kinds 0.5-112 18 kinds 0.5-7
Diametric pitch threads t.p.i.π 42 kinds 56-1/4 24 kinds 56-4
Other Cooling pump motor power KW 0.06
Length mm 2382/2632/3132/3632/4632 2632/3132
3632/4632
3365/4365 2632/3132
3632/4632
3365/4365
Width mm 975 1050 1340 975 1340
Height mm 1230 1350 1430 1270 1450 1490
Weight Kg 1795/2050
2250/2450/2850
2050/2100
2300/2500/2900
2400/2600
2800/3000
3300/3700 2100/2300
2500/2900
2200/2400
2600/3000
3000

—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
SPECIFICATIONS UNIT CS6166B CS6266B CS6166C CS6266C
Capacity Max. swing dia. over bed mm Φ660 Φ660
Max. swing dia. over slides mm Φ420 Φ420
Max. swing dia.in gap mm
Φ870
Φ870
Effective length in gap mm
Φ240
Φ240
Max. workpiece length mm 750/1000/1500/2000/3000 1000/1500/2000/3000
Max. turning length mm 700/950/1450/1950/2950 950/1450/1950/2950
Spindle bore diameter mm Φ82 Φ105
Spindle Taper of spindle bore Morse 1:20 Φ90 1:20  Φ113
Type of spindle nose no  ISO 702/II NO.8 Short cam-lock type  ISO 702/II NO.8 short cam-lock type
Spindle speed rpm 24 steps 9-1600 12 steps 36-1600
Spindle motor power KW 7.5 7.5
Diameter of quill mm Φ75 Φ75
Tailstock Max. travel of quill mm 150 150
Taper of quill (Morse) MT 5 5
Tool O.D. size mm 25X25 25X25
Turret Max. Travel of upper toolpost mm 145 145
Feed Max. travel of lower toolpost mm 310 310
X-axis feedrate m/min 50Hz:1.9, 60Hz: 2.3 50Hz:1.9, 60Hz: 2.3
Z-axis feedrate m/min 50Hz:4.5, 60Hz: 5.4 50Hz:4.5, 60Hz: 5.4
X-axis feed range mm/r 93 kinds 0.012-2.73 65 kinds 0.027-1.07
Z-axis feed range mm/r 93 kinds 0.028-6.43 65 kinds 0.063-2.52
Metric threads mm 48 kinds 0.5-224 22 kinds 1-14
Inch threads t.p.i 49 kinds 72-1/8 25 kinds 28-2
Module threads πmm 42 kinds 0.5-112 18 kinds 0.5-7
Diametric pitch threads t.p.i 45 kinds 56-1/4 24 kinds 56-4
Cooling pump motor power KW 0.12 0.12
Other Rapid traverse motor power KW 0.25 0.25
Length mm 2382/2632/3132/3632/4632 2632/3132/3632/4632
Width mm 975 975
Height mm 1270 1450
Weight Kg 2150/2200/2400/2600/3000 2200/2400/2600/3000

Standard accessories:
3-Jaw chuck
4-Jaw chuck
Steady rest
follow rest
chip guard
face Plate
center
foot brake
full set illuminating system
full set coolant system
full set wrenches and screw drivers

Optional accessories:
Taper turning attachment
Quick change tool post
Live center
DRO
