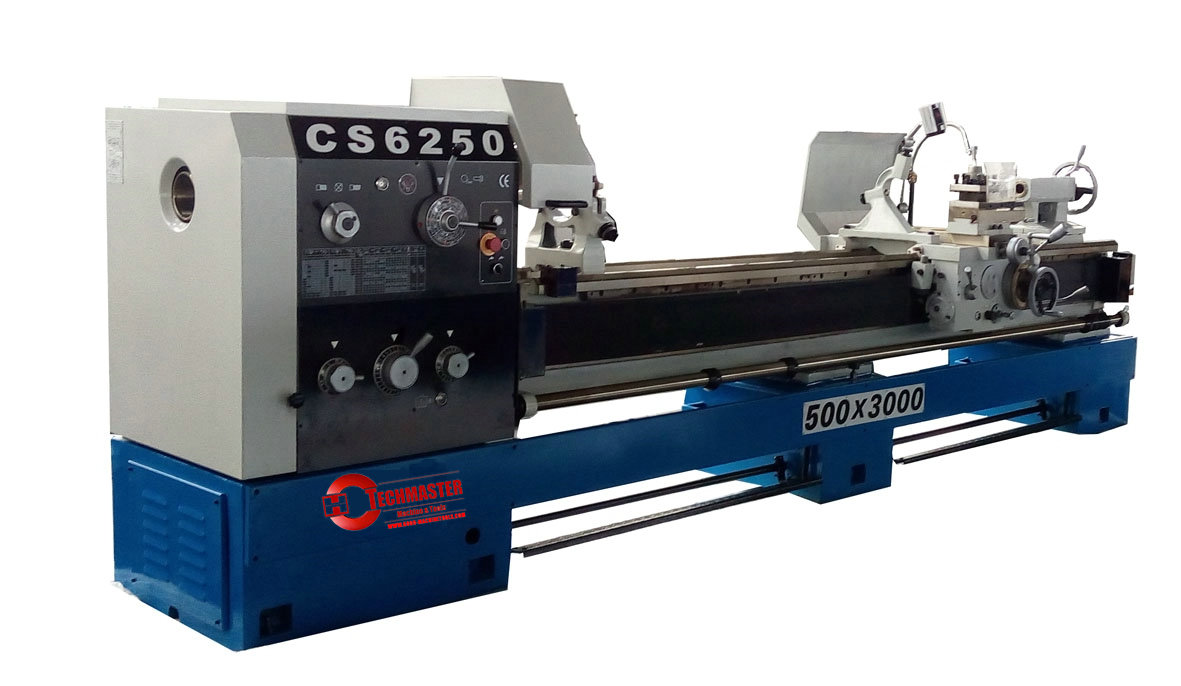

CS6250C
Quantity: The surtace of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.
Product Description
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D. P.;
-Perform drilling, boring and groove broaching;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).

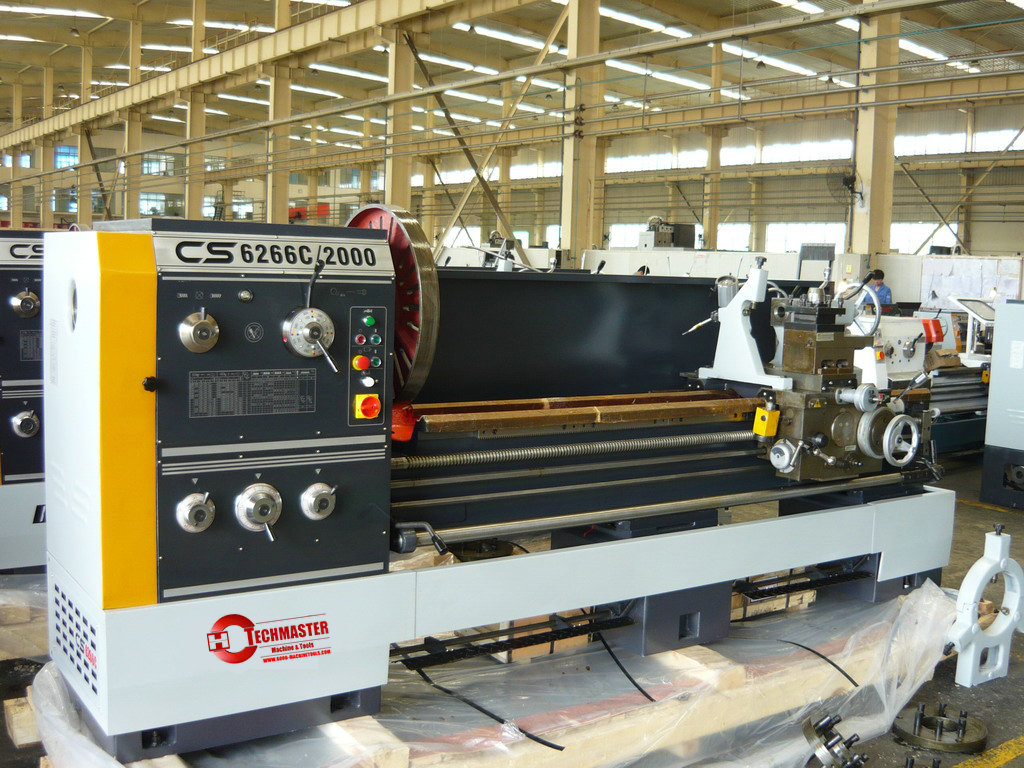

Parameter CS6250C CS6266C Capacity Max swing over bed mm φ500 φ660 Max swing in gap mm φ710 φ870 Effective length in gap mm 240 Max swing over slide mm φ300 φ420 Max workpiece length mm 1000/1500/2000/3000 Spindle Spindle thru-hole mm φ105 Spindle nose
ISO 702/II No.8 cam-lock type Spindle speeds r/min 12 step 36-1600 Spindle motor kW 7.5 Tailstock Quill dia./travel mm φ75/150 Taper of center MT 5 Tool post Number of station/Tool section
4/25X25 Feed Max X-axis travel mm 145 Max Z-axis travel mm 320 310 X-axis feed mm/r 65 sorts 0.027-1.07 Z-axis feed Z-axis feed mm/r 65 sorts 0.063-2.52 Metric thread mm 22 sorts 1-14 Inch thread t.p.i 25 sorts 28-2 Module thread πmm 18 sorts 0.5-7 DP thread t.p.i.π 24 sorts 56-4 Others Coolant pump motor kW 0.12 Machine length mm 2632/3132/3632/4632 Machine width mm 975 Machine height mm 1270 1450 Machine weight kg 2100/2300/2500/2900 2200/2400/2600/3000
The surtace of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length.
Product Description
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D. P.;
-Perform drilling, boring and groove broaching;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V, 380V, 420V) and different frequencies (50Hz, 60Hz).
Parameter CS6250C CS6266C Capacity Max swing over bed mm φ500 φ660 Max swing in gap mm φ710 φ870 Effective length in gap mm 240 Max swing over slide mm φ300 φ420 Max workpiece length mm 1000/1500/2000/3000 Spindle Spindle thru-hole mm φ105 Spindle nose
ISO 702/II No.8 cam-lock type Spindle speeds r/min 12 step 36-1600 Spindle motor kW 7.5 Tailstock Quill dia./travel mm φ75/150 Taper of center MT 5 Tool post Number of station/Tool section
4/25X25 Feed Max X-axis travel mm 145 Max Z-axis travel mm 320 310 X-axis feed mm/r 65 sorts 0.027-1.07 Z-axis feed Z-axis feed mm/r 65 sorts 0.063-2.52 Metric thread mm 22 sorts 1-14 Inch thread t.p.i 25 sorts 28-2 Module thread πmm 18 sorts 0.5-7 DP thread t.p.i.π 24 sorts 56-4 Others Coolant pump motor kW 0.12 Machine length mm 2632/3132/3632/4632 Machine width mm 975 Machine height mm 1270 1450 Machine weight kg 2100/2300/2500/2900 2200/2400/2600/3000
