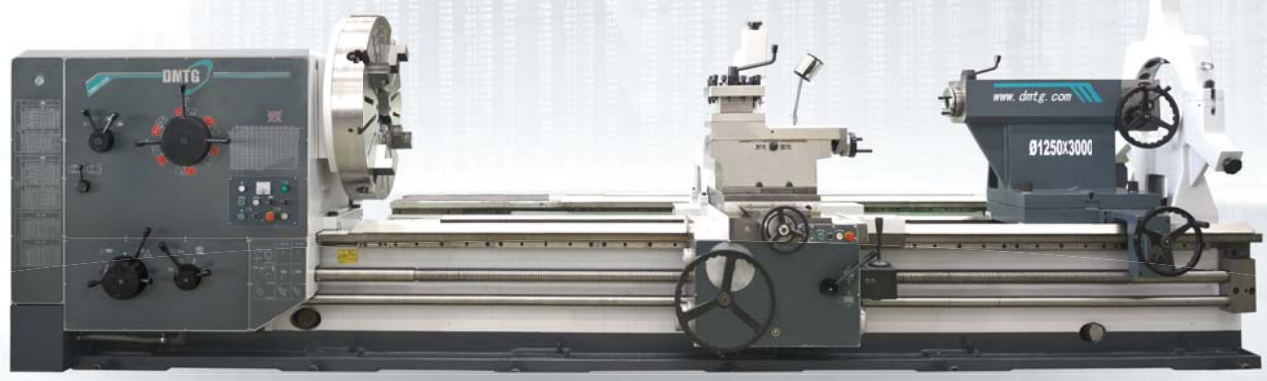

CW-M series large-scale conventional lathe
Quantity: The CDS-B/C series conventional lathes are general-purpose lathes developed by our company in collaboration with renowned global lathe manufacturing enterprises.
Application Field:
The CDS-B/C series conventional lathes, developed by our company in collaboration with renowned global lathe manufacturing enterprises, are user-friendly general-purpose lathes. They feature a popular angular flat design with spacious front and rear legs. The bed guide rails have undergone surface high-frequency quenching and grinding processes, achieving a quenching hardness of G50. The headstock gearbox has undergone high-frequency quenching of the gear teeth and precision gear grinding, with gear precision reaching levels 6 to 7. This machine can process materials such as steel, cast iron, non-ferrous metals, and non-metallic materials. Parts processed on this machine can achieve a dimensional accuracy of IT7 and a surface roughness of 1.6.
Machine Features:
1. Large Spindle Bore: B-type with 82mm, C-type with 105mm.
2. High Spindle Speed: The spindle system is dynamically balanced, allowing for high rotational speeds and comprehensive adaptability to tooling techniques.
3. High Rigidity: The main body of the machine tool is made entirely of resin-bonded high-phosphorus castings, and the structure of the main body of the machine tool is made more rational through finite element analysis and optimization.
4. Aging Treatment for Bed Body, High-Frequency Quenching for Guide Rails: Enhances the machine tool's longevity.
5. Precision Grinding for Bed Guide Rails: Ensures high precision along the entire length of the guide rails.
6. Vertical Lead Screw Equipped with Metal Protective Cover: Enhances the personal safety of operators.
7. Rapid Traverse Mechanism in Both Vertical and Horizontal Directions on the Carriage: Makes the operation of the machine tool more convenient and efficient for operators.-
CW61125M CW62125M/CW61140M/CW61160M
The CW-M series large-scale conventional lathe features a mature structure, high power, strong rigidity, and a wide range of spindle speed adjustments. It is suitable for heavy-duty or high-speed cutting, capable of completing various turning operations on shafts and disc-shaped parts, including inner and outer cylindrical surfaces, tapered surfaces, end faces, grooving, chamfering, drilling, tapping, and more. It can also handle commonly used metric threads, imperial threads, module threads, and pitch threads. When equipped with a taper attachment, it can handle commonly used taper threads, and for special threads, consultation is recommended. The compound movement of the longitudinal feed and the tool holder feed allows for the machining of long tapers, while the tool holder can be maneuvered for short tapers. This lathe demonstrates its superiority in machining large and complex parts.
Product model UNIT CW61100M CW62100M CW61125M CW62125M specification Max. swing diameter over bed mm Ø1000 Ø1250 Max.swing diameter over cross slide mm Ø630 Ø880 Max.swing diameter in gap mm — Ø1400 — Ø1650 Length in gap mm — 772 — 772 Max. workpiece length mm 1500/2000/3000/4000/5000/6000/(8000 CW61xxxM) Max. cutting length 1300/1800/2800/3800/4800/5800/(7800 CW61xxxM) Max. workpiece weight kg 6000(Opt: 8000 10000) Bed guideway width mm 755 Spindle spindle nose A2-15 Spindle bore mm Ø130 (allowed to pass through the bar diameter ≤Ø128) Chuck size mm Ø1000 Ø1000 Taper of spindle bore Metric 140(1:20)
(140mm,with No.6MT Reducing sleeve)Max.Spindle torque kNm 10.5 (22kW) Opt:12.5 (30 kW) Spindle speed ranges rpm 3.15-315*(21Speeds) (Reversal 4.5 〜390 12 Speeds) Spindle centre height mm 500 625 Spindle motor power kW 22 Opt:30 Tailstock Diameter of tailstock quill mm Ø160(Max. workpiece weight 6T);
Opt: Ø200(Max. workpiece weight 8T)
Ø240 (Max. workpiece weight 10T)Travel of tailstock quill mm 300 Taper of tailstock quill mm Metric 80(80mm ,With N0.6MT Reducing sleeve); (Ø200 x Ø240 No. 6 MT) Feeds&Threads (metric screw *inch screw) Longitudinal feed 0.1-12 mm/rpm (56 Kinds); *0.0032 ~ 0.40 in/rpm (56 Kinds) Cross feed 0.05-6 mm/rpm 56 Kinds; *0.0016 〜0.20 in/rpm (56 Kinds) Metric threads mm 1-120 (52 Kinds); *1-120 (52 Kinds) Modular threads mm 0.5-60 (46 Kinds); *0.5〜60 (46 Kinds) Inch threads TPI 1/4-30 (43 Kinds); *1/4〜30 (43 Kinds) Diametral pitch threads DP 1/2-60 (49 Kinds); *1/2-60 (49 Kinds) Tool post Tool shank size mm 45X45 Travel of top slide mm 300 machine dimensions
(L*W*H)mm 4450X1855X1890(1500)
4950X1855X1890(2000)
5950X1855X1890(3000)
6950X1855X1890(4000)
7950X1855X1890(5000)
8950X1855X1890(6000) 10950X1855X1890(8000)4450X1955X2015(1500)
4950X1955X2015(2000)
5950X1955X2015(3000)
6950X1955X2015(4000)
7950X1955X2015(5000)
8950X1955X2015(6000) 10950X1955X2015(8000)Machine weight kg 9650/10100/11000/
11900/12800/13700/1550010650/11100/12000/
12900/13800/14700/16500Standard configurations
4-Jaw chuck
Live&fixed center of tailstock
Tool post guard
Anchor bolt
Steady rest&Follow rest
(≥3000-Standard<3000mm-Option)
4-way tool post
Spindle center and center sleeve
Chuck guard
Standard toolkit & Oil gun
Optional
Thread dial
30kw spindle motor
Large-sized steady rest
Heady duty tailstock
Anti-ibration/Adjustable pads
Quick-change tool post
DRO
Electical tailstock
Roller device
(CWM)
