CW6163
Quantity: Characteristics: The lathes of this series are suitable for turning internal, external and cylindrical surfaces as well as other rotary surfaces. They can be used for turning different metric, inch, module and diametrical threads and can also be used for performing drilling, reaming and broaching oil grooves etc.
The roughness of the parts, which are finished by the lathe, are up to 3.2μm, the accuracy of the dimension can reach IT7.

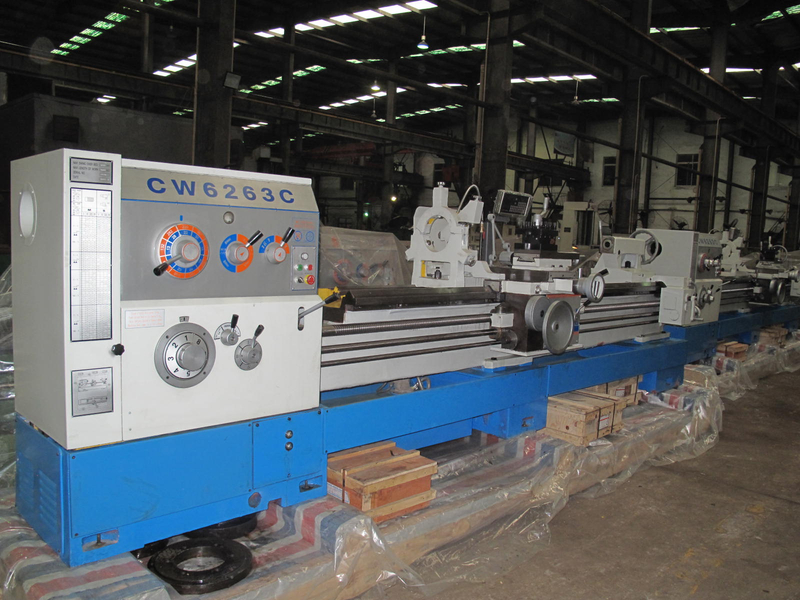

MAIN SPECIFICATION CW6163C CW6263C CW6173C CW6273C CW6183C CW6283C CW6193C CW6293C Max.Swing over bed 630mm 730mm 830mm 930mm Max. Swing in gap / 800mm / 900mm / 1000mm / 1100mm Max. Swing over cross slide 350mm 450mm 550mm 650mm Distance between centers 750,1000,1500, 2000, 3000, 4500, 6000mm Length in gap from face plate 300 Spindle nose C11 or D11 Spindle bore 105,130mm Spindle speeds 10-800/18rpm/steps Cross slide travel 480mm Top rest travel 225mm Rapid traverse of carriage Z:3200, X:1900 Quill diameter 90mm Quill travel 260mm Quill taper MT50 Bed width 550 Metric threads 1-240/53mm/kinds Inch threads 30-2/31tpi/kinds Module threads 0.25-60/46mm/kinds Diametral pitch threads 60-0.5/47Lpi/kinds Main motor power 11kw Packing size Length 3460,3390,3795,4330,5310,6810,8310mm Width 1400mm Heigth 2000mm
STANDARD ACCESSORIES：
325mm (130mm spindle bore size 380mm) 3-jaw Chuck, 500mm Four Jaw Chuck, Center, Center Sleeve, 800mm face plate, 200mm steady rest, 20-140mm Follow Rest, one set of Tools, Foundation bolt, Adjusting Pad
OPTIONAL ACCESSORIES：
Φ130 SPINDE BORE、ELECTRIC TURRET、ELECTRIC QUILL、TAPER TURNING ATTACHMENT.Characteristics: The lathes of this series are suitable for turning internal, external and cylindrical surfaces as well as other rotary surfaces. They can be used for turning different metric, inch, module and diametrical threads and can also be used for performing drilling, reaming and broaching oil grooves etc.
The roughness of the parts, which are finished by the lathe, are up to 3.2μm, the accuracy of the dimension can reach IT7.
MAIN SPECIFICATION CW6163C CW6263C CW6173C CW6273C CW6183C CW6283C CW6193C CW6293C Max.Swing over bed 630mm 730mm 830mm 930mm Max. Swing in gap / 800mm / 900mm / 1000mm / 1100mm Max. Swing over cross slide 350mm 450mm 550mm 650mm Distance between centers 750,1000,1500, 2000, 3000, 4500, 6000mm Length in gap from face plate 300 Spindle nose C11 or D11 Spindle bore 105,130mm Spindle speeds 10-800/18rpm/steps Cross slide travel 480mm Top rest travel 225mm Rapid traverse of carriage Z:3200, X:1900 Quill diameter 90mm Quill travel 260mm Quill taper MT50 Bed width 550 Metric threads 1-240/53mm/kinds Inch threads 30-2/31tpi/kinds Module threads 0.25-60/46mm/kinds Diametral pitch threads 60-0.5/47Lpi/kinds Main motor power 11kw Packing size Length 3460,3390,3795,4330,5310,6810,8310mm Width 1400mm Heigth 2000mm
STANDARD ACCESSORIES：
325mm (130mm spindle bore size 380mm) 3-jaw Chuck, 500mm Four Jaw Chuck, Center, Center Sleeve, 800mm face plate, 200mm steady rest, 20-140mm Follow Rest, one set of Tools, Foundation bolt, Adjusting Pad
OPTIONAL ACCESSORIES：
Φ130 SPINDE BORE、ELECTRIC TURRET、ELECTRIC QUILL、TAPER TURNING ATTACHMENT.
