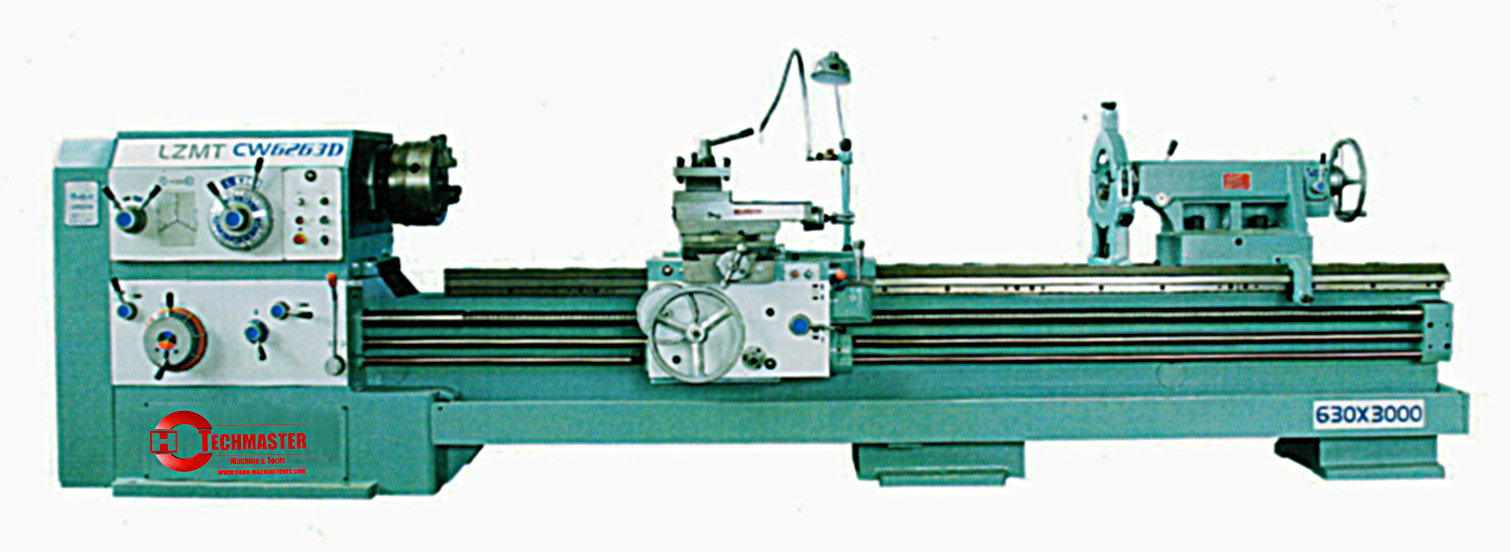

CW6263D
Quantity: Product DescriptionUNIVERSAL HORIZONTAL LATHE TURNER MASTER CQ62100
Features
Hardened and ground bed ways
D1-11 camlock spindle nose easy for chuck changing
Heavy duty spindle 105mm or 128mm
Multi-disc forward and reversing clutch for slow start up of heavy workpiece
Rapid feed in apron with separate motor
One-piece casting iron base for heavy duty
High-strength cast iron lathe solo whole bed body, casting use resin
Sand casting are close bake technology
Shift gears structure use on tailstock body.
C62163D AND CW62100D series lathe is factory new developped products based on many years production CW6163A, CW6163C series lathe experience, according customers different requiremetns of turning developped a new generation products.
There are four varieties of workpiece turning length from 0.75-12 m,
Metric, Imperial have thirty-eight kinds to be choose
This series of machine tools used machine repair, tools and manufacturers industrial production
Mainly used for various types of shafts, disc type, shaped like turning internal and external cylindrical surface, conical surface, the other rotating surface, turning face, and can cutting metric, inch, modulus, thread pitch
This lathe can also realize drilling, boring, reaming and broaching tank and so on.
Bed of high-strength cast iron base of the monolithic bed, resin sand casting are close bake technology, the use of variable speed tailstock body.Specification CW6263D CW6280D CW62100D CW62125D CW6185A CW61100A Max swing over bed 670mm 840mm 1000mm 1250mm 850mm 1030mm 1600mm Max swing over cross slide 390mm 560mm 720mm 970mm 520mm 720mm 118/0mm Max swing over gap 930mm 1100mm 1250mm 1510mm 1150mm 1350mm Valid lengthin gap 340mm 340mm
1500-16000 Width of bed 550mm optional: 600mm 600mm Max capacity of worktable 3t 4t Spindle hole & taper 120 or 140mm 120mm 120mm 160mm Spindle speeds 6-1100rpm or 6-800 rpm/18steps 6-800rpm/18 steps Manual operating 4 steps
(5-630r/min)Cross slide travel 420mm 580mm 695mm 600mm Center distance 750-12000mm 750/1500/2000/3000
/4000/5000/60003000/4000 /5000/6000mm Metric thread range 1-24mm/51kinds 50kinds1-240mm 56kinds 1-120mm Module thread range 0.5-120π m/53kinds 53kinds 0.5-120π m 56kinds 30-1/4" Diametrical thread range 30-1/8D. P/42kinds 42 kinds 30-1/8D. P 56kinds 60-0.5D. P Longitudinal feeds 0.04-24mm/72kinds 64kinds 0.1-24.3mm 64 kinds 0.08-9.6mm Cross feeds 0.02-12mmn/72kinds 64kinds 0.05-12mm 64kids 0.04-4.8mm Main drive motor 1.1kw(15kw optional) 15kw AC15kw AC18.5kw Packing size Length 2760/3510/3965 /5010/6010 2815/3515/4015/5015 /6160/7160/8160 5150mm 5150mm Width 1600mm 1395 1395 1500mm 1600mm Height 1565mm 1650mm 1725 1855 1500mm 1600mm Net weight NW: 3600/4300/5000/5800
/65007200/8000/11000
/13000/15000kg3600/4300/5000/5800
/6500/7200/8000kgs
