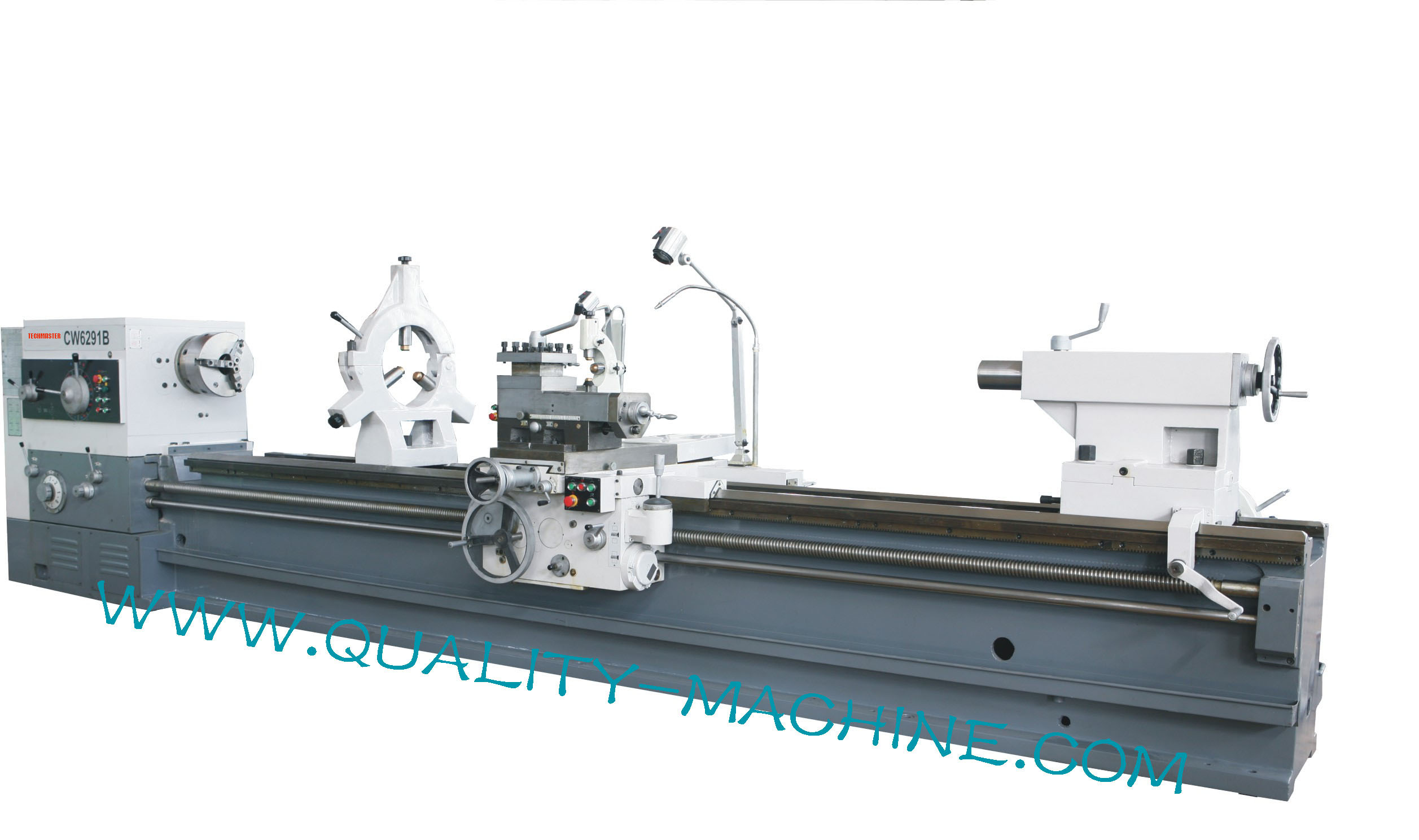

CW6291B-CW62110B
Quantity: Features
Taper turning attachment fitted to saddle (optional)
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Hydraulic forward and reversing clutch mechanism with auto braking system
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.0m/min
600mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 1000mm
Powered longitudinal and cross feeds
Powered compound slide
Metric calibrated dials
Coolant system with flexible hose enabling operator to manipulate flow direction
Lubrication pump on saddle oiling slides
Oil sight glass for head stock and gearbox & apron
Slide out swarf trays accessible from rear of machine
Low voltage halogen work light
Rack & pinion mechanism assists tail stock movement
D1-11 camlock spindle for quick chuck removal
Adjustable levelling pads
18 spindle speeds 5.4.5-800rpm
Large 130mm spindle bore
15kW / 20HP main motor
12 months warranty
Standard Accessories
Taper turning attachment (optioanl)
380mm 3-jaw chuck with reversing jaws
500mm 4-jaw chuck
800mm Faceplate
20-130mm Follow Rest
40-350mm Steady Rest
Fixed and travelling steadies with roller fingers
Thread chasing dial
Dead centres
Spindle reducing bushSpecifications CODE CW6291B/CW62100B/CW62110B DIGITAL READOUT SYSTEM FITTED Optional QUICK CHANGE TOOLPOST FITTED Optional LEADSCREW COVERS FITTED ~ TOOL TO SUIT 30mm DISTANCE BETWEEN CENTRES 1500mm; 2000mm; 3000mm; 4000mm; 5000mm SWING OVER BED 910mm/1000mm/1100mm SWING OVER GAP 1100mm/1200mm/1300mm SWING OVER CROSS-SLIDE 600mm SPINDLE BORE 104mm(130mm is optional) CAMLOCK SPINDLE SIZE D1-11 BED WIDTH 600mm HEAD STOCK SPINDLE TAPER 1-20, 120mm TAIL STOCK TAPER 5MT CROSS SLIDE TRAVEL 520mm COMPOUND SLIDE TRAVEL 200mm LEAD SCREW Metric NUMBER OF CROSS FEED 64 /half of logitudinal feeds LONGITUDINAL FEED 0.1--1.52r/min (1: 1)
1.6-24.3r/min(16: 1)
METRIC THREAD RANGE 50 (1-240mm) IMPERIAL THREAD RANGE 26 (1-14TPI) 3 JAW CHUCK ø 325mm 4 JAW CHUCK ø 500mm SPINDLE STEPS/SPEEDS 18 (5.4 - 720rpm) MOTOR POWER 15kW / 20HP VOLTAGE optional WEIGHT (Nett) 7900Kg(CW62100B)
