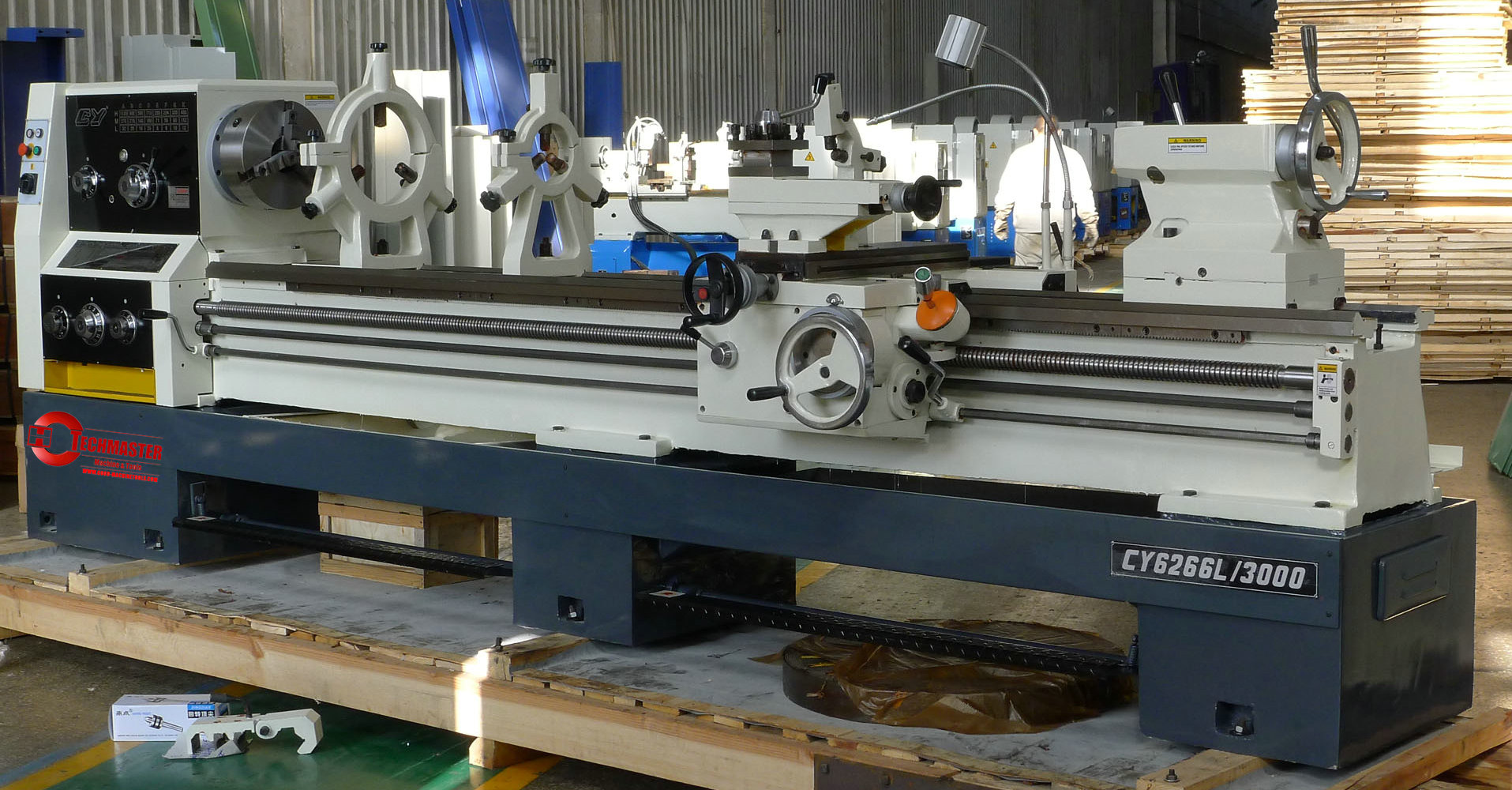

CY6266BL
Quantity: Lathe Features
★ High rigidity spindle system, with absolute temperature rising no higher than 35℃.
★ The headstock, gear-box, apron and bed-ways are made of high quality cast iron, and are all cast with the resin sand foundry technology. The bed ways are induction-hardened, with hardness around HRC 55.
★ The spindle supported by 3-pointed high-precision bearings and all gears in headstock are precisely grinded, the spindle turns smoothly at high speed.
★ Rapid feed system to improve efficiency. Wide range of feed and pitch are available without changing gears.
★ When rapid feeding is on, the tool slide longitudinal travel handwheel will be automatically disfunctioned.
★ Reliable safety devices such as footbrake and emergency power-off switch are assembled. Adjustable overload protection device is also installed in the feed system.
★ The tool post adopts the structure of ratchet pawl, and can be relocked by turning the lever for just half a lap.
★ Tailstock are equipped with double-locked mechanism, smooth and effortless movement is ensured by the elastic scroll devices underneath.
★ With capacity of swing over bed 660mm, swing in gap 830mm, distance between centers 1000 – 5000mm, this lathe covers wide range of working pieces.
SPECIFICATION CY-6250L CY-6266L Swing over bed 500mm 660mm Swing over cross slide 300mm 430mm Swing in gap 710mm(4m&5m no gap) 870mm(4m&5m no gap) Width of gap 240mm(4m&5m no gap) 240mm(4m&5m no gap) Width of bed 390mm 390mm Length of work piece (max) 750/1000/1500/2000/3000/4000/5000mm Spindle nose D8 D8 Taper of spindle center 1:20 1:20 Spindle bore diameter 105MM 105MM Spindle speed 6-1120rmp(24 steps) 6-1120rmp(24 steps) Max. output torque of spindle 1500N.m 1500N.m Range of longitudinal feed 0.063-6.43mm/rev(0.0025-0.25in/rev) 0.063-6.43mm/rev(0.0025-0.25in/rev) Range of transverse feed 0.027-2.73mm/rev(0.00106-0.107in/rev) 0.027-2.73mm/rev(0.00106-0.107in/rev) Lead screw pitch 12mm(metric system) 2TPI (inch system) 12mm(metric system) 2TPI (inch system) Metric threads 1-224mm(46 pitches) 1-224mm(46 pitches) Inch threads 28-1/8TPI (42 pitches) 28-1/8TPI (42 pitches) Module threads 0.5-112mm(42 pitches) 0.5-112mm(42 pitches) Diameter pitch threads 56-1/4DP (45 pitches) 56-1/4DP (45 pitches) Cross slide travel(max.) 320mm 360mm Top slide travel (max.) 150mm 190mm Section specification of tool post 25x25mm 25x25mm Longitudinal rapid traveling speed 4.5m/min (50HZ) 5.4m/min (60HZ) 4.5m/min (50HZ) 5.4m/min (60HZ) Transversal rapid traveling speed 1.9mm/min(50HZ) 2.3m/min(60HZ) 1.9mm/min(50HZ) 2.3m/min(60HZ) Morse taper of tailstock center M5 M5 Max. travel of tailstock quill 150mm 150mm Tailstock quill diameter 75mm 75mm Main motor 11kw 11kw Rapid travel motor 250w 1360rpm 250w 1360rpm coolant pump motor 90w 25L/min 90w 25L/min
Standard accessories:
steady rest, follow rest, 3-jaw chuck, 4-jaw chuck，face plate，drive plate，thread chasing dial, live center, center, foot brake, full set illumination system, full set coolant system, full set wrenches and screw drivers.
Optional accessories:
Taper turning attachment, Quick change tool post, DRO, CE configuration
CARACTERISTICAS TECNICAS
★ SISTEMA DE HUSILLO DE ALTA RIGIDEZ,CON SUBA DE TEMPERATURA NO MAYOR A 35 C
★EL CABEZAL,CAJA DE ENGRANAJES,DELANTAL Y GUIAS DE BANCADA ESTAN HECHOS DE FUNDICION DE HIERRO DE ALTA CALIDAD,TODOS TEMPLADOS CON LA MAS AVANZADA TECNOLOGIA
★EL HUSILLO QUE APOYA SOBRE RODAMIENTOS DE ALTA PRECISION DE 3 PUNTOS Y TODOS LOS ENGRANAJES EN EL CABEZAL TIENEN RECTIFICADO DE PRECISION, POR LO QUE EL HUSILLO GIRA SUAVEMENTE A ALTA VELOCIDAD.
★SISTEMA DE AVANCE RAPIDO PARA MEJORAR LA EFICIENCIA, AMPLIO RANGO DE AVANCES Y PASOS.
★CUANDO SE USA EL AVANCE RAPIDO, EL VOLANTE DE RECORRIDO LONGITUDINAL DE LA TORRETA DESLIZABLE DEJA DE FUNCIONAL AUTOMATICAMENTE.
★EQUIPADO CON DISPOSITIVOS CONFIABLES DE SEGURIDAD, TALES COMO FRENO DE PIE Y FICHA DE PARADA DE EMERGENCIA. DISPOSITIVO DE PROTECCION POR SOBRECARGA AJUSTABLE INSTALADO EN EL SISTEMA DE AVANCE.
★LA TORRETA PUEDE SER REBLOQUEADA MOVIENDO LA PALANCA A UN MEDIO GIRO.
★CONTRAPUNTA EQUIPADA CON MECANISMO DE DOBLE BLOQUEO,ASEGURANDO MOVIMIENTO SUAVE Y SIN ESFUERZO POR LA ELASTICIDAD DE LOS DISPOSITIVOS.
★ CON CAPACIDAD DE VOLTEO SOBRE B ANCADA DE 660MM, EN ESCOTE DE 830MM, DISTANCIA ENTRE PUNTAS DE 1000-5000MM., ESTE TORN CUBRE AMPLIO RANGO DE MECANIZADO DE PIEZAS
SPECIFICATION CY-6250L CY-6266L VOLTEO SOBRE BANCADA 500mm 660mm SOBRE CARRO TRANSVERSAL 300mm 430mm SOBRE EL ESCOTE 710mm(4m&5m no gap) 870mm(4m&5m no gap) ANCHO DEL ESCOTE 240mm(4m&5m no gap) 240mm(4m&5m no gap) ANCHO DE LA BANCADA 390mm 390mm LARGO MAXIMO DE LA PIEZA 750/1000/1500/2000/3000/4000/5000mm NARIZ DEL HUSILLO D8 D8 CONO CENTRO HUSILLO 1:20 1:20 DIAMETRO DEL HUSILLO 105MM 105MM VELOCIDADES DEL HUSILLO 6-1120rmp(24 pasos) 6-1120rmp(24 pasos) Maximo torque de salida del husillo 1500N.m 1500N.m Rango avances longitudinales 0.063-6.43mm/rev
(0.0025-0.25pulg/rev)0.063-6.43mm/rev
(0.0025-0.25pulg/rev)Rango avances transversales 0.027-2.73mm/rev
(0.00106-0.107pulg/rev)0.027-2.73mm/rev
(0.00106-0.107pulg/rev)Paso del tornillo patron 12mm(metrico)
2TPI (en pulgadas)12mm(metrico)
2TPI (en pulgadas)Roscas metricas 1-224mm(46 pasos) 1-224mm(46 pasos) Roscas en pulgadas 28-1/8TPI (42 pasos) 28-1/8TPI (42 pasos) Roscas modulo 0.5-112mm(42 pasos) 0.5-112mm(42 pasos) Roscas diametral pitch 56-1/4DP (45 pasos) 56-1/4DP (45 pasos) Recorrido carro transversal(max.) 320mm 360mm Recorrido carro superior (max.) 150mm 190mm torreta 25x25mm 25x25mm velocidad recorrido rapido longitudinal 4.5m/min (50HZ)
5.4m/min (60HZ)4.5m/min (50HZ)
5.4m/min (60HZ)Velocidad recorrido rapido transversal 1.9mm/min(50HZ) 2.3m/min(60HZ) 1.9mm/min(50HZ) 2.3m/min(60HZ) Cono morse de la contrapunta M5 M5 Max. Recorrido contrapunta 150mm 150mm Diametro contrapunta 75mm 75mm Motor principal 15hp 15hp Motor recorrido rapido 250w 1360rpm 250w 1360rpm Motor bomba refrigerante 90w 25L/min 90w 25L/min
ACCESORIOS STANDARD
LUNETA FIJA,LUNETA MOVIL,PLATO DE 3 MORDAZAS, PLATO DE 4 MORDAZAS, PLATO LISO,PLATO DE ARRASTRE,RELOJ CUENTA FILETES,PUNTOS FIJO Y GIRATORIO,FRENO DE PIE,SISTEMA COMPLETO DE ILUMINACION,SISTEMA COMPLETO DE REFRIGERACION,SET COMPLETO DE HERRAMIENTAS Y DESTORNILLADORES.
ACCESORIOS OPCIONALES
COPIADOR DE CONOS,TORRE PORTAHERRAMIENTAS DE CAMBIO RAPIDO,LECTOR DIGITAL,CONFIGURACION PARA COMUNIDAD EUROPEA
