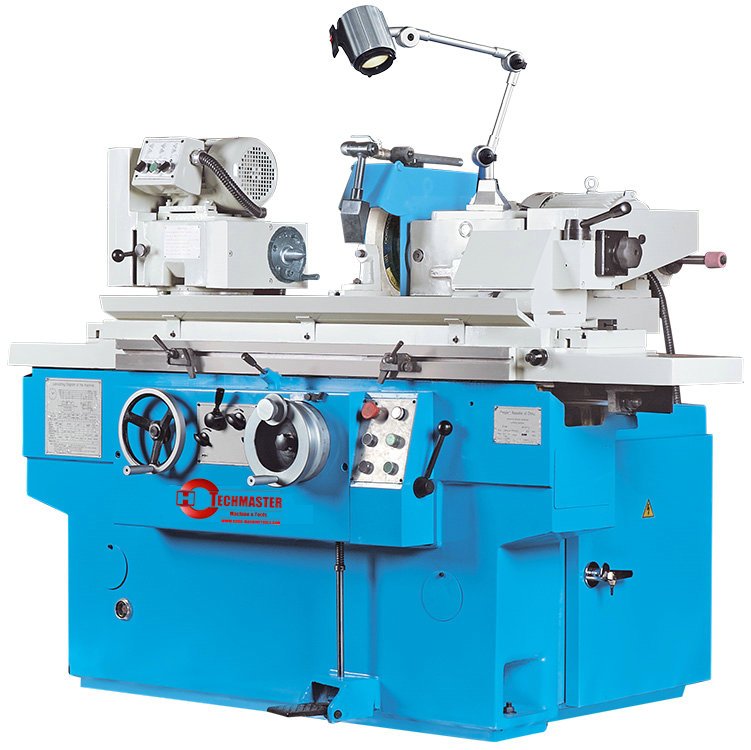

CYLINDRICAL GRINDER M1320H
Quantity: -
M1320H X500 // M1320HX800
Features:
High precision, high rigidity, high effeciency
Suitable for grinding cylindrical, conical shape internal, external and end face of various middle and small size workpiece.
Item Unit M1320H×500 M1320H×800 External grinding dia. mm Φ8~200 Center height mm 135 Max. travel of table mm 650 950 Hydraulic moving speed m/min 0.1~4 Max. workpiece weight kg 50 External grinding length mm 500 800 Swivel range of worktable deg -5°~ +9° -3°~ +7° Max. peripheral speed of grinding wheel m/s 38 External wheel size mm max:Φ400×50×Φ203 min:Φ280×50×Φ203 Workhead tailstock quill taper / MT4# Total power kw 5.625 Overall dimensions(L×W×H) mm 2500×1600×1500 3000×1600×1500 Weight kg 2500 3000
Working Accuracy:
O.D. Roundness: 1.5μm
Uniformity of dia. In longitudinal section: 5μm
Surface roughness:Ra0.32μm
Standard Accessories:
Coolant tank
Grinding wheel dresser
Wheel balancing mandrel
Driving dog
Carbide-tipped center
Supportiron
Open type steady rest
Wheel flange
Optional Accessories:
Wheel balancing stand
Radius dresser
