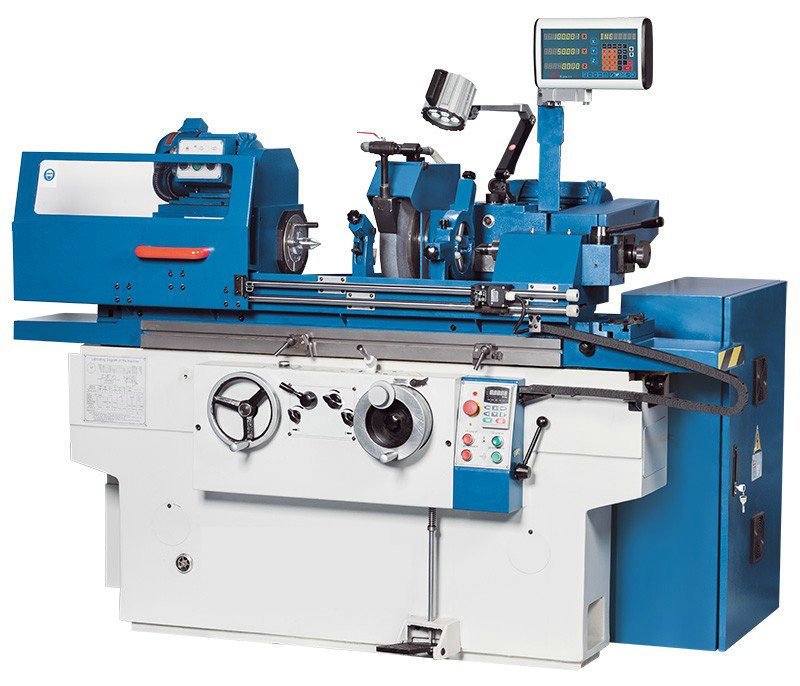

CYLINDRICAL GRINDER M1408BX300

Quantity:
  • M1408BX300

MAIN FEATURES:

1.Table can be tilted for conical grinding operations and scale allows adjustment to desired position

2.Spindle stock can be swivelled 180 degree for inside grinding operations

3.Main spindle is mounted hydro-dynamically – oil film prevents contact between spindle and bearing

4.Longitudinal table guide and grinding spindle stock cross guide feature V- and flat guiding each

5.Strong reinforcements and generously designed walls make the machine base resistant to temperature fluctuations and deformations

6.Oil film between spindle and bearing reduces the vibrations to a minimum to achieve top results and high accuracy

7.Stepless feed adjustment with selective programmable stop at end of each table movement

8.Precisely adjusted spindle head and solid grinding spindle stock to achieve top processing results at various grinding operations

9.Precisely polished and manually finished guideways in x- and y-axis

10.Hydraulic or manual resetting of grinding spindle stock

11.Longitudinal movement of table is either manually by handwheel or automatically by hydraulic feed

12.Grinding spindle features bearings on both sides and adjustable sliding flat grids





Technical specifications:


Specification   unit M1408*300
External grinding diameters mm φ2~80
Internal grinding diameters mm φ10~60
Center height mm 115
Max. worktable traverse mm 340
Hydraulic travel speed m/min 0.1~4
Max.workpiece weight kg 10
Grinding length External/Internal mm 300/125
Swivel range of worktable °   -3~+7°
Max.wheel peripheral speed m/s 35
External wheel size mm Max.φ250x25xφ75 Minφ180x25xφ75
Internal wheel spindle rotating-speed r/min 16000
Headstock and tailstock center morse NO.3
Total motor power kw 2.34
Machine overall dimension(LxWxH) mm 1360x1240x1000
Machine weight kg 1500
Working Accuracy
Roundness(O.D/I.D) 1.5/2.5μm(O.D/I.D)
Uniformity of dia.in longitudinal section(O.D/I.D) 5/8μm(O.D/I.D)
Surface roughness(O.D/I.D) Ra0.32/0.63μm(O.D/I.D)
Mail Accessories
Coolant tank set 1
Grinding wheel dresser set 1
Wheel hub set 2
Wheel balancing mandrel set 1
Internal grinding tool set 1
3-claw chuck set 1
Open-type steady-rest set 1
Driving dog set 1
Carbide-tipped center pcs 2
Leveling wedge pcs 3
Quill shaft for internal grinding set 2
Chuck base pcs 1
Special Accessories
Radius dresser set 1
Close-type steady- rest set 1
Wheel balancing stand set 1
