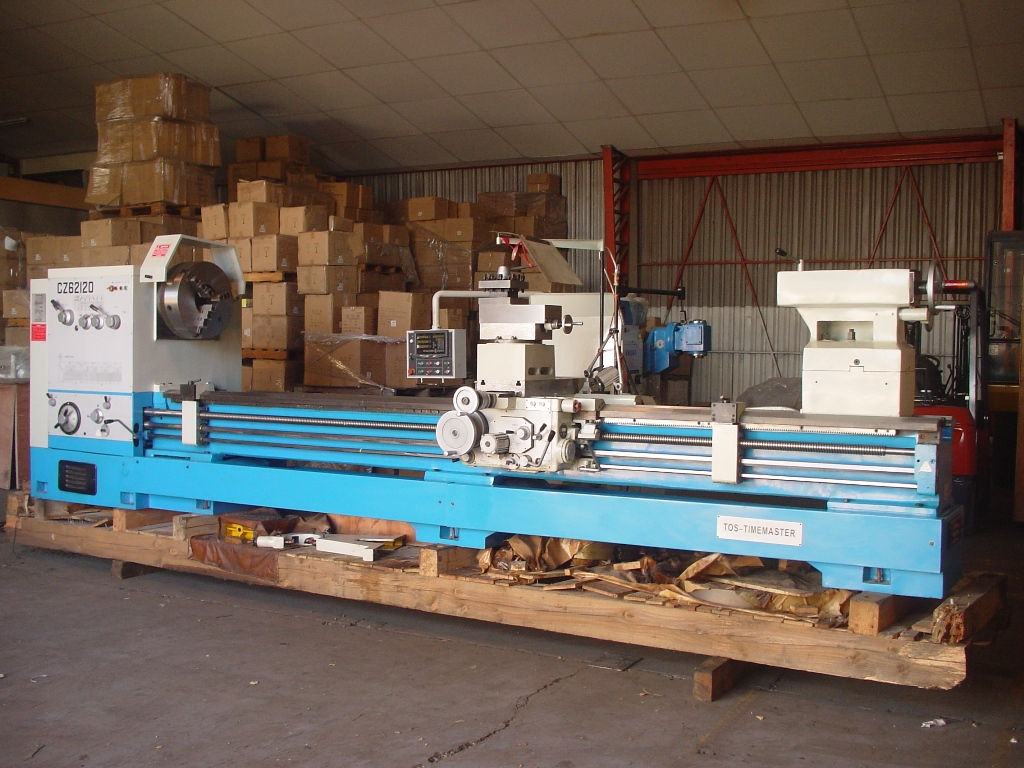

CZ62120
Quantity: tem Unit CZ6280 CZ6210 CZ62120 CZ612 80C CZ612 100C CZ612 120C Max.swing over bed mm 800 1000 1200 800 1000 1200 Max.swing over car riage mm 485 685 685 485 685 685 Center distance mm 1000,1500,2000,3000,4000,5000,6000,8000,10000 1000,1500,2000,3000,4000,5000,6000,8000,10000 Max.swing over gap mm 1000 1200 1400 1000 1200 1400 Valid length of gap mm 300 300 300 300 300 300 Bed width mm 510 550 Spindle hole mm 105/130 105/130 Spindle nose
C-11 or D-11 C-11 or D-11 Spindle taper
1:20 1:20 Spindle speeds(Number) rmp 14-750(18 steps) 14-750(18 steps) Metric threads range (kinds) mm 1-240(54 kinds) 1-240(54 kinds) Inch threads range(kinds) inch 28-1(37 kinds) 28-1(36 kinds) Module threads range(kinds) D.P 0.5-60(27 kinds) 0.5-60(27 kinds) Diametrical threads range(kinds) T.P,I 30-1(27 kinds) 30-1(27 kinds) Longitudinal feeds range(kinds) mm/rev 0.05-22.8(72 kinds) 0.05-22.8(72 kinds) Cross feed range(kinds) mm/rev 0.015-7.6(72 kinds) 0.015-7.6(72 kinds) Rapid feed:Long/Cross m/min 6/2 6/2 Leadscrew size:Diameter/Pitch mm T48/12 T48/12 T48/12 T48/12 Cross slide travel mm 420 420 420 420 Compound rest travel mm 240 240 240 200 Size of tool shank mm 32x32 32x32 32x32 32x32 Spindle diameter mm 100 100 100 100 120 120 Spindle taper
Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6 Spindle travel mm 205 205 205 205 Main drive motor kw 11 11 11 11 Coolant pump motor kw 0.09 0.09 0.09 0.09 Rapid feed motor kw 0.18 0.18 0.18 0.18 Net weight Genter distance☹1500mm) kw 4500 5000 5500 4500 5000 5500 Packing size genter sidtance☹1500mm) ( L x W x H) mm 3452x1326x1390 3452x1326x1390
