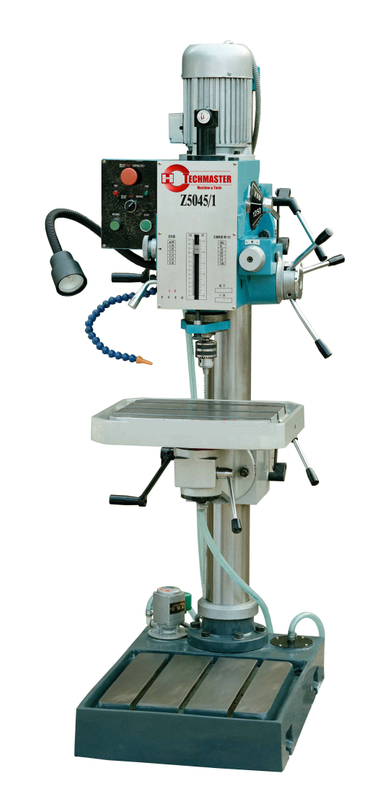

Column Drill and Mill Z5045-1
Quantity: -
Z5045-1
Z5045-1
drilling, milling and tapping.SpecificationSpecificationsZ5032/1Z5040/1Z5045/1Max.drilling dia.32mm40mm45mmSpindle taperM.T.3 or R8M.T.4M.T.4Spindle travel130mm130mm130mmStep of speed666Range of spindle speed 50Hz80-1250 r.p.m80-1250 r.p.m80-1250 r.p.m60Hz95-1500 r.p.m95-1500 r.p.m95-1500 r.p.mStep of spindle auto-feeding666Range of spindle auto-feeding amount0.06-0.30mm/r0.06-0.30mm/r0.06-0.30mm/rMin.distance from spindle axis to column290mm290mm290mmMax.distance from spindle nose to worktable725mm725mm725mmMax.distance from spindle nose to stand table1125mm1125mm1125mmMax.travel of headstock250mm250mm250mmSwivel angle of headstock(horizontal)360°360°360°Max.travel of worktable bracket600mm600mm600mmWorktable size of avaliability380×300mm380×300mm380×300mmSwivel angle of table horizontally360°360°360°Table leaned±45°±45°±45°Size of stand worktable of avaliability417×416mm417×416mm417×416mmMotor power0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)speed of motor1400 r.p.m1400 r.p.m1400 r.p.mCooling pump power0.04KW0.04KW0.04KWNet weight/Gross weight437kg/487kg442kg/492kg442kg/492kgPacking size1850×750×1000mm1850×750×1000mm1850×750×1000mm- Headstock and worktable up and down perpendicularly
- Head swivels 360° horizontally
- Gear driven, lower noise
- Positive spindle lock
Z5045-1
drilling, milling and tapping.SpecificationSpecificationsZ5032/1Z5040/1Z5045/1Max.drilling dia.32mm40mm45mmSpindle taperM.T.3 or R8M.T.4M.T.4Spindle travel130mm130mm130mmStep of speed666Range of spindle speed 50Hz80-1250 r.p.m80-1250 r.p.m80-1250 r.p.m60Hz95-1500 r.p.m95-1500 r.p.m95-1500 r.p.mStep of spindle auto-feeding666Range of spindle auto-feeding amount0.06-0.30mm/r0.06-0.30mm/r0.06-0.30mm/rMin.distance from spindle axis to column290mm290mm290mmMax.distance from spindle nose to worktable725mm725mm725mmMax.distance from spindle nose to stand table1125mm1125mm1125mmMax.travel of headstock250mm250mm250mmSwivel angle of headstock(horizontal)360°360°360°Max.travel of worktable bracket600mm600mm600mmWorktable size of avaliability380×300mm380×300mm380×300mmSwivel angle of table horizontally360°360°360°Table leaned±45°±45°±45°Size of stand worktable of avaliability417×416mm417×416mm417×416mmMotor power0.75KW(1HP)1.1KW(1.5HP)1.5KW(2HP)speed of motor1400 r.p.m1400 r.p.m1400 r.p.mCooling pump power0.04KW0.04KW0.04KWNet weight/Gross weight437kg/487kg442kg/492kg442kg/492kgPacking size1850×750×1000mm1850×750×1000mm1850×750×1000mm- Headstock and worktable up and down perpendicularly
- Head swivels 360° horizontally
- Gear driven, lower noise
- Positive spindle lock
