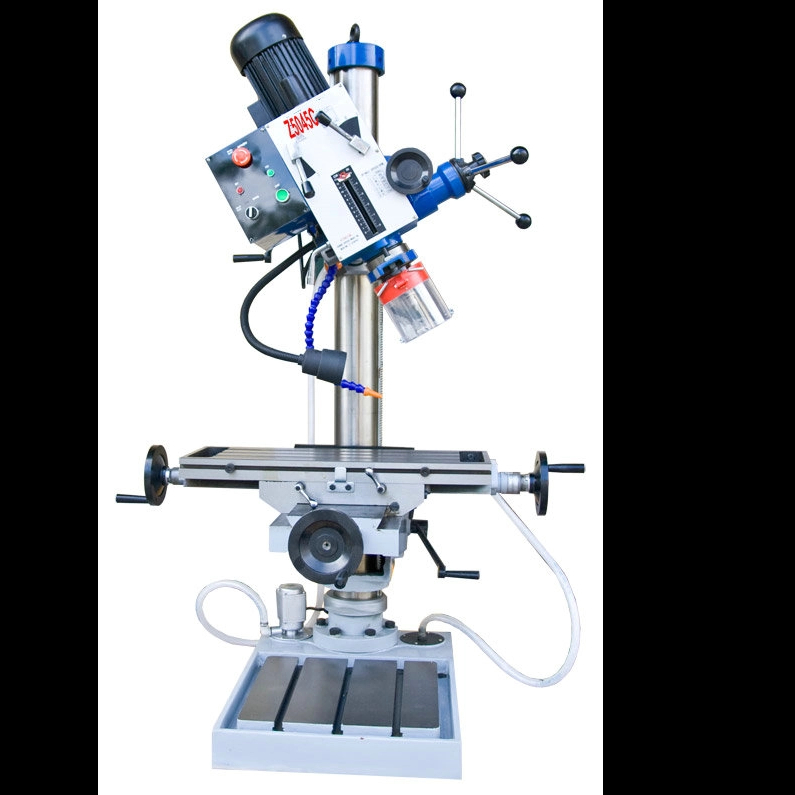

Column Drill and Mill Z5045C
Quantity: -
Z5045C
Z5045C
drilling, milling and tapping.Max.drilling capacity Φ45mm Spindle taper MT3/MT4/R8 Spindle travel Φ130mm Step of spindle speed 6 steps Range of spindle speed 50Hz 80-1250rpm 60Hz 95-1500rpm Step of spindle auto-feeding / Range of spindle auto-feeding amount / Min.distance from spindle axis to column 290mm Max.distance from spindle nose to worktable 700mm Max.distance from spindle nose to stand table 1125mm Max.travel of headstock Φ250mm Swivel angle of headstock(horizontal/vertical) 360° Max.travel of worktable bracket Φ600mm Worktable size of avaliablity 730×210mm Swivel angle of table horizontally 360° Table leaned / Size of stand worktable of avaliability 417×416mm Motor Power 0.75kw/1.1kw/1.5kw Speed of motor 1400rpm N.W/G.W 470/530kgs Packing size 1850×950×1000mm Loading amount/20″ container 12pcs - Headstock and worktable up and down perpendicularly
- Head swivels 360° horizontally
- Gear driven, lower noise
- Positive spindle lock
