Product Feature

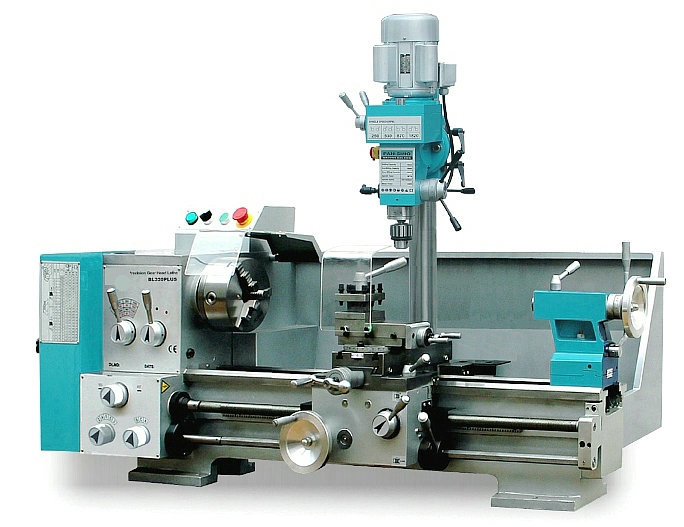

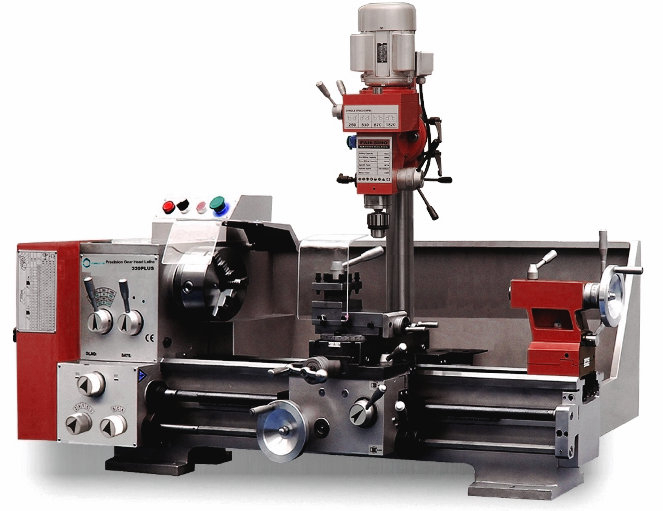

A precision and high quality and combinated turning, drilling, milling, boring and slotting in one. This is the machine for the most serious hobbyist or even a busy but crowded job shop. Its easy operation and to meet the various mechanical engineer requirements. This is an exceptional value and will make a great addition to any shop.
All metal gear headstock for lathe
Two ‘V’ guidway and gears are hardended and precision ground
Power longitudinal and cross feed
Mill/Drill headstock driven by a variable spindle speed from 0 – 2250rpm
Dovetail column
DRO on spindle digital spindle speed
Fine feed head control
2 speed gearbox for selecting low and high speed range
Head tilts up to±90º on left and right
Positive locks Mill/Drill head, quill and column
Elevating Mill/Drill headstock by handwheel easliy
Product Specifications
| Model | MP330G PLUS |
| Lathe | |
| Swing over bed | 330mm |
| Swing over carriage | 160mm |
| Distance between centers | 915mm |
| Available working length | 900mm |
| Wide of guideway | 160mm |
| Spindle bore | 38mm |
| Spindle taper | MT5 |
| Spindle speed | 12 / 65-1650rpm |
| Tool post travel | 100mm |
| Cross travel | 160mm |
| Range of longitudinal feeding | 0.087-2.049mm/r |
| Range of cross feeding | 0.019-0.444mm/r |
| Metric threads | 12 / 0.25-6mm |
| Inch threads | 17 / 4-96TPI |
| Tailstock sleeve treval | 80mm |
| Taper of tailstock sleeve | MT3 |
| Motor power | 1.5KW(2HP) |
| Milling/Drilling | Gear Drive |
| Max. drilling capacity | 16mm |
| Max. facing milling capacity | 63mm |
| Max. end milling capacity | 20mm |
| Spindle speed | 4 / 190-2000rpm |
| Spindle taper | MT3 |
| Spindle travel | 180mm |
| Distance from spindle nose to table | 225mm |
| Distance from spindle centre to column | 220mm |
| Headstock tilts in left/right | ±90º |
| Motor power | 550W |
| Machine weight | 475kg |
| Dimensions | 1600x780x1170mm |
Standard Accessories
Optional Accessories By Extral Cost：
