Common CNC Lathe Model:NL504SA
Quantity: -

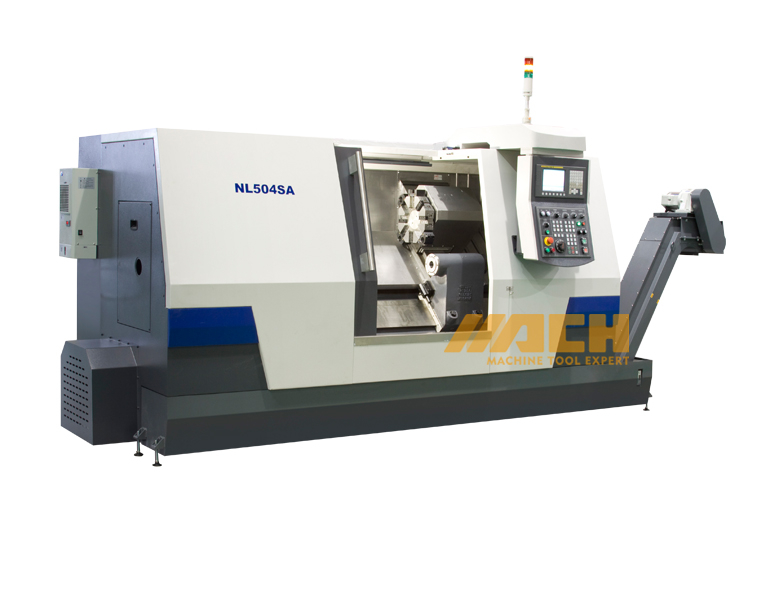

Common CNC Lathe Model:NL504SA
MAIN FEATURES

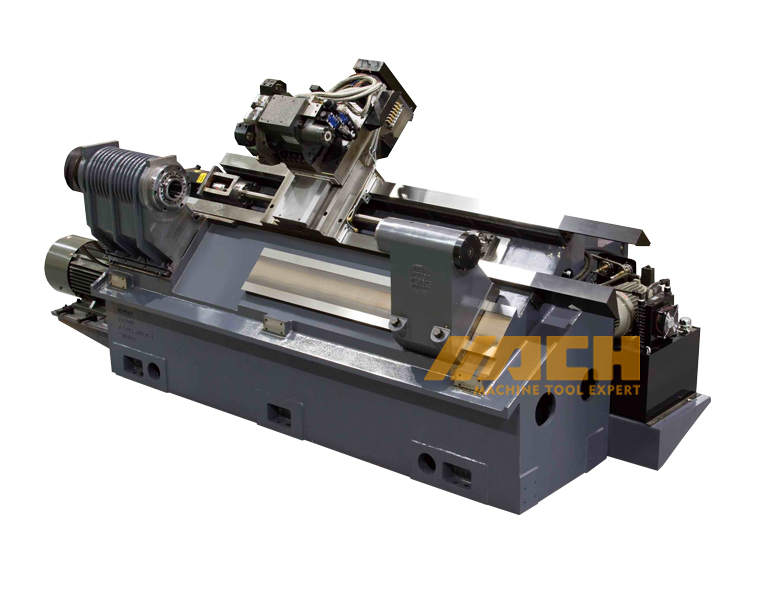

1.Slant bed,hgih rigidity crawl free.
2.Imported spindle bearing reasonal span.
3.FANUC system servo motor.
4.Machanic electric and hydraulic automation.
5.Max.work piece length:500mm.
6.Max.work Dia:500mm Hydraulic tailstock Hydraulic/electric turret 8/10.
Item Unit Parameters Remarks Machining ranges Max. swing over bed/ saddle mm Φ505/Φ340
Max. machining diameter mm Φ500
Max. machining length mm 1000
Dia. of through spindle hole mm Φ65
Travel X-axis mm 250
Z-axis mm 1100
Spindle Output power kw 11kw/15kw
The form of spindle end
A2-6
Spindle speed rpm 50-3000
Chuck inch 10” solid Tail Dia./travel of the sleeve mm 100/100
stock Mandrel taper hole
Morse 5#
Feed speed Rapid feed speed(X-axis) m/min 8
Rapid feed speed(Z-axis) m/min 12
Cutting feed rate mm/min 1~8000
Carriage No. of tool stations Station 8
Tool indexing time Second/ 0.5
Station Size of lathe tool mm 25′25
Max. diameter of boring bar mm 40
precision Positioning accuracy (X-axis) mm 0.012
Positioning accuracy (Z-axis) mm 0.016
Repeatability(X-axis) mm 0.006
Repeatability(Z-axis) mm 0.008
Others Power capacity kV A 20
Cooling tank capacity L 300
Dimension(length ×width ×height) mm 4600×1770×1900
Net weight kg 4500
STANDARD ACCESSORIES
FANUC 0i -mate-TD CNC system FANUC
Spindle motor SFC (Shanghai)
Spindle bearing NSK(Japan)
Ball screw HIWIN (Taiwan)
Hydraulic chuck and oil cylinder Jinchuan(China)
Hydraulic turret Yaxing (China)
Chip conveyor China
Parallel connection belt GATES(US)Lubricating system BIJUR (China)
Hydraulic system SEVEN OCEAN/COMPASS
Transducer TOYO(Japan)
Electric cabinet air-conditioner China
Tri-color light PATLITE(Japan)
Main electrical elements SCHNEIDER(France)OPTIONAL ACCESSORIES
Siemens 828D system
12T Lioshing hydraulic turret
Hydraulic steady rest
Renishaw tool measure
Bar feeder
12” hollow chuck
Hollow cylinder
SFC servo motor
FANUC Servo motor spindle
