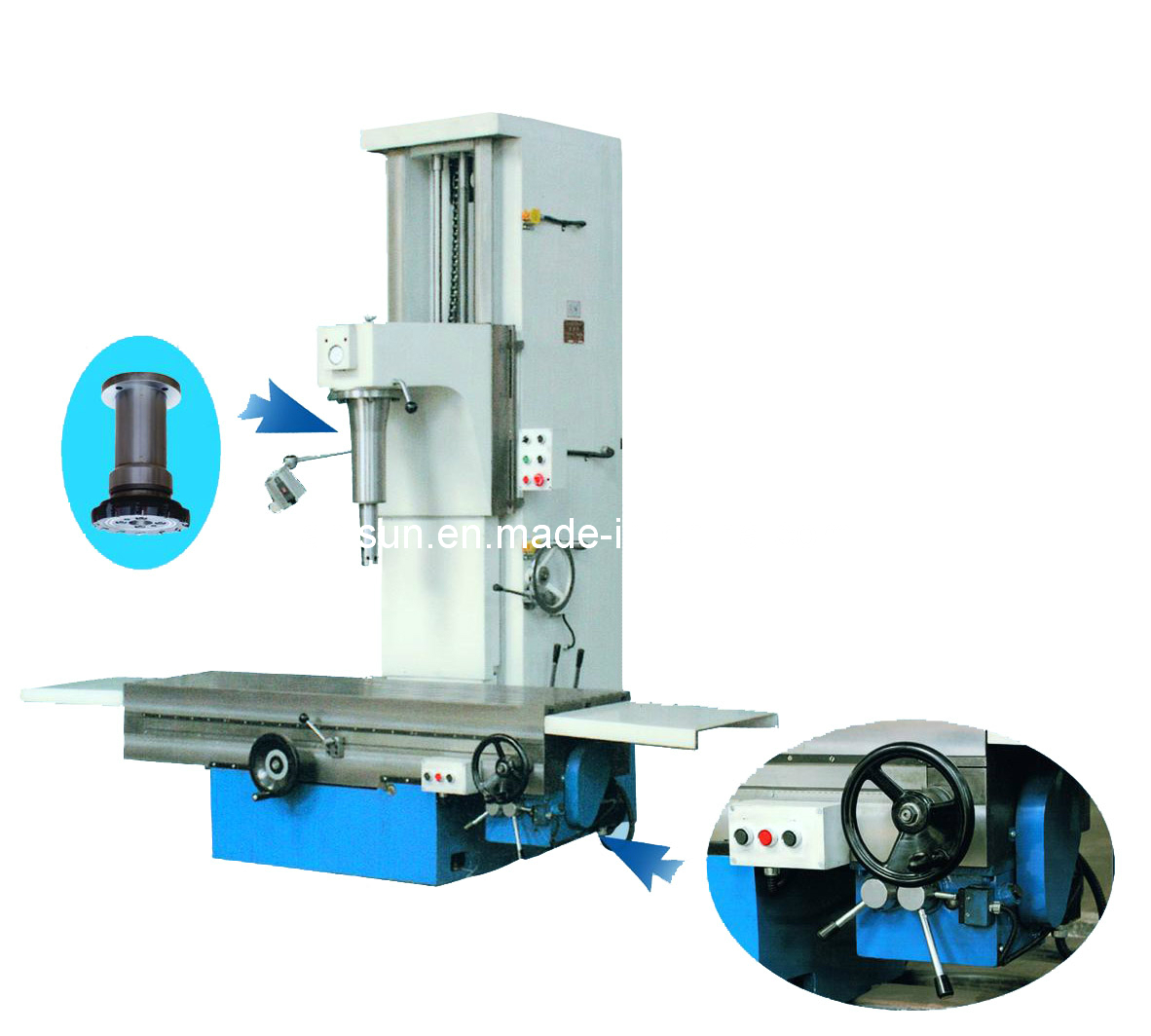

Cylinder BORING MACHINE T8018C
Quantity: Vertical boring machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.T8018C is used for processing special large motor cylinders. The machines are with the advantages of cramped structure, reliable performance, wide uses and high processing accuracy, etc.
Model
T8018C
Range of boring diameter
Φ42-Φ180 mm
Max. boring depth
650 mm
The rotational speed of spindle
175,230,300,350,460,600 r/min
Spindle feed
0.05,0.10,0.20 mm
Spindle travel
800 mm/r
The high rising speed of spindle
2.65 m/min
The distance from the central line of the spindle to the body
315 mm
Table size
1680×450 mm
Table travel
Crosswise
150 mm
Lengthwise
1500 mm
Rapid travel of guide slide
2800 mm/min
Rapid travel of table
1400 mm/min
Machine power
Main motor
YD100L2-4/2,1400/2800 rpm, 2.4/3 Kw
Motor for quick-moving
Y802-4,1400 rpm,0.75 Kw
Overall dimensions(L×W×X)
2680×1500×2325 mm
Packing dimensions(L×W×X)
1578×1910×2575 mm
N.W./G.W.
3500/3700 kg
