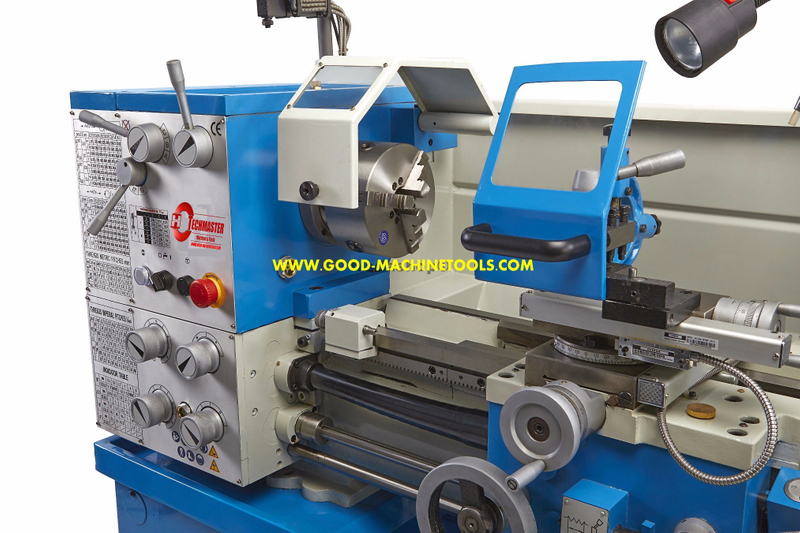

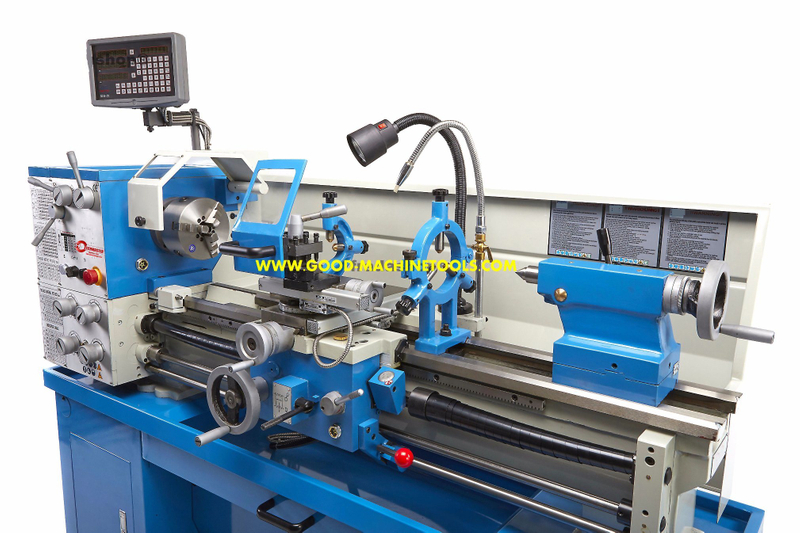

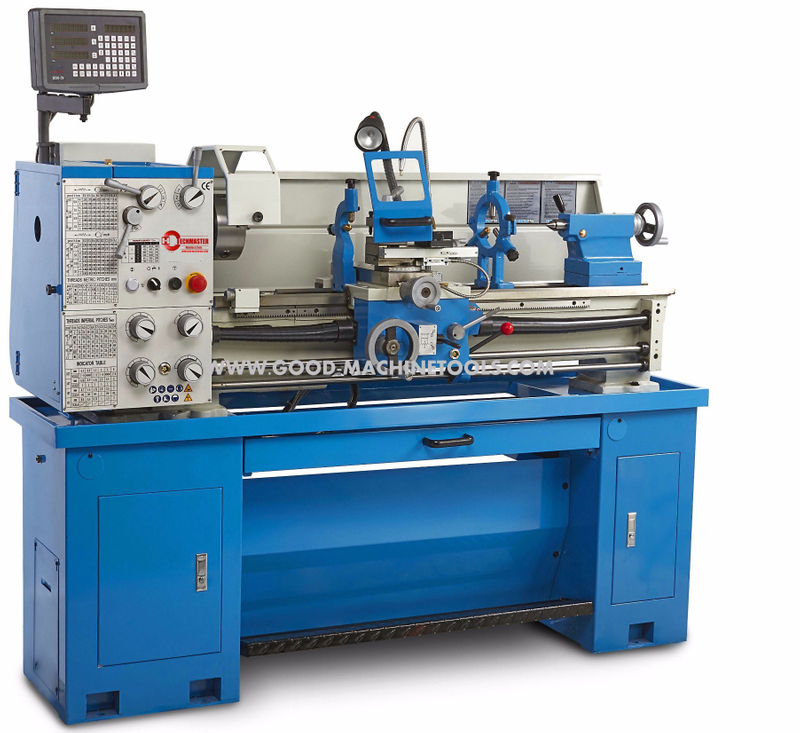

D330 X 1000

Quantity:
  • D330 X 1000


Feature:
• High precision gear drive lathe

• Extremely quiet vibration free operation

• 38mm spindle bore with D1-4/160mm 3 jaw chuck

• Overload clutch to feed shaft, micro stop is available

• Removable bridge for a large diameter workpiece

• Separate leadscrew for thread cutting function

• Ideal for tehnical colleges, repair shops and training purposes
• 4 jaw chuck, faceplate, steady/follow rest, work lamp,
  coolant, foot brake, stand and moveable chip tray,
  treading dial, micro stop as stnardard

Optional accessories:
• Leadscrew cover
• Turning tools
• Digital readout
• Taper attachment
• Quick change tool post
Model No. D330x1000
 Distance between centers 1000mm
 Swing over bed 330mm
Width of bed 180mm
Spindle nose fixture D1-4
Spindle bore 38mm
Range of spindle speed 65-1810rpm/18
Range of longitudinal feeds 0.079-1.291mm/r
Range of cross feeds 0.017-0.276mm/r
Range of inch threads  4-60tpi
Range of metric threads 0.4-7mm
  Top slide travel 75mm
  Cross slide travel 160mm
  Tailstock quill travel 100mm
  Tailstock quill taper MT3
Motor power 1.5kw
Net weight 620kg
Packing size 1920X760X1400MM
