FEATURES: Smooth and steady feed gear box with gears in oil bath Spindle of larger capacity taper of MT5 and bore of 38 mm Double Vee-Bed way is induction hardened and precision ground Strong power( DC motor with stepless speed controler,) allows high torque for turning at low speed Spindle is supported by precision bearings Longitudinal feed allows threading Left or right hand threads cutting is provided T- Slotted cross slide Tailstock offset allows taper turning Adjustable gibs for sliding ways Magnetic safety switch with emergency stop Combined switch for spindle forward/ reverse turning

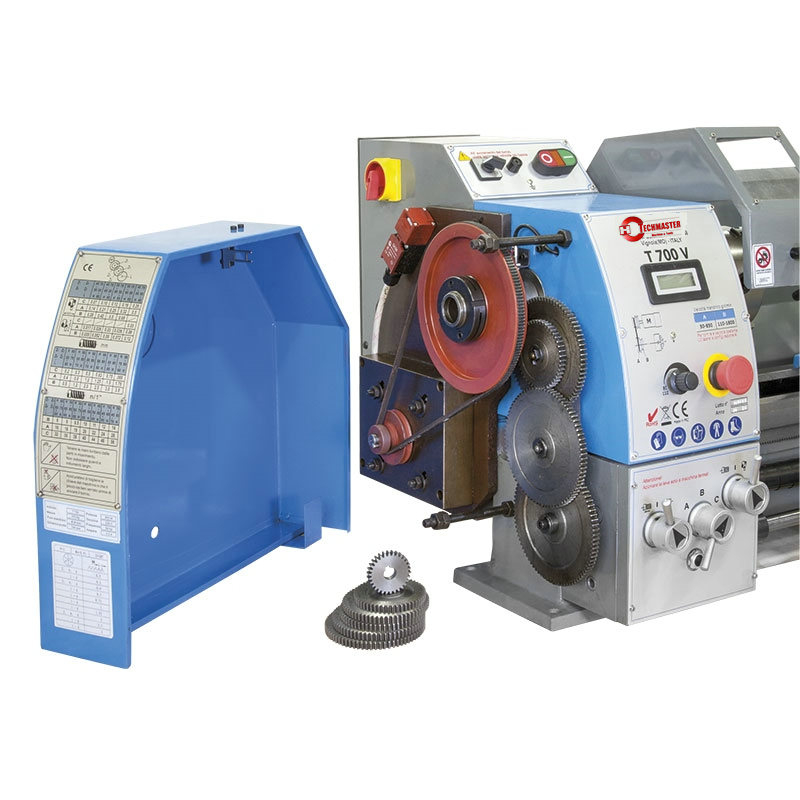

STANDARD ACCESSORIES: Digital speed indication 3 Jaw Chuck Φ125 mm, Dead Centers MT3 and MT4 Change Gears Set, Spray Guard Chip Tray, 4-way tool post holde Tool Box with Tools
OPTIONAL ACCESSORIES: 2-Axis Digital Readouts Steady Rest, Follow Rest Face Plate Φ240 mm for D290V Cabinet Stands, Rolling Center MT3 4 Jaw Chuck with Flange Φ160 mm forProfi 290V Spindle Collet Chuck Holder ER32 Chuck Collet Set ER32- 18pcs, 3-20mm Quick Change Tool Post Holder Set QTH-A Indexable Carbide Turning Tool Set 12mm, 9pcs
Altezza punte
140 mm
Diametro max sul banco
280 mm
Diametro max sul carro
170 mm
Distanza tra le punte
700 mm
Cono morse CM
4
Passaggio barra
26 mm
Velocità mandrino
50 ÷ 850 rpm 110 ÷ 1800 rpm
Avanzamenti longitudinali mm/giro
0,07 ÷ 0,65
Avanzamenti trasversali mm/giro
0,03 ÷ 0,12
Filettature metriche
0,2 ÷ 3,5 mm
Filettature in pollici
8 ÷ 56 TPI
Conicità contropunta CM
2
Motore monofase
230 V 50 Hz 1,1 kW
Dimensioni tornio
1129 x 690 x 1127 mm
Peso
300 kg
Product Description
FEQUENCY INVERTER PROFI290F
FEATURES: Smooth and steady feed gear box with gears in oil bath Spindle of larger capacity taper of MT5 and bore of 38 mm Double Vee-Bed way is induction hardened and precision ground Strong power( DC motor with stepless speed controler,) allows high torque for turning at low speed Spindle is supported by precision bearings Longitudinal feed allows threading Left or right hand threads cutting is provided T- Slotted cross slide Tailstock offset allows taper turning Adjustable gibs for sliding ways Magnetic safety switch with emergency stop Combined switch for spindle forward/ reverse turning
STANDARD ACCESSORIES: Digital speed indication 3 Jaw Chuck Φ125 mm, Dead Centers MT3 and MT4 Change Gears Set, Spray Guard Chip Tray, 4-way tool post holde Tool Box with Tools
OPTIONAL ACCESSORIES: 2-Axis Digital Readouts Steady Rest, Follow Rest Face Plate Φ240 mm for D290V Cabinet Stands, Rolling Center MT3 4 Jaw Chuck with Flange Φ160 mm forProfi 290V Spindle Collet Chuck Holder ER32 Chuck Collet Set ER32- 18pcs, 3-20mm Quick Change Tool Post Holder Set QTH-A Indexable Carbide Turning Tool Set 12mm, 9pcs
