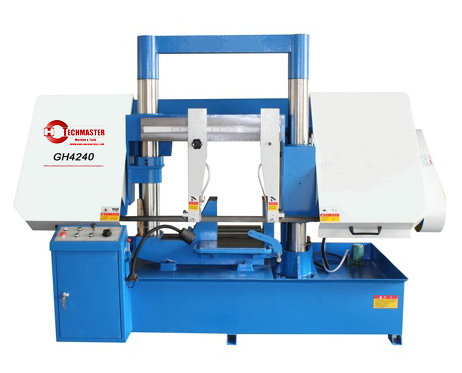

GH4240
| MODEL | UNIT | GH4240 |
| Main Motor Power | Kw | 4 |
| Hydraulic Motor Power | Kw | 0.75 |
| Coolant Pump Motor Power | Kw | 0.09 |
| Blade Linear Speed | M/Min | 27/45/69 |
| Blade Feed Type | | Hydraulic Stepless |
| Main Drive Structure | | Worm Wheel |
| Blade Size | Mm | 5000*41*1.3 |
| Machine Dimensions (L*W*H) | Mm | 2400*1100*1900 |
| Blade Tension Type | | Manual |
| Workpiece Feed Type | | Manual |
| Workpiece Clamp Type | | Hydraulic |
| N.W. | Kg | 1400 |
| Cutting Range (Round) | Mm | Φ400 |
| Cutting Range (Rectangular) | Mm | 400*400 |
