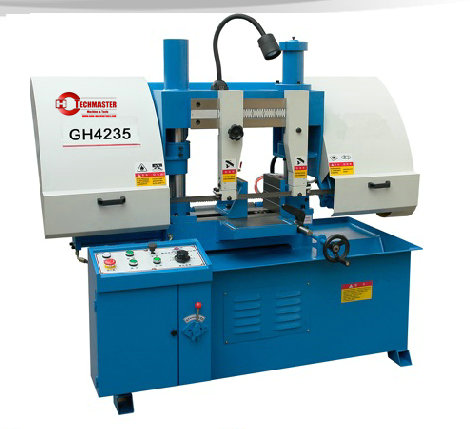

GH4235
| MODEL | UNIT | GH4235 |
| Main Motor Power | Kw | 3 |
| Hydraulic Motor Power | Kw | 0.55 |
| Coolant Pump Motor Power | Kw | 0.04 |
| Blade Linear Speed | M/Min | 27/45/69 |
| Blade Feed Type | | Hydraulic Stepless |
| Main Drive Structure | | Worm Wheel |
| Blade Size | Mm | 4115*34*1.1 |
| Machine Dimensions (L*W*H) | Mm | 2000*1100*1500 |
| Blade Tension Type | | Manual |
| Workpiece Feed Type | | Manual |
| Workpiece Clamp Type | | Hydraulic |
| N.W. | Kg | 720 |
| Cutting Range (Round) | Mm | Φ350 |
| Cutting Range (Rectangular) | Mm | 350*350 |
