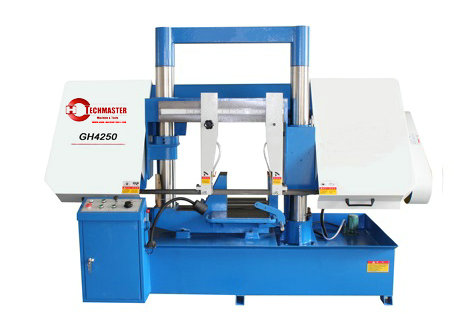

DOUBLE COLUMN HORIZONTAL BAND SAW

Quantity:
  • GH4250

MODEL  UNIT GH4250
Main Motor Power Kw 5.5
Hydraulic Motor Power Kw 0.75
Coolant Pump Motor Power Kw 0.09
Blade Linear Speed M/Min 27/45/69
Blade Feed Type
Hydraulic Stepless
Main Drive Structure
Worm Wheel
Blade Size Mm 5800*41*1.3
Machine Dimensions (L*W*H) Mm 2800*1400*1900
Blade Tension Type
Manual
Workpiece Feed Type
Manual
Workpiece Clamp Type
Hydraulic
N.W. Kg 1900
Cutting Range (Round) Mm Φ500
Cutting Range (Rectangular) Mm 500X500
