DP43016F

Availability:
Quantity:
  • DP43016F

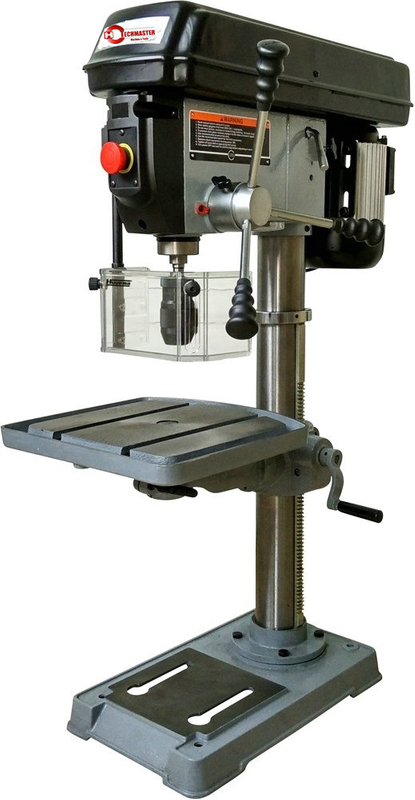

Table drilling machine, excellent value for money! The drill chuck cover has a switch that stops the machine when it is opened. The v-belt cover is equipped with an autostop switch. The drilling machine is supplied with a cooling table, softgrips, adjustable depth stop and quick-acting drill chuck. Heavy duty machine. Extra large swing.

Properties:
including drill bit and quick-release drill head 16 mm
with safety switch in V-snaarkap
with electric hood - HUVEMA design
extra large cooling table
table can be rotated and tilted
emergency stop at the front

FEATURES

Drilling capacity 16 mm
Drilling depth 80 mm
Spindle taper MT2
Speed range 200 - 3630 rpm
T slots 2
Distance spindle-column 215 mm
Column diameter 80 mm
Table dimensions 355 x 355 mm
Foot dimensions 495 x 290 mm
Drive V
Number of revs 16
Packing dim. 900 x 540 x 250 mm
Engine power 1 kW
Weight 80 kg
Voltage 230 V
