| Quantity: | |
|---|---|

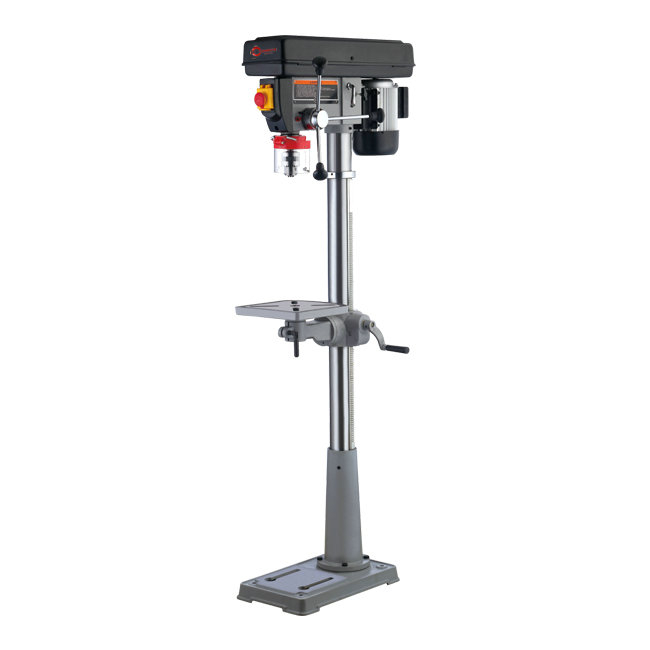

 Model/Specification | DP33016F |
| Drill Capacity(mm) | 16 |
| Swing（mm) | 330 |
| Spindle Taper | MT2 |
| Speed No. | 12 |
| Speed range(rpm 50Hz) | 12(180-2740) |
| Spindle travel(mm) | 80 |
| Collumn Diameter(mm) | 73 |
| Rack&pinion | yes |
| Max distance from spindle to table | 730 |
| Max distance from spindle to base | 1220 |
| Base Size(mm) | 450*270 |
| Table Size(mm) | 254*254/300dia |
| Table tilt | yes -45/45° |
| Motor(w)/S1 | 600 |
| Height(mm) | 1630 |
| NW/GW(kg) | 52/55 |
| Packing Size(mm) | 1430*510*256 |
| Units Per 20' Container | 160 |
| Model/Specification | DP33016F |
| Drill Capacity(mm) | 16 |
| Swing（mm) | 330 |
| Spindle Taper | MT2 |
| Speed No. | 12 |
| Speed range(rpm 50Hz) | 12(180-2740) |
| Spindle travel(mm) | 80 |
| Collumn Diameter(mm) | 73 |
| Rack&pinion | yes |
| Max distance from spindle to table | 730 |
| Max distance from spindle to base | 1220 |
| Base Size(mm) | 450*270 |
| Table Size(mm) | 254*254/300dia |
| Table tilt | yes -45/45° |
| Motor(w)/S1 | 600 |
| Height(mm) | 1630 |
| NW/GW(kg) | 52/55 |
| Packing Size(mm) | 1430*510*256 |
| Units Per 20' Container | 160 |
