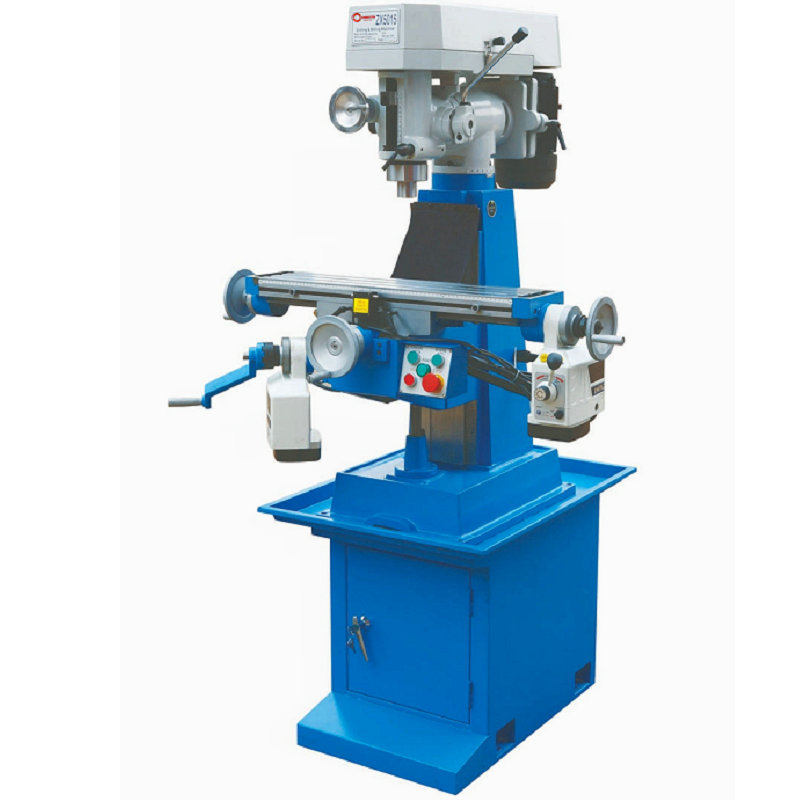

ZX5015
Feature
Precision drilling and milling head
Precision ground worktable
Tilting and swiveling head
With Micro-feed hanwheel and quick feed lever
Technical Parameter
Model | ZX5015 |
Max.drilling capacity(Iron/Steel) | 30/25 mm |
Max.milling capacity(Face milling) | 76 mm |
Max.milling capacity(End milling) | 20 mm |
Work table size | 660x156 mm |
Cross/longitudinal travel work table | 150mm/360mm |
Spindle taper | MT3 or R8 |
Spindle travel | 80 mm |
Spindle speed(9 steps) | 50HZ:190-2100 rpm 60HZ:230-2520rpm |
Max. distance spindle to table | 280 mm |
Head tilt left right | ±45° |
Spindle swivel | 360° |
Motor power | 1.1kw |
NW/GW | 280/350 kgs |
Packing size | 950x760x1260 mm |
Standard accessories: | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Oil gun |
| 11、Instruction Manual | 12、Certificate of inspection |
| 13、Pacjing list | |
Optional accessories | |
| 1、Halogen working lamp | 2、Table power feed (X-axis |
