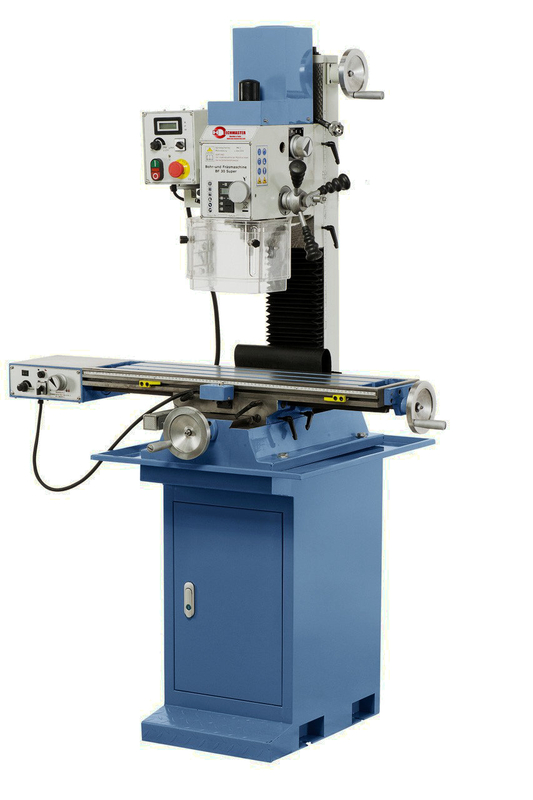

DRILLING AND MILLING MACHINE BF30VL WITH POWER
Quantity: The model BF 30 Super is an upgrade of the approved classic KF 25 Vario. The spindle taper is now even bigger, the table is larger and it is serially equipped with two digital displays, showing speed and spindle stroke. In addition, this mode features stepless speed adjustment as well as a tiltable mill head from -90° to +90°
TECHNISCHE SPEZIFIKATIONEN
Technische Spezifikationen
Drilling capacity in steel 30 mm Face mill capacity max. 75 mm End mill capacity max. 25 mm Distance spindle to column 180 mm Distance spindle to table 135 - 495 mm Spindle stroke 70 mm Spindle speed, stepless 50 - 750 / 150 - 2250 rpm Spindle taper MT 3 Table size 840 x 210 mm Travel (x / y) 565 / 215 mm Mill head tiltable -90째 to +90째 Height adjustment of mill head 360 mm T-slot size 14 mm Motor power output S1 100% 1,1 kW / 230 V Motor power input S6 40% 1,6 kW / 230 V Machine dimension (W x D x H)* 1100 x 715 x 1200 mm Weight approx. 220 kg
* without stand
FEATURES- Many possible applications, such as groove milling, face milling, reboring etc.
- Digital speed and spindle stroke indicator included as standard equipment
- 2-step gear unit for optimal power transmission
- Serially equipped with left and right turning, ideal for thread cutting
- Direct current motor for ideal torque at lower speed
- Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
- High-quality bearings guarantees high spindle concentricity (≤0.015 mm)
- Mill head tiltable to both sides for angular boring, milling of bevels etc.
- Large, surface treated cross table
- Handle for spindle adjustment, handwheel for fine feed
Standard accessories:
- Keyless drill chuck 3 - 16 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Drawbar M 12
- Digital speed indicator
- Digital spindle stroke indicator
- EMC filter according to CE standard
- Height adjustable protective cover
- Tools
