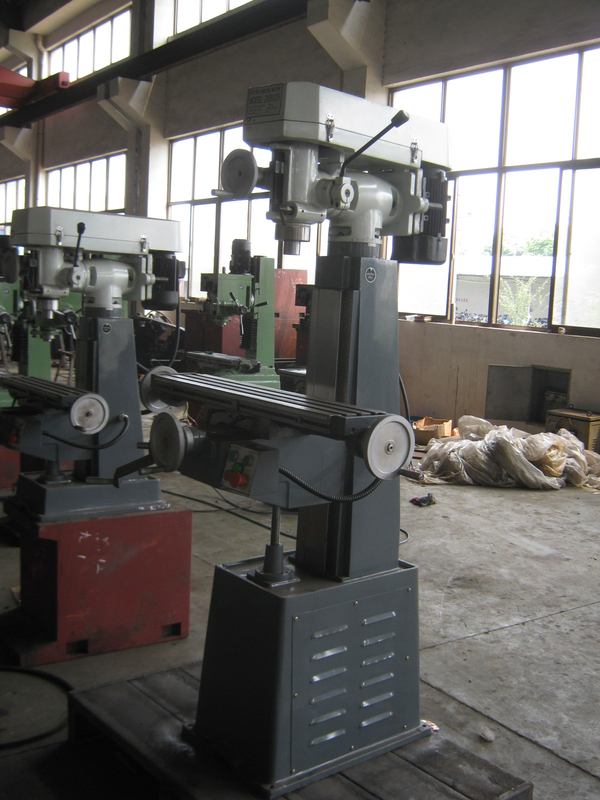

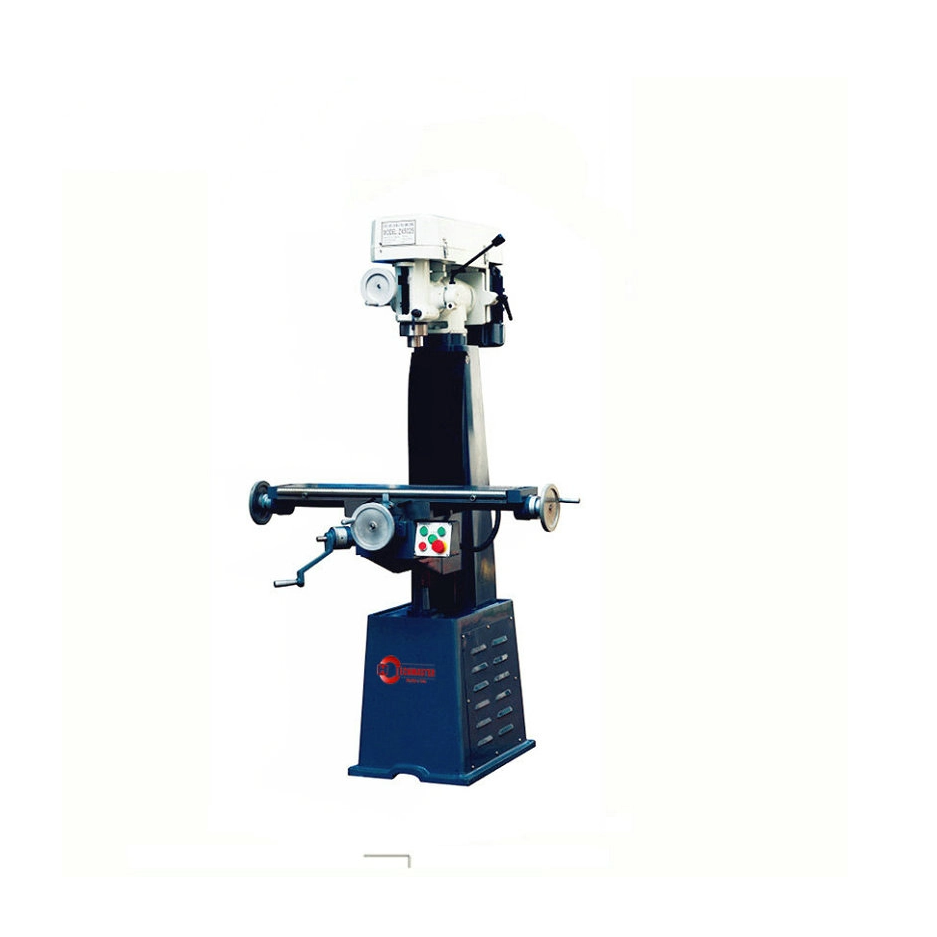

DRILLING AND MILLING MACHINE ZX5025
Quantity: -
ZX5025
Feature
Precision drilling and milling head
Precision ground worktable
Tilting and swiveling head
With Micro-feed hanwheel and quick feed lever
Technical Parameter
Model
ZX5025
Max.drilling capacity(Iron/Steel)
30/25 mm
Max.milling capacity(Face milling)
76 mm
Max.milling capacity(End milling)
20 mm
Work table size
800x178 mm
Cross/longitudinal travel work table
200mm/440mm
Spindle taper
MT3 or R8
Spindle travel
80 mm
Spindle speed(9 steps)
50HZ:190-2100 rpm 60HZ:230-2520rpm
Max. distance spindle to table
545 mm
Head tilt left right
±45°
Spindle swivel
360°
Motor power
1.1kw
NW/GW
480/550 kgs
Packing size
1060x860x1930 mm
Standard accessories:
1、Draw bra 2、Adapter 3、Taper shank for drilling chuck 4、Drilling chuck 5、T slot bolt 6、Washer 7、Nut 8、Tilted wedge 9、Spanner 10、Oil gun 11、Instruction Manual 12、Certificate of inspection 13、Pacjing list Optional accessories
1、Halogen working lamp 2、Table power feed (X-axis Feature
