DRILLING AND MILLING MACHINE ZX7045
You are here: Home » Products » MILLING » MILLING DRILLING MACHINE » PROFESSIONAL MILLING / DRILLING » DRILLING AND MILLING MACHINE ZX7045
Share to:

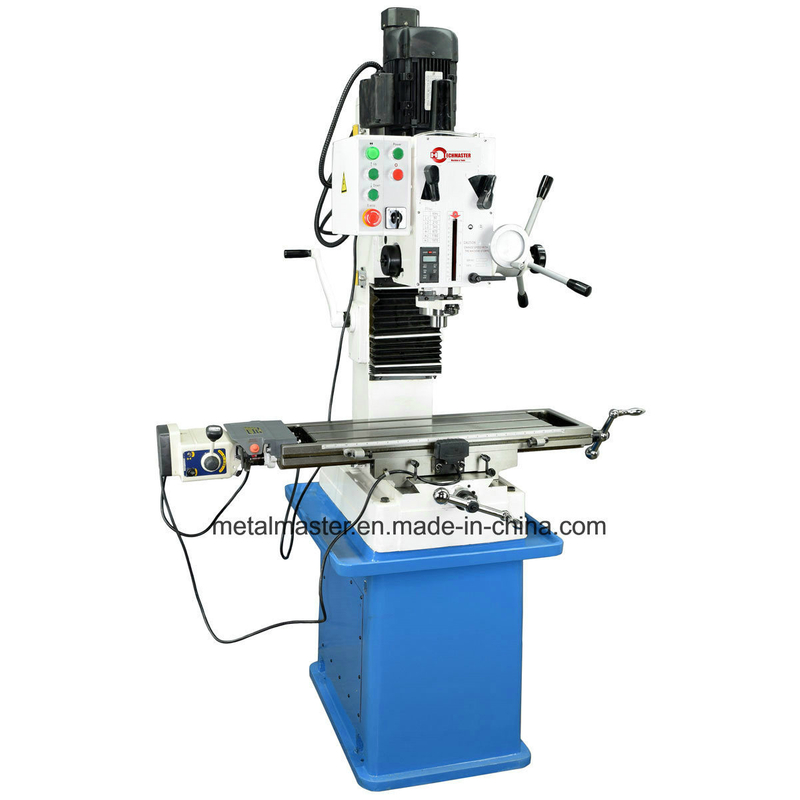

DRILLING AND MILLING MACHINE ZX7045

Quantity:
  • ZX7045
  • Heavier Class Milling Machine, (1100 LBS With Base) For More Rigidity, And Greater Cutting Ability
  • Larger Knee Mill Style Table Handles, for Much Better Control By Hand
  • True Inch Pitch Leadscrews on X and Y Axis, 10 TPI Screws (.100″ Per Turn) For Easier Operation
  • Available With Power Down Feed on Spindle (PDF Model Only) For Boring Operations
  • Optional Stand is Heavy Duty Cast Iron, For Better Vibration Dampening and Rigidity
  •
  • Table Size: 9″x31.5″
  • Max. Table Load Capacity: 300 lbs
  • Table T-Slot Size and Number: 14mm / 9/16″, 3 Slots
  • Table Travel, X Axis: 22-3/8″ Hand Only, 19.5″ w/ Power Feed
  • Table Surface Height from floor, 34-3/4″ (With base flat on floor)
  • Base Dimension at floor approx. 18-5/8″W x 27″D
  • Bolt Mounting Pattern, Milling Machine Base (Where the machine would bolt to either a work bench or to the cast iron base) Approx. 12-3/4 Wide x 18-3/4 Deep, 9/16" Hole Diameter
  • Normal Working Max Height: (top of column travel motor) 76-1/2″ (with optional stand)
  • Height with head all the way up: (top of main motor) 81-1/2″(with optional stand)
  • Stand (Base) height, to machine mounting surface: 24″
  • Cross Travel, Y Axis: 8″
  • Head Vertical Travel: 17″
  • Max. Distance Spindle to Table: 18″
  • Quill (Spindle) Travel: 5″
  • Lead Screw Type: Inch Pitch Acme Threads
  • Spindle Taper: R-8, with 7/16-20 drawbar thread (U.S.
    Standard)
  • Quill Diameter: approx. 3″
  • Head Tilt Front to Back: N/A
  • Head Swivel: Side To Side, 90 Degrees
  • Ram Swivel: N/A
  • Power: 220 Volt, Single Phase, 9 Amps
  • Motor Horsepower: 1.5 H.P. (Some other similar machines will say
    that they are 2HP, but its the SAME exact motor as this one, just rounded
    up to 2hp and marked that way, we prefer to be honest and mark it as
    what it really is, which is 1.5HP, which is more than enough power for
    this machine either way)
  • Casting Type: Fine Grain Cast Iron
  • Approximate Weight: 1100lbs with Stand, 850 Without Stand
SPECFICATIONS: Metrick System
Milling drilling, tapping, boring, reaming
Head swivels 360,Micro feed precision
super high column,Wide and big table,Gear drive, lower noise
heavy-duty tapered roller bearing spindle,Positive spindle lock,Adjustable gibs on table;
ITEM ZX7045 METRIC system
Max.drilling capacity(iron/steel) 31.5/40mm
Max.mill capacity(face/end) 80/32mm
Spindle taper MT3/MT4/R8/ISO30
Worktable size 800*240mm
Worktable travelX/Y 570/230mm
Head tilt left right 90
Spindle travel 130mm
Spindle nose to worktable 470mm
Spindle center to column surface 285mm
Spindle speed(option) 6steps:60Hz 90~1970rmp
 50Hz 75~1600rmp
Motor(option) 1.1kw
N.W/G.W 300/350KG
Packing size(L*W*H,enclude foot and pan) 850*760*1150mm
