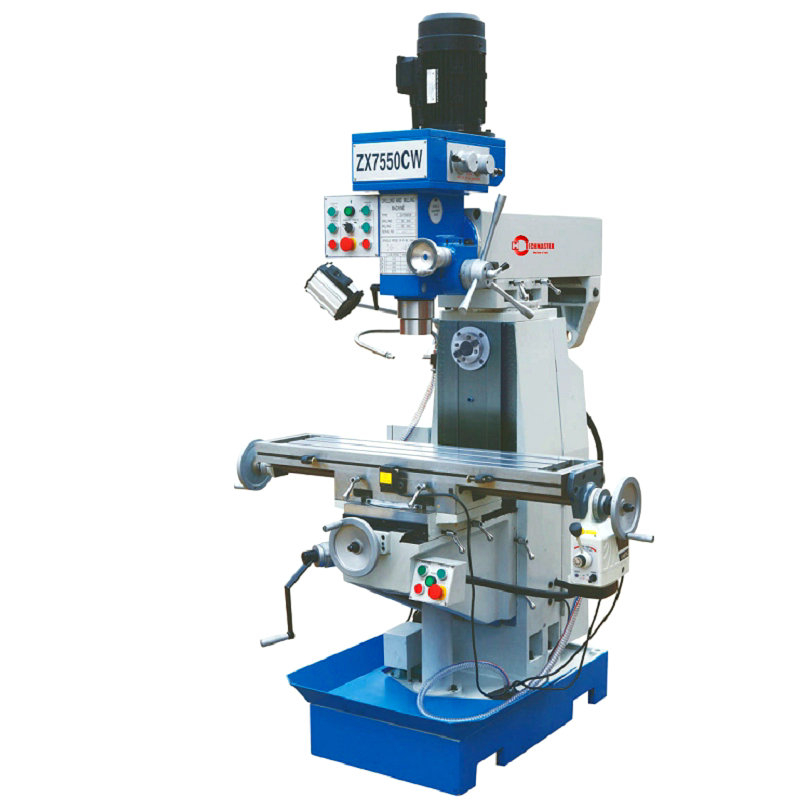

DRILLING AND MILLING MACHINE ZX7550CW
Quantity: -
ZX7550CW
Feature
recycling coolant system
Longitudinal power feed
high-precision spindle
two-speed motor
work light
Technical Parameter
Model
ZX7550 CW
Max.drilling dia.
30 mm (ISO40)
Max.end milling width
100 mm
Max.vertical milling dia.
25 mm
Work table size
800x240 mm （1000x240mm）
Table travel
400 x 230 （580x230mm）
Spindle taper
ISO40
Spindle travel
120 mm
Spindle speed range
115-1750立 / 60-1350 卧
Distance from spindle nose to table surface
70-420 mm / 60-360 mm
Motor
0.85/1.5 kw （V） 1.5kw（H）
NW/GW
760/840 kgs / 850/930 kgs
Packing size
1340x1140x2240 mm
Standard accessories
1、Draw bra 2、Adapter 3、Taper shank for drilling chuck 4、Drilling chuck 5、T slot bolt 6、 Washer 7、Nut 8、Tilted wedge 9、Spanner 10、Inner hexagonal spanner 11、Horizontal milling bar 12、Oil gun 13、Instruction Manual 14、Certificate of inspection 15、Pacjing list Optional accessories
1、Table power feed (X-axis) 2、Table power feed (Y-axis) 3、Halogen working lamp 4、Cooling pump 5、Power off protective cover(CE) 6、Digital display(Three axis) 7、Double speed motor 8、Rotary table 9、1000m worktable 10、Milling chuck set(8pcs/set) 11、Machine Vise（160mm） Feature
