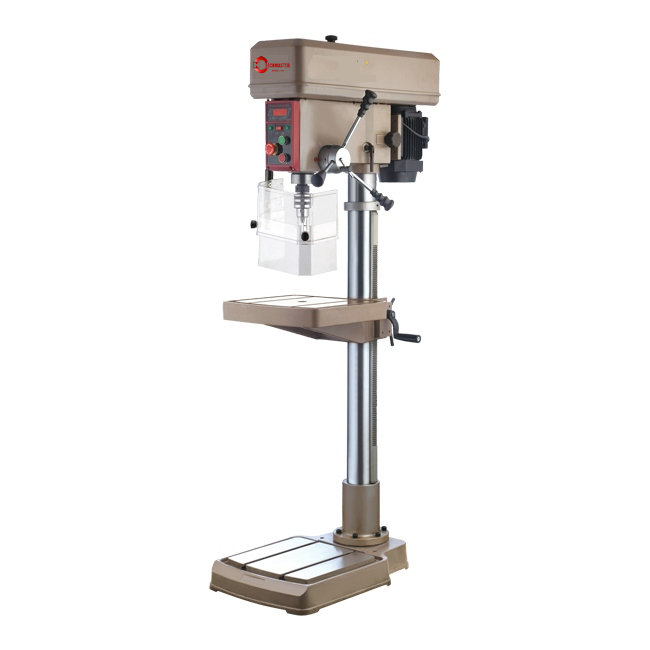

DRILLING MACHINE Z2032F-ZS2032F
SPECIFICATION:
| Model | Z2032F | ZS2032F |
| Feature | Drilling | Drilling & Tapping |
| Drill/Tapping Capacity | 32mm | 32mm/M16 |
| Chuck Capacity | 1~16mm | 1~16mm |
| Column Diameter | 99mm | 99mm |
| Spindle Travel | 135mm | 135mm |
| Swing | 510mm | 510mm |
| Max. Distance spindle to table | 730mm | 730mm |
| Max. Distance spindle to base | 1145mm | 1145mm |
| Spindle Taper | MT3 | MT3 |
| Speed Range | 250～2200RPM | 250～2200RPM |
| No. of Speed | 5 | 5 |
| Table Size | 420X380mm | 420X380mm |
| Base Size | 650x440mm | 650x440mm |
| Overal Height | 1740mm | 1740mm |
| Motor | 400V/1100W/50Hz | 400V/1100W/50Hz |
| Weight | 230KG | 230KG |
| Packing Size | 940x520x1900mm | 940x520x1900mm |
SPECIFICATION:
| Model | Z2032F | ZS2032F |
| Feature | Drilling | Drilling & Tapping |
| Drill/Tapping Capacity | 32mm | 32mm/M16 |
| Chuck Capacity | 1~16mm | 1~16mm |
| Column Diameter | 99mm | 99mm |
| Spindle Travel | 135mm | 135mm |
| Swing | 510mm | 510mm |
| Max. Distance spindle to table | 730mm | 730mm |
| Max. Distance spindle to base | 1145mm | 1145mm |
| Spindle Taper | MT3 | MT3 |
| Speed Range | 250～2200RPM | 250～2200RPM |
| No. of Speed | 5 | 5 |
| Table Size | 420X380mm | 420X380mm |
| Base Size | 650x440mm | 650x440mm |
| Overal Height | 1740mm | 1740mm |
| Motor | 400V/1100W/50Hz | 400V/1100W/50Hz |
| Weight | 230KG | 230KG |
| Packing Size | 940x520x1900mm | 940x520x1900mm |
