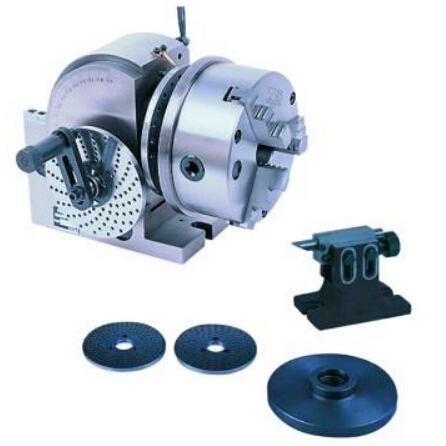

Semi-Universal dividing head is a simple index center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, but the whole construction is the same as universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. Attaches 3 dividing plate along with the dividing head indirect dividing in any division indexing 2-50, 51-380.

tp

STANDARD ACCESSORIES:
DIVIDING PLATE A, B, C.
Numbers of holes of dividing plate (worm gear reduction ratio 1: 40)

Number
of holes

A-Plate

15,16,17,18,19,20

B-Plate

21,23,27,29,31,33

C-Plate

37,39,41,43,47,49

HEADSTOCK                                                                                            Unit: mm/inches

Model No.

A

B

H

h

a

b

g

Taper of center

Diameter of spindle hole

BS-0

193

131

173

100

166

90

16

MT2

18

7.59

5.15

6.81

3.93

6.53

3.54

0.63

0.71

BS-1

242

168

220

128

206

113

16

MT3

20

9.52

6.61

8.66

5.04

8.11

4.45

0.63

0.79

 TAILSTOCK                                                                                              Unit: mm/inches

Model No.

A1

B1

H1

h

a1

b1

g1

BS-0

175

87

102

100

130

92

16

6.89

3.42

4.02

3.93

5.12

3.62

0.63

BS-1

183

87

137

128

158

110

16

7.20

3.42

5.39

5.04

6.22

4.33

0.63

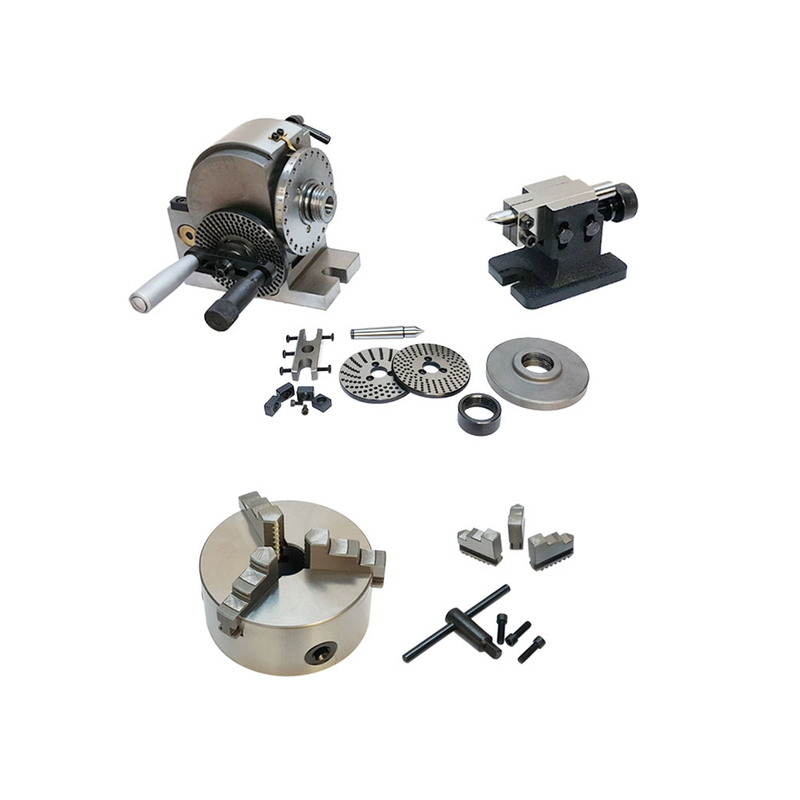

OPTIONAL ACCESSORIES:
3-jaw chuck
4” or 5” 3-jaw chuck for BS-0
5” or 6” 3-jaw chuck for BS-1

Features
100% brand new, of good quality
Direct/indirect dividing
Semi-universal dividing head
User-friendly machine
Professional precise division

Technical
Condition: Brand New
Swing: 6-1/2″
Center Height: 3-15/16″
Headstock Taper: 7 B&S
Weight: 23kg (50.7lbs)
Package Dimensions: 410*235*205mm (16*9*8inch)

Package
1 X Dividing Head Set
3 X Dividing Plates
1 X 125mm 3 Jaw Chuck
