Double Column Auto Feed

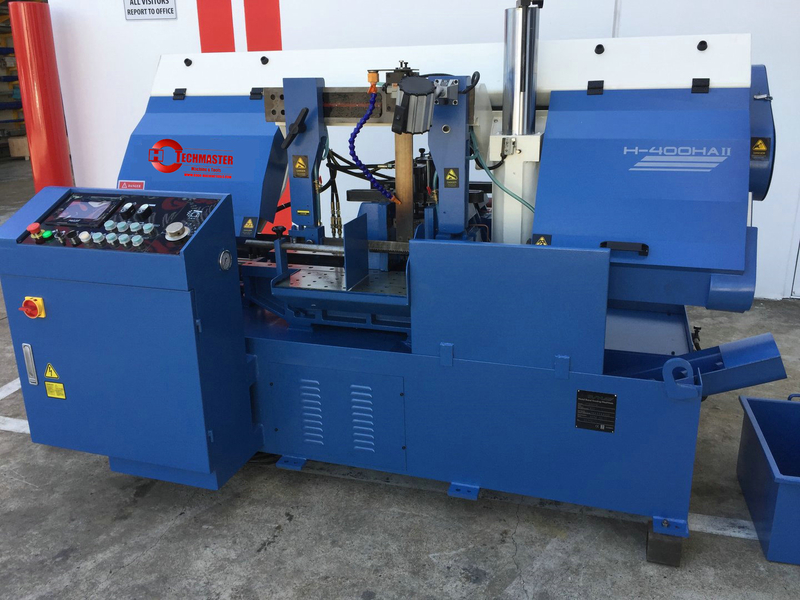

  • 400HA

Fully Automatic Column Bandsaw. 400mm Round & Square Capacity, Euro Model,

Our automatic and semi automatic dual - column bandsaws are widley used for the cutting and processing of both ferrous and non ferrous materials. Offering a compact design, reliable performance and high precision.
Perfect for medium quantity and also processing application.
This is your partner in machinery.

❚large precision ground column for additional support
❚NC programmable control
❚Precision feed length measuring system.
❚power assisted work table
❚hydraulic blade tensioner
❚hydraulic vice clamping
❚variable hydraulic down feed & auto return
❚automatic chip conveyor
❚carbide & bearing blade guides
❚breakage sensor
❚powered brush cleaner
❚centralized control panel
❚powered in feed roller table 2000mm in length
❚laser guide
❚halogen work light
❚one piece bi metal blade fitted
❚CE compliance
❚tool kit

Technical Data Snap-Shot
❚420mm x 400mm cutting capacity
❚400mm round cutting capacity
❚20 ~ 100 variable speed range
❚0.25 ~ 0.5mm positioning accuracy
❚4800mm x 34mm x 1.1mm blade dimensions
❚500mm x 9 max length one way feeding
❚shipping dimensions - 2300mm x 2200mm x 1900mm
❚power - 415V 4Kw
❚approx weight: 2350kg
