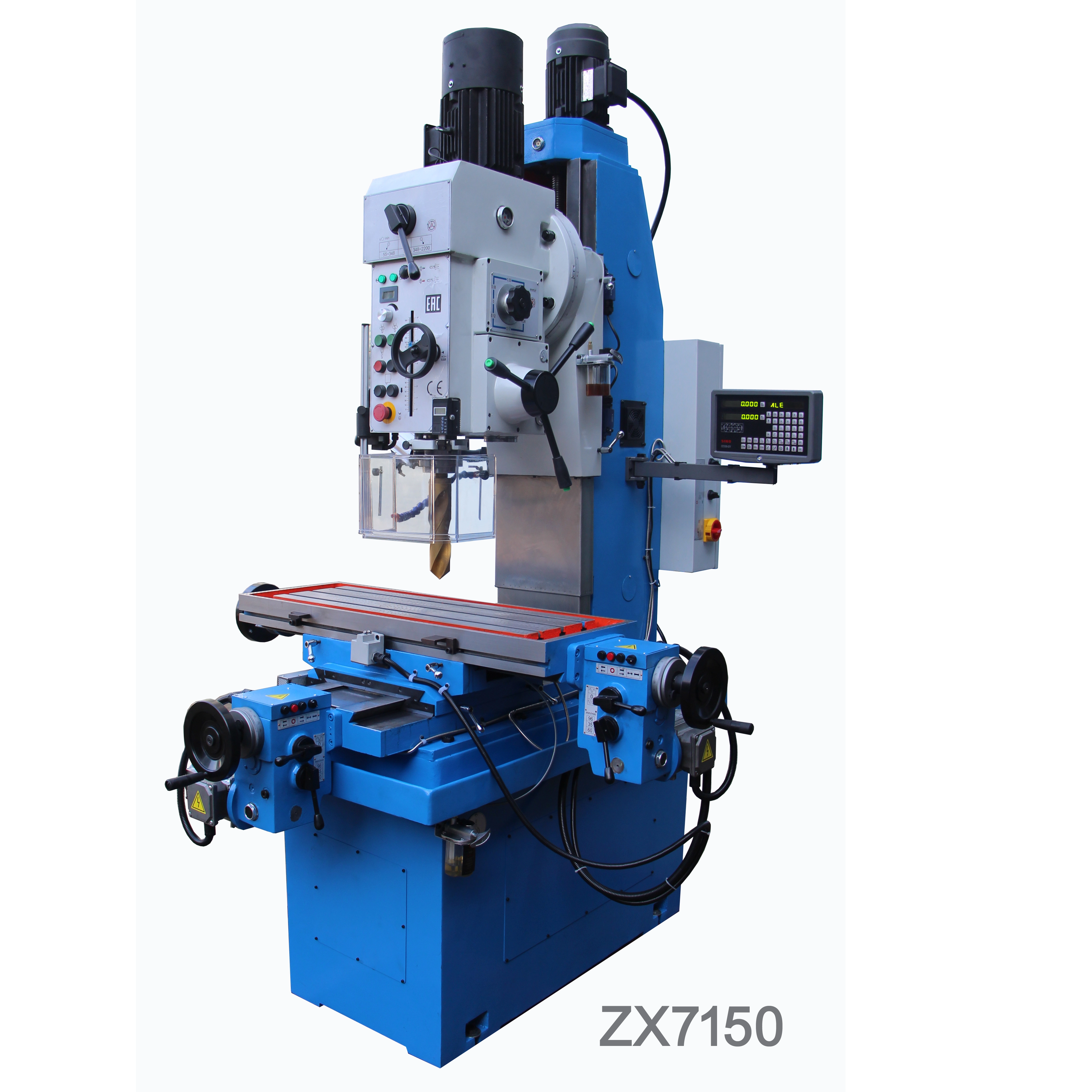

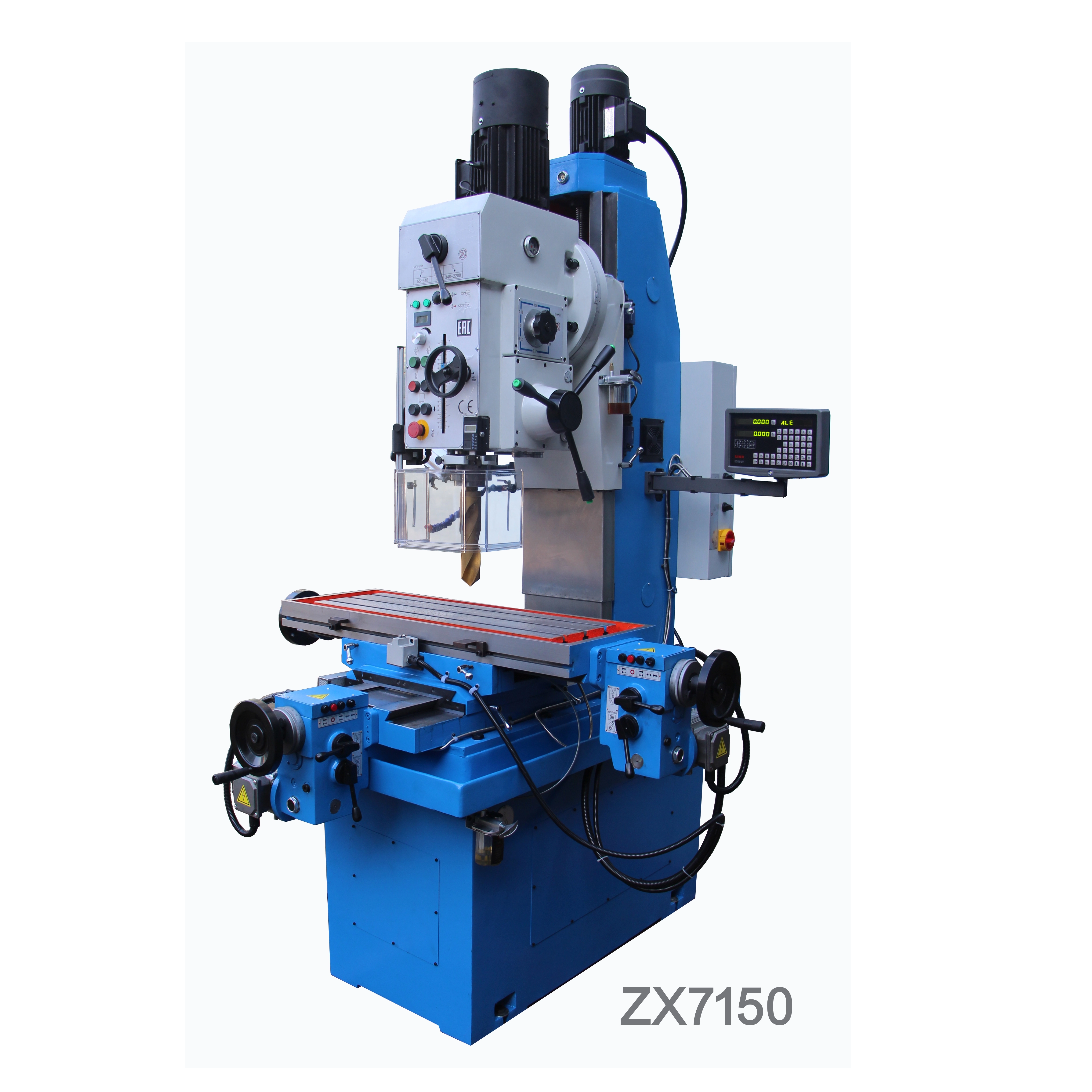

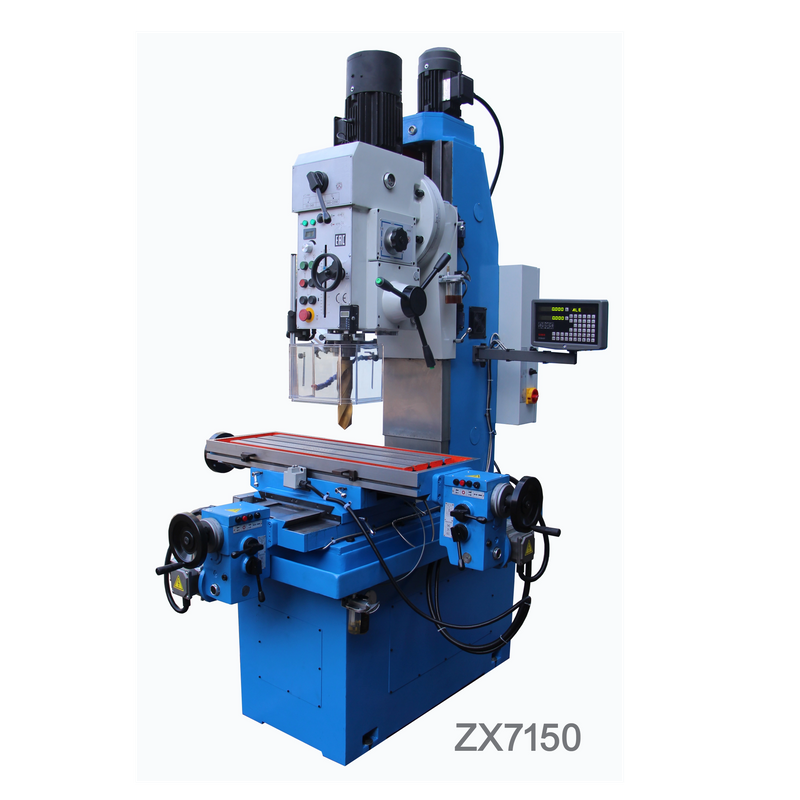

Drill and Mill ZX7150
Quantity: -
ZX7150
Accurate Performance in Drilling Milling and Tapping High Strength Construction Ideal for Model Maker & Repair Shops..
TECHNICAL PARAMETERS
Max. drilling diameter (steel) 50 mm Max. tapping diameter (steel) M30 mm Max.vertical milling cutter diameter 35MM Max.end milling cutter diameter 80 mm Max. Distance from spindle to guide surface 430mm Max. distance between spindle end to the surface of the
worktable 550 mmMax. stroke of the spindle 200mm Spindle taper M.T 4 Morse Max .travel for the spindle box in up and down position 420mm Speed for the spindle box in up and down position 1780mm Step-less Speed changing Spindle speed range 55~348、348~2200 r/min Feed steps of the spindle: 6 Steps Feed range of the spindle 0.08~0.5 mm/r Max. travel for X Y directions 420x340 mm Feed rate of worktable for X direction 35,60,96mm/min Working area of the worktable (L x W) 960×340mm Numbers and width of the T slots for worktable of base 3-T14 mm Main Motor Power (Frequency Conversion Motor) 3 KW Power and speed of the lifting motor 1.1/960 KW.r/min Machine dimension (L x W x H) 1600×1450×2420 mm Net weight of the machine (Net weight) 1460 K
