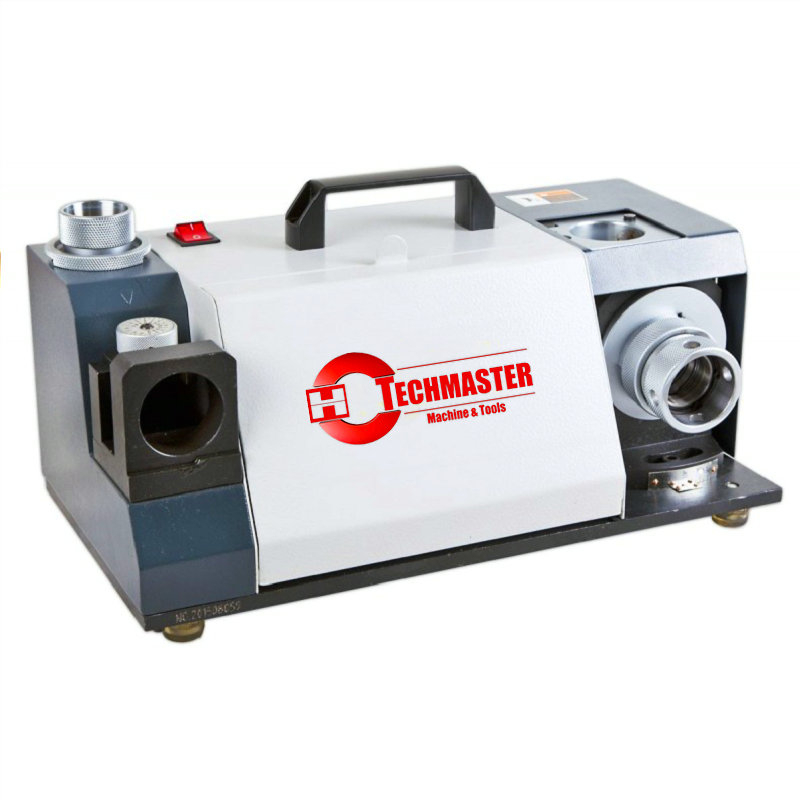

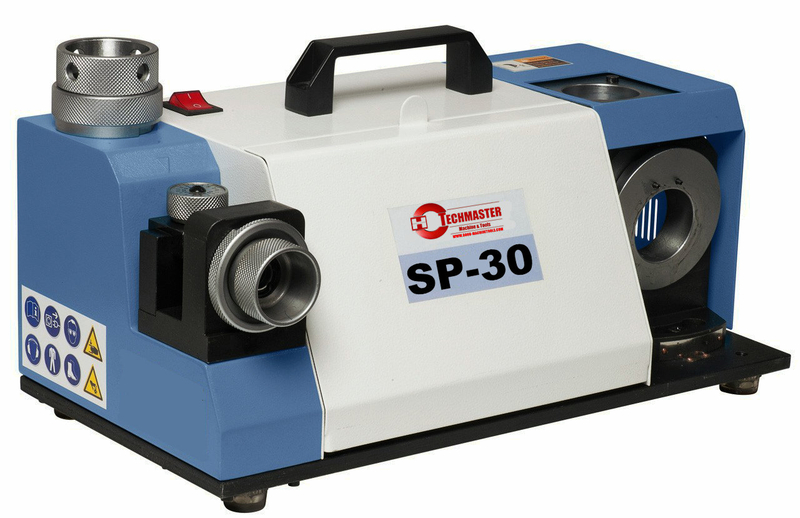

drill grinding machine is suitable for most common HSS twist drills - cobalt, carbide or similar - ranging from 2 – 30 mm. Fast grinding process at low investment makes this model highly economical.
Drill diameter | 2 – 30 mm |
Centre point | 90° - 135° |
Speed | 3500 rpm |
Motor power | 0,45 kW |
Voltage | 230 V |
Length | 430 mm |
Width | 220 mm |
Height | 220 mm |
Weight approx. | 31 kg |
Quick and easy grinding process: 3 mm drills in only 20 seconds, 19 mm drills within 60 seconds

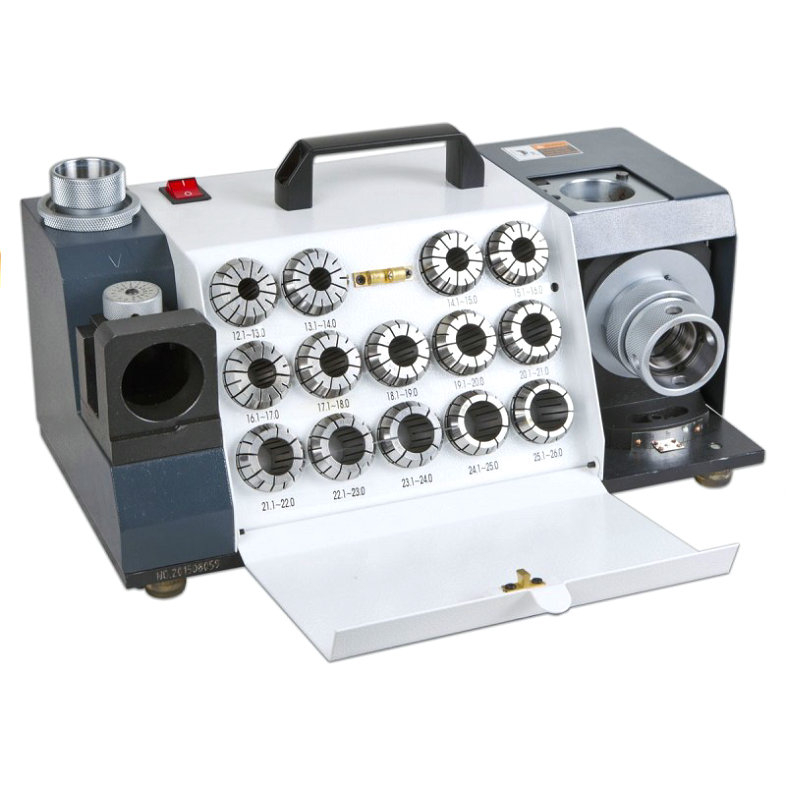

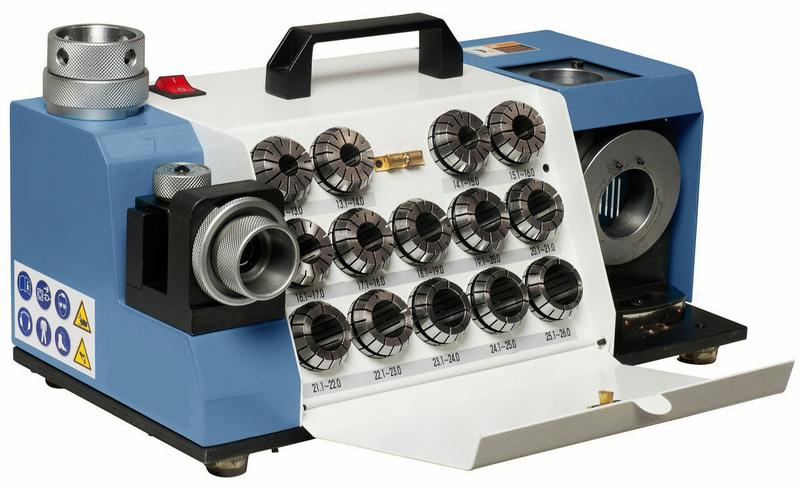

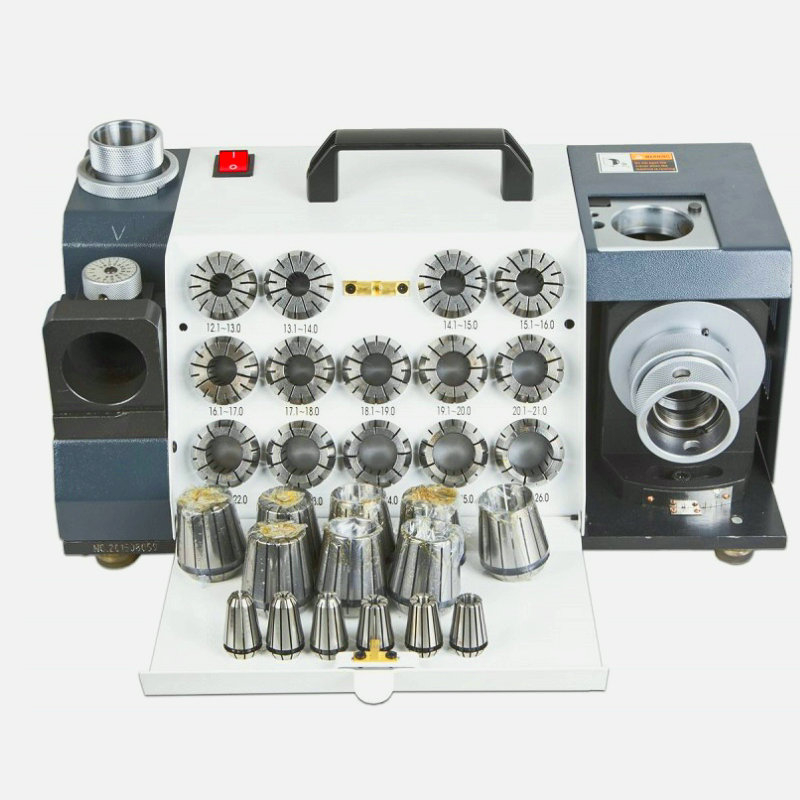

28 pcs. ER 20 and ER 40 collets are part of the standard equipment, also suitable for clamping of intermediate sizes
Allows for grinding of HSS-, carbide or TiN- coated twist drills ranging from 2 – 30 mm
Rotor features precise ball bearings to guarantee smooth operation
Heavy machine construction and rubber feet minimize vibrations
Centre point can be adjusted to all conventional twist drills
Standard accessories:
Grinding wheel CBN
Collets ER 20, 3 – 8 mm, 6 pcs.
Collets ER 40, 9 – 30 mm, 22 pcs. (grading 1 mm)
· Collet holder ER 20 or ER 40
· Tools
