Quality Machine Tools

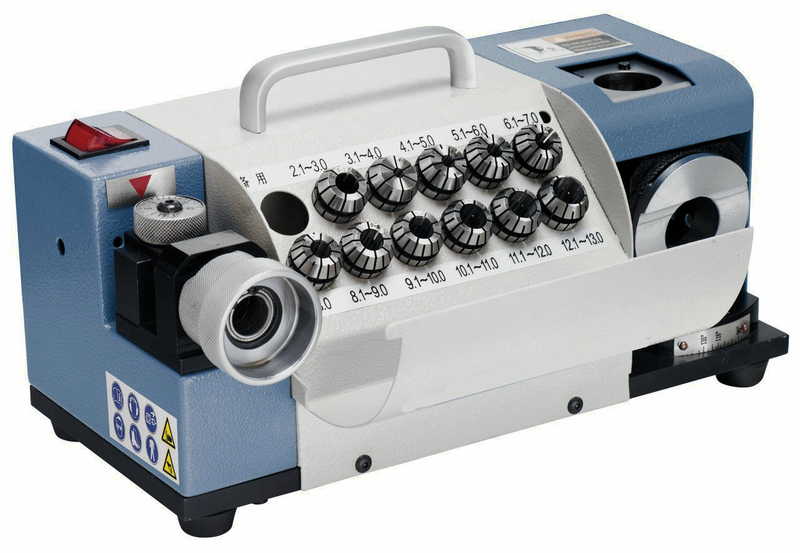

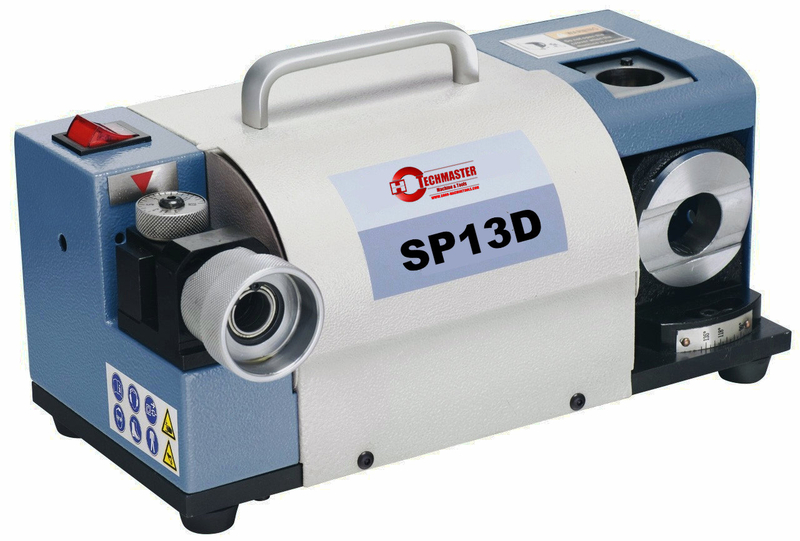

a professional machine ideal for grinding of HSS or carbide twist drills. The adjustable center point of 90° to 135° makes this model universal for twist and sheet metal drills.
MODEL PP 13D SPECIFICATION
Drill diameter | 2 - 13 mm |
Center point | 90° - 135° |
Speed | 5300 rpm |
Motor power | 0,18 kW |
Voltage | 230 V |
Length | 295 mm |
Width | 130 mm |
Height | 160 mm |
Weight approx. | 9,5 kg |
Economic, efficient grinding
Adjustable center point of 90° to 135°
Suitable for HSS or carbide twist drills (2 - 13 mm)
Includes sharpening device for drill bit
Precisely guided collet guarantees best results
ER 20 collets allow clamping of irregular sizes
Standard accessories:
Grinding wheel CBN
Collets ER 20, 3-13 mm, 11 pcs.
(3,0 / 4,0 / 5,0 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 13,0 mm)
Collet holder
Tools
