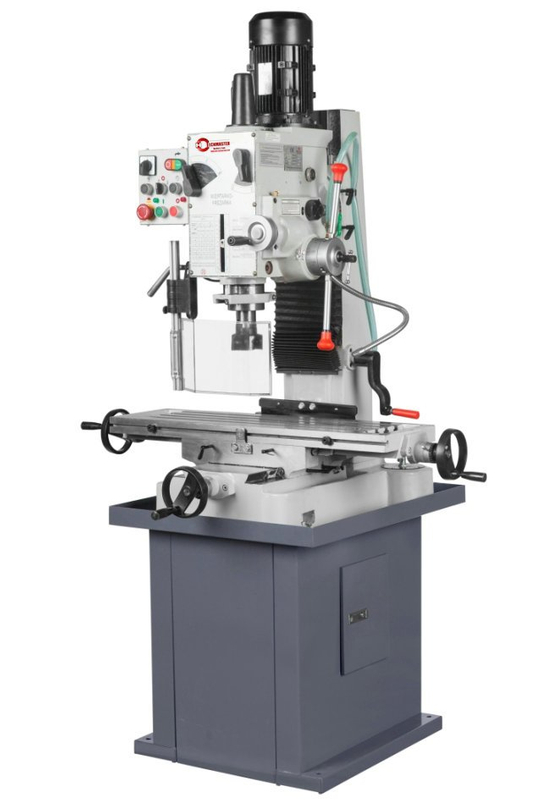

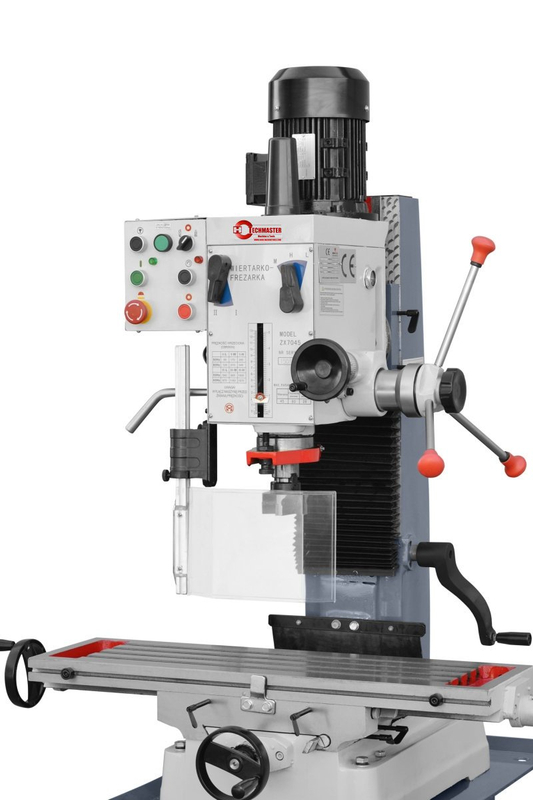

Drilling and milling machine XLZX7045
Quantity: -
Drilling and milling machine XLZX7045
A heavy, stable the milling machine iron casting secures milling high accuracy and precision. The milling machine is equipped with a swivel head.
Machine characteristics
The machine can be used for holes drilling, reaming and broaching up to 45/40 mm in cast iron and threading of bolts up to M12 mm, milling up to 80 mm width as well as notches up to 22 mm. It is also suitable for face milling and cutting. On the machine various accessories can be installed.
- HEAVY, STABLE IRON CASTING
- MILLING MACHINE HEIGHT CONTROLLED ON SLIDE AND NOT ON COLUMN
- MASSIVE CROSS TABLE WITH PRECISELY GROUND SURFACE
- GUIDES IN DOVETAIL SHAPE
- SILENT OPERATION THANKS TO GROUND TOOTHED WHEELS
- LEFT AND RIGHT ROTATIONS
- SWIVEL HEAD +/- 90°
- CONTROLLED HEAD HEIGHT
Technical data
MAXIMUM DRILLING SIZE
45 mm
MAXIMUM FACE DRILLING
80 mm
MAXIMUM CYLINDRICAL-FACE MILLING
28 mm
MAXIMUM THREADING
12 mm
SPINDLE BORE
120 mm
SPINDLE TAPER
MT4
SPINDLE SPEED (MOTOR 6 SPEEDS, 1400 rpm)
95, 170, 280, 540, 960, 1600 min-1
MAX. SPINDLE TAPER DISTANCE FROM TABLE
475 mm
SPINDLE DISTANCE FROM COLUMN SURFACE
260 mm
WORK TABLE DIMENSIONS
820 x 240 mm
TABLE TRAVEL
550 x 200 mm
MOTOR
1100W, 1400 min-1
DIMENSIONS
1140 x 800 x 1040 mm
NET WEIGHT
270 kg
Standard equipment
- Clamp Ø 16 mm

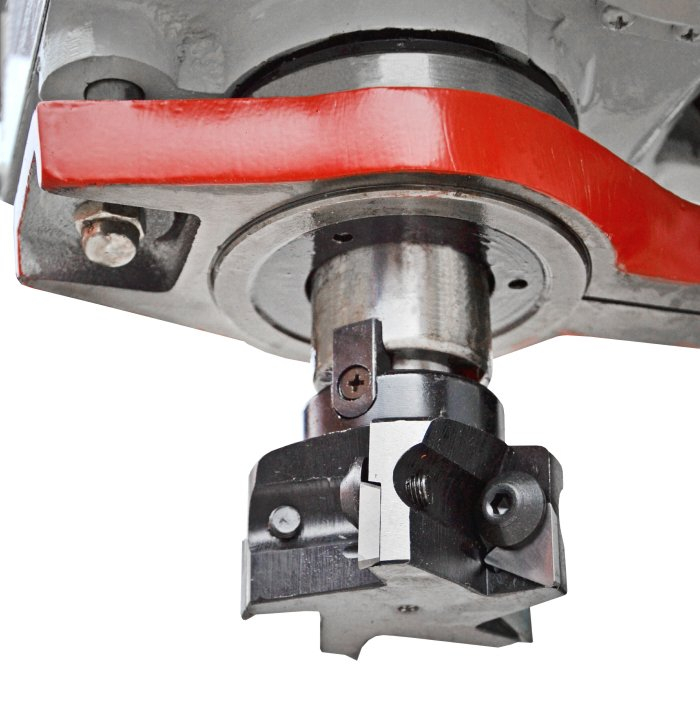

- Milling cutter Ø 80 mm
- Arbor MT3/MT2
- Arbor MT4/MT3
- Wedge
- Allen wrench 4, 5, 6
- Double-ended spanner 24 mm
- Bolt
- Handle
- Arbor MT4/B18
Optional equipment
- Base

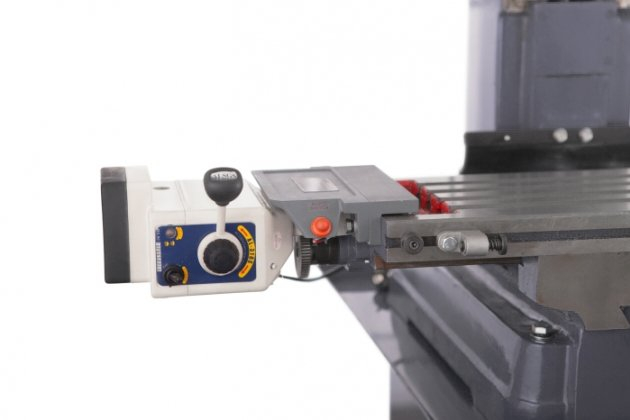

- Electric automatic feed in X axis
- Cooling system
