Drilling and milling machine XZ 6350ZB
Quantity: -

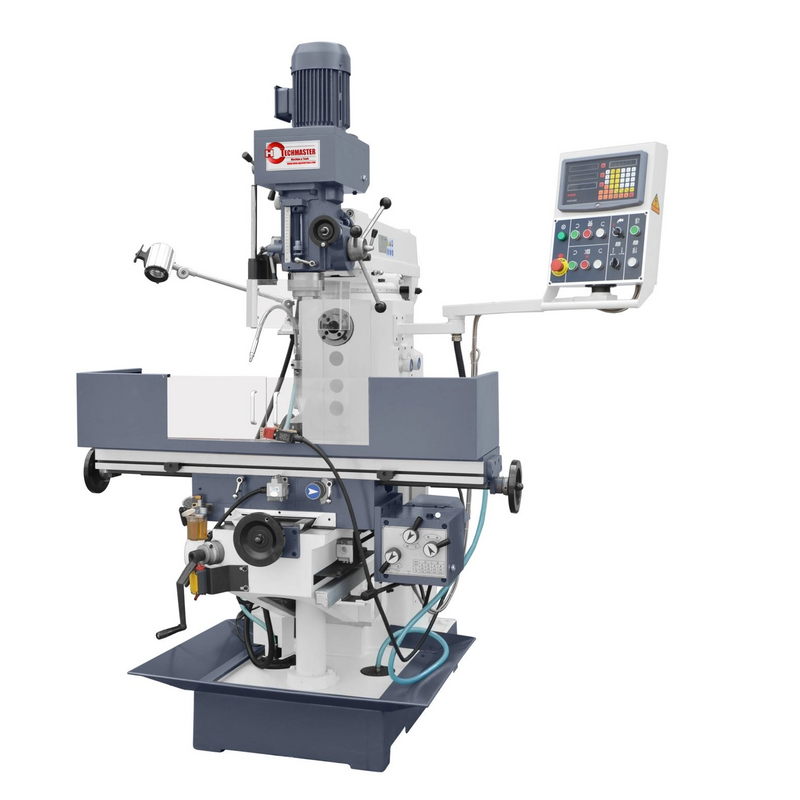

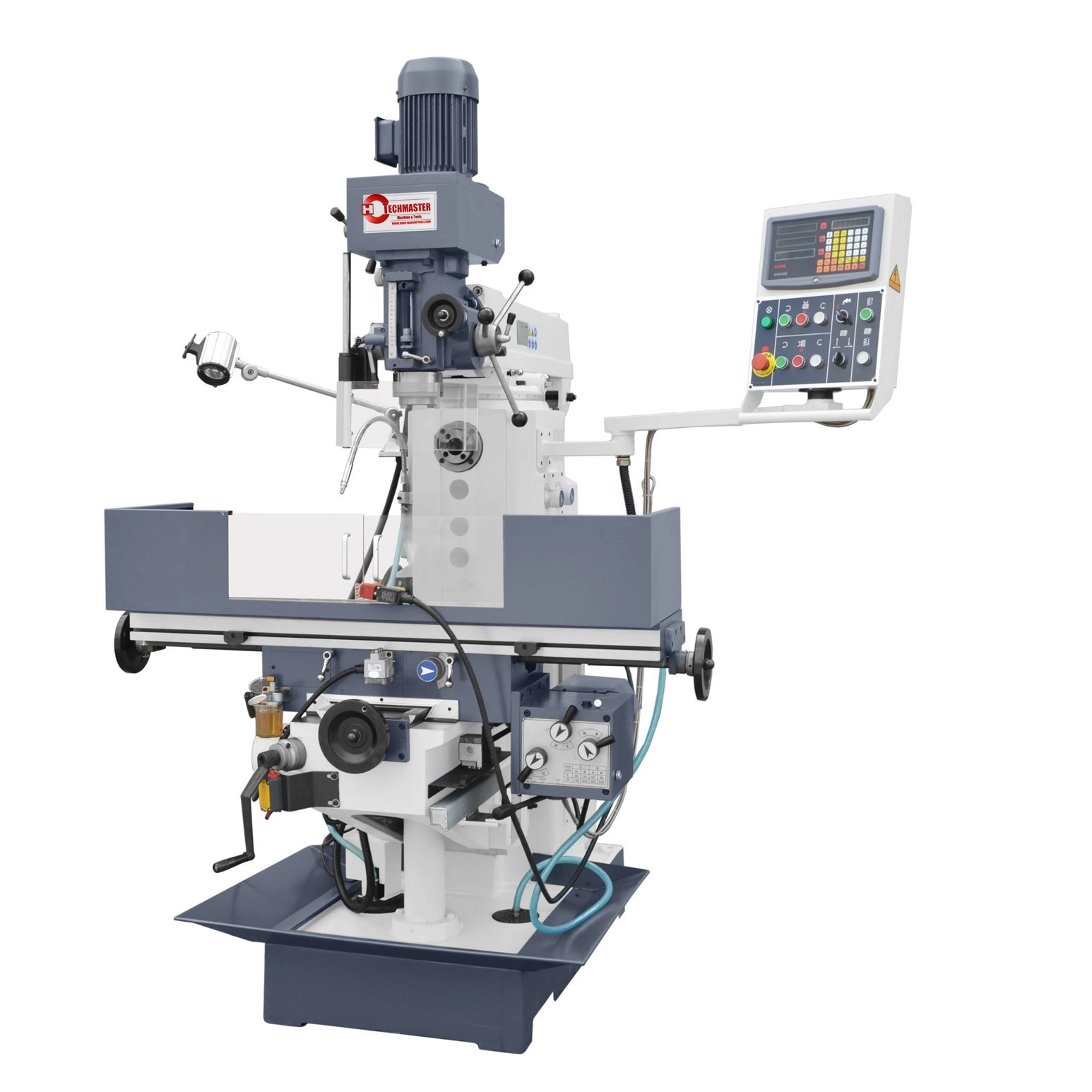

Drilling and milling machine XZ 6350ZB
An universal milling machine with a swivel head and moved out pinole with automatic feed and threading possibility. The milling machine for tool shops and repair divisions.
Machine characteristics
- Milling machine equipped with vertical head and horizontal spindle
- Tool mount taper ISO 40
- Milling machine with working feeds in X and Y axes, and quick setting feed in Z axis

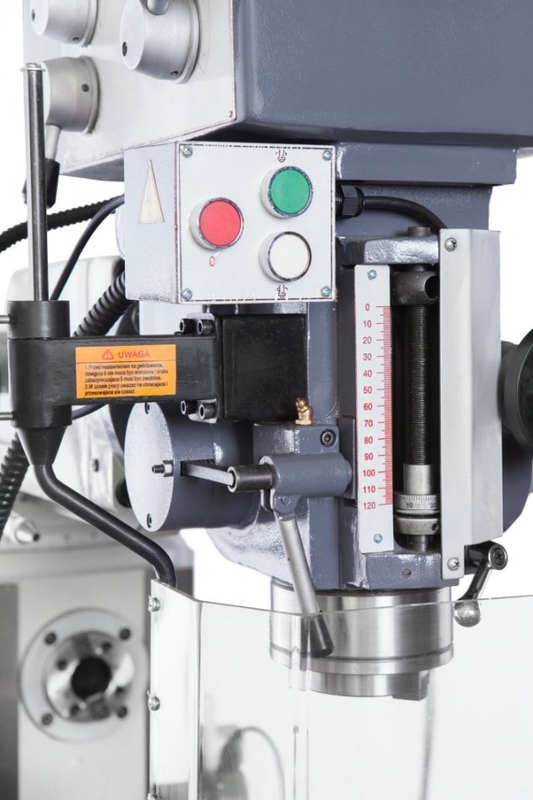

- Vertical head moved out spindle
- Power feed within 3 ranges and possibility of automatic threading
- Vertical swivel head within 0 – 90o
- Extended and swivel upper beam
Technical data
TABLE WORKING DIMENSIONS
1270 mm x 260 mm
TABLE TRAVEL LONGITUDINAL
750(700) mm
TABLE TRAVEL CROSS
270(220) mm
TABLE - COLUMN VERTICAL TRAVEL
340 mm
NUMBER OF T-SLOTS IN TABLE
3
DISTANCE BETWEEN SLOTS
50 mm
MAXIMUM TABLE LOAD
200 kg
VERTICAL HEAD
swivel 90°
SPINDLE
Moved out L - 120 mm
SPINDLE TAPER
ISO 40
SPINDLE POWER FEED
0.08-0.15-0.25 mm/rotation
VERTICAL SPINDLE SPEED
90 - 2000 rpm

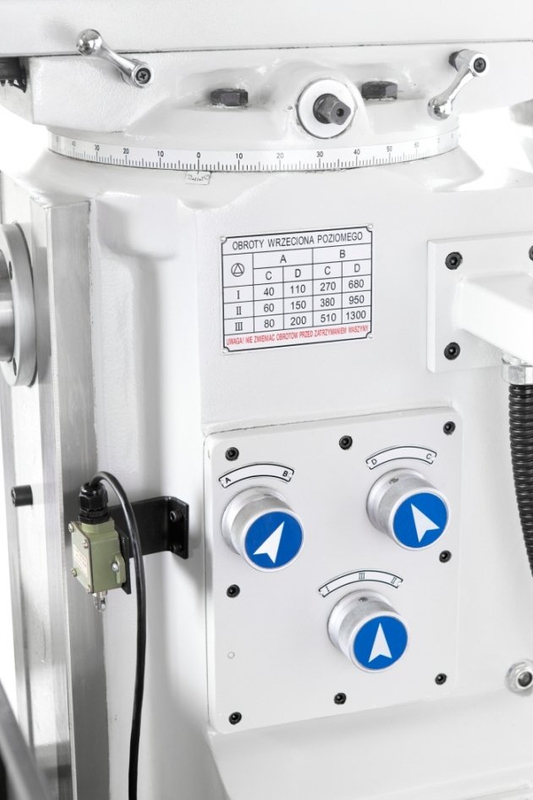

HORIZONTAL SPINDLE SPEED
40- 1300 rpm
TRAVEL LONGITUDINAL
24 - 402 mm/min
CROSS FEED SPEED RANGE
24 - 402 mm/min
RAPID FEED
quick adjustable for Z axis
UPPER BEAM TRAVEL
460 mm
VERTICAL SPINDLE - COLUMN DISTANCE
260 - 740 mm
VERTICAL SPINDLE-TABLE DISTANCE
100 - 440 mm
HORIZONTAL SPINDLE-TABLE DISTANCE
0 - 300 mm
DIGITAL READOUT
for 3 axes
MAIN MOTOR POWER
2.2 kW
OVERALL DIMENSIONS
1520 x 12890 x 2150 mm
WEIGHT
1420 kg
Standard equipment
- Digital readout for 3 axes
- Horizontal spindle rest (rest)
- Long milling arbors 2 pcs
- Work table guard
- Milling arbor with collets set for end mills
- Drill chuck 1 – 16 mm
- Reduction sleeves ISO 40/Morse
- Lighting installation - 24 V
- Cooling system
- Instructions for use in Polish language
- EC Declaration of Conformity
