Drilling and milling machine ZX-40PC
Quantity: -

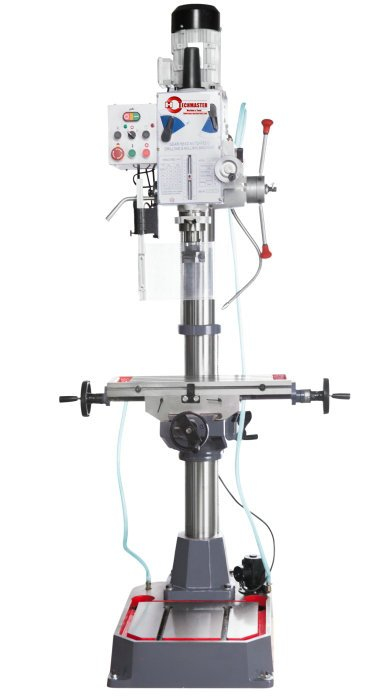

Drilling and milling machine ZX-40PC
The machine can be used for holes drilling, reaming, milling and broaching up to 45/40 mm in cast iron and threading of bolts up to M12 mm, milling up to 80 mm width as well as notches up to 22 mm. It is also suitable for face milling and cutting. On the drilling and milling machine various accessories can be installed.
Machine characteristics
- Machine professionally and solidly made
- Drilling, milling and threading functions
- Automatic spindle feed
- Direct drive from motor
- Automatic change of rotations direction during threading
- Gear transmission immersed in oil
- Spindle precise bearings

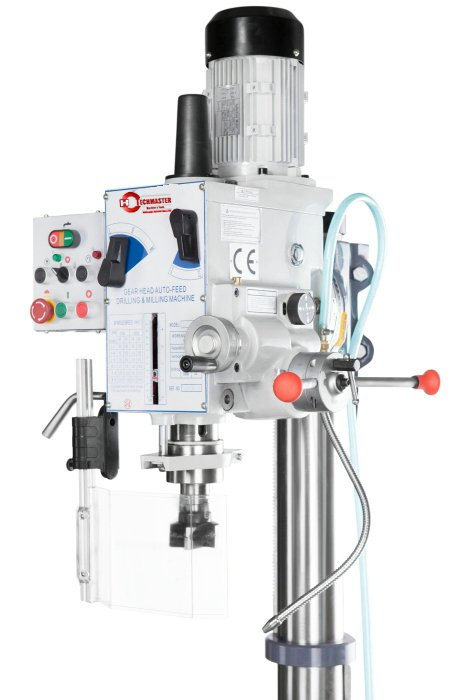

- Head controlled height and drilling angle
- Work table controlled height

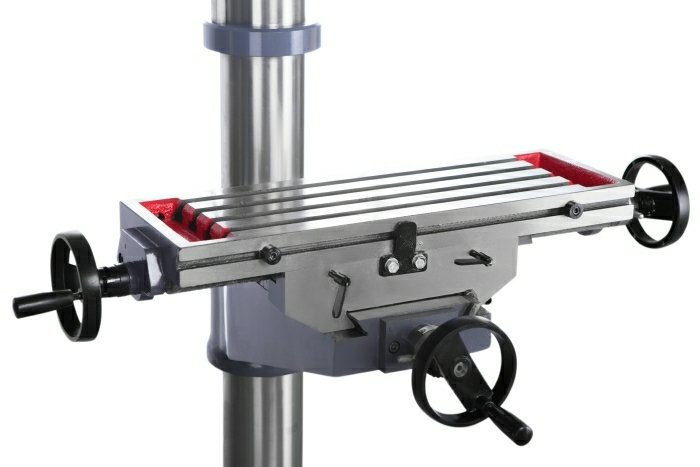

- T-slots in drilling machine massive table.
- Turntable 360o
- Swivel head 45o

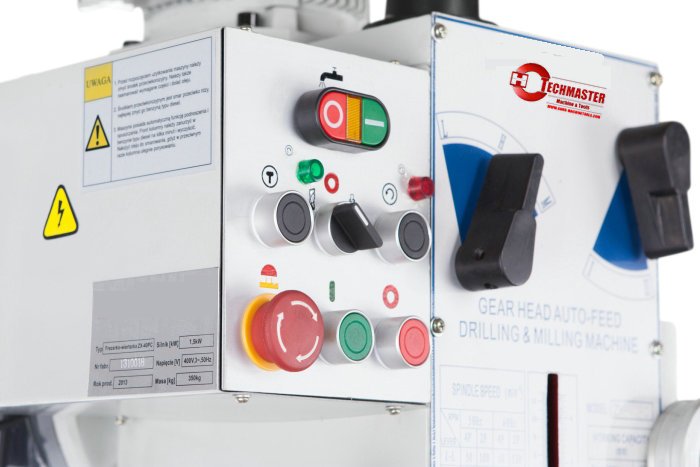

- Safety cut-out switch
- Efficient and silent electric motors
Technical data
Standard equipment
- Clamp Ø 16 mm.
- Milling cutter Ø 80 mm.
- Arbor MT3/MT2.
- Arbor MT4/MT3.
- Wedge.
- Allen wrench 4, 5, 6.
- Double-ended spanner 24 mm.
- Bolt.
- Handle.
- Arbor MT4/B18.
MAXIMUM DRILLING SIZE
40 mm
MAXIMUM FACE DRILLING
80 mm
MAXIMUM CYLINDRICAL-FACE MILL CAPACITY
28 mm
MAXIMUM THREADING
12 mm
SPINDLE BORE
120 mm
SPINDLE TAPER
MK4
SPINDLE SPEED (MOTOR 6 SPEEDS, 1400 rpm )
50, 110, 190, 380, 670, 1250 rpm MAX. SPINDLE TAPER DISTANCE FROM TABLE
745 mm
SPINDLE DISTANCE FROM COLUMN SURFACE
262 mm
WORK TABLE DIMENSIONS
585 x 190 mm
BASE DIMENSIONS
410 x 375 mm
MOTOR
1500 W
DIMENSIONS
800 x 750 x 1850 mm
NET WEIGHT
390 kg
Standard equipment
- Clamp Ø 16 mm
- Milling cutter Ø 80 mm
- Arbor MT3/MT2
- Arbor MT4/MT3
- Wedge
- Allen wrench 4, 5, 6
- Double-ended spanner 24 mm
- Bolt
- Handle
- Arbor MT4/B18
