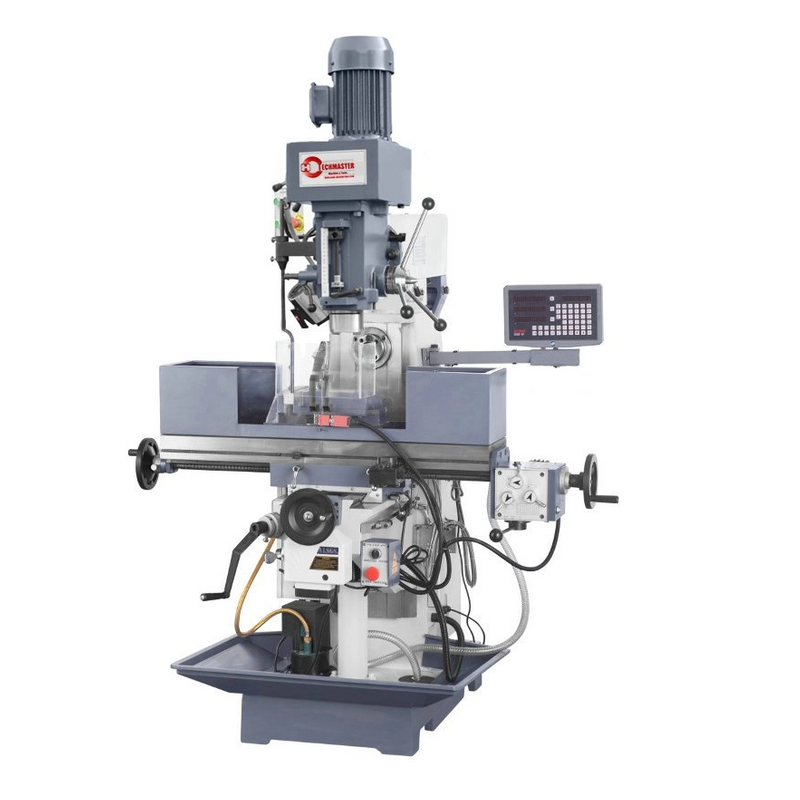

Drilling and milling machine ZX 7550 ZB

Quantity:
  • Drilling and milling machine ZX 7550 ZB

Technical data

TABLE WORKING DIMENSIONS

1000 x 240 mm

TABLE TRAVEL LONGITUDINAL

550 mm

TABLE TRAVEL CROSS

230 mm

TABLE - COLUMN VERTICAL TRAVEL

320 mm

NUMBER OF T-SLOTS IN TABLE

5

DISTANCE BETWEEN SLOTS

45 mm

MAXIMUM TABLE LOAD

100 kg

VERTICAL HEAD

swivel 90°

SPINDLE

vertical – moved out L 120 mm

SPINDLE TAPER

ISO 40

SPINDLE POWER FEED

--------------------------------

VERTICAL SPINDLE SPEED

115 - 1750 rpm

HORIZONTAL SPINDLE SPEED

60 - 1350 rpm

TRAVEL LONGITUDINAL

74 - 720 mm/min

RAPID FEED

for X axis

UPPER BEAM TRAVEL

430 mm

VERTICAL SPINDLE - COLUMN DISTANCE

260 - 680 mm

VERTICAL SPINDLE-TABLE DISTANCE

390 mm

HORIZONTAL SPINDLE-TABLE DISTANCE

40 - 220 mm

LATERAL SPINDLE MOTOR POWER

2,2 kW

VERTICAL SPINDLE MOTOR POWER

1,5 kW

OVERALL DIMENSIONS

1290 x 1220 x 2200 mm

WEIGHT

970 kg
