Drilling and milling machine ZX7550 CW
Quantity: -

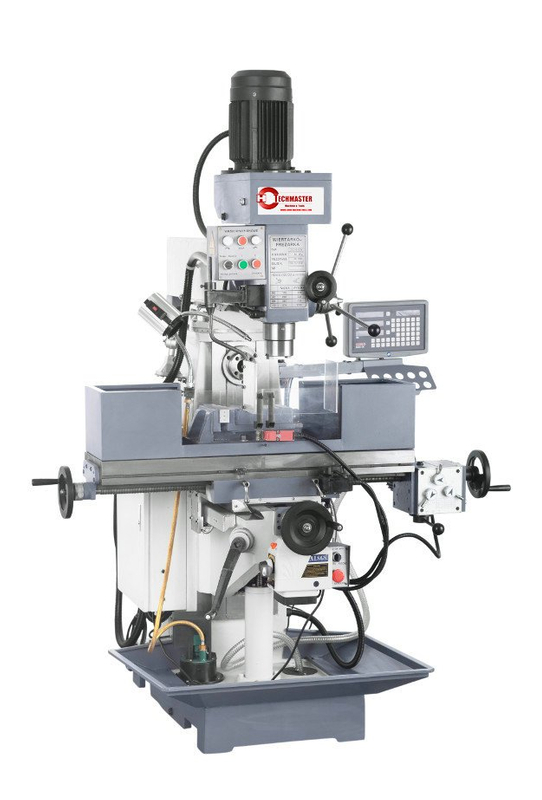

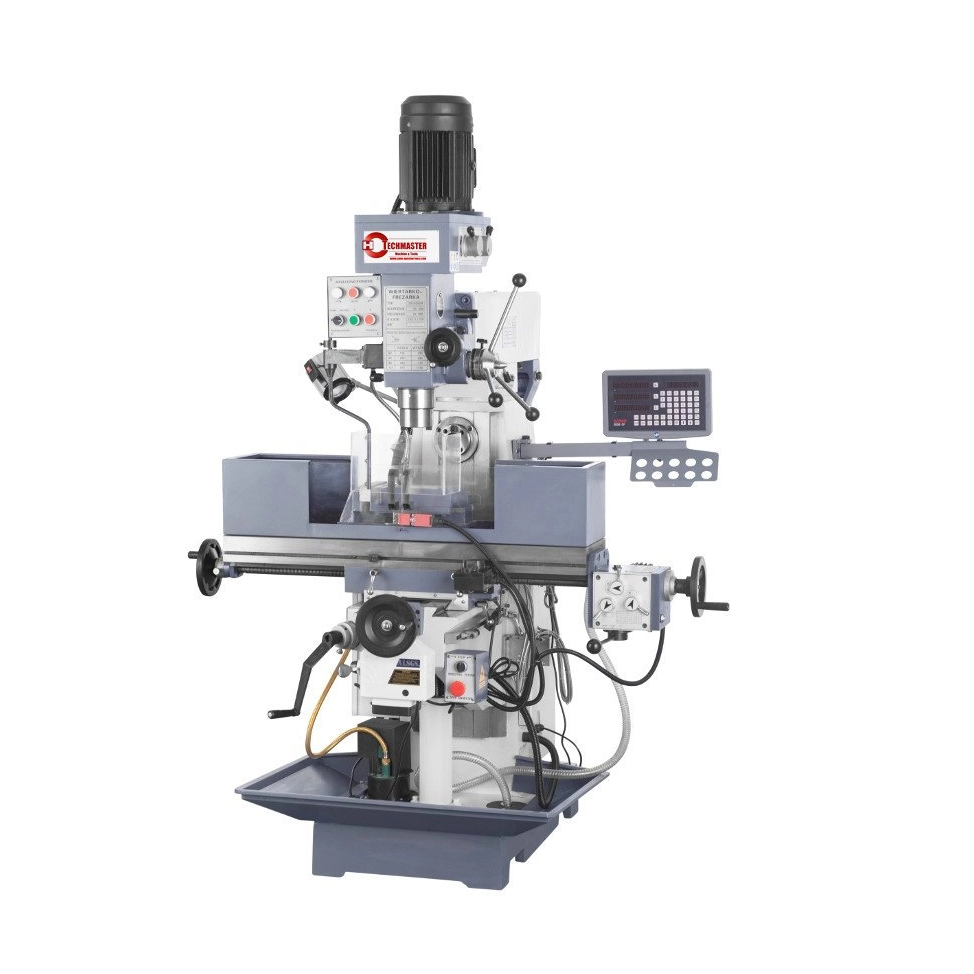

Drilling and milling machine ZX 7550 CW
Machine characteristics

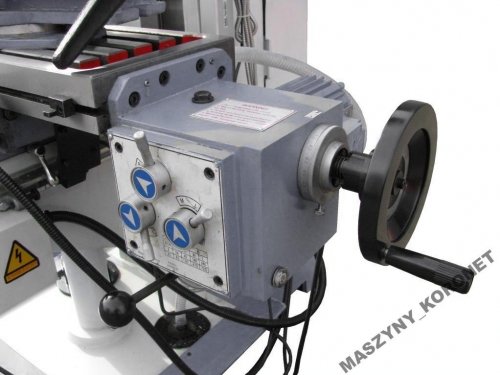

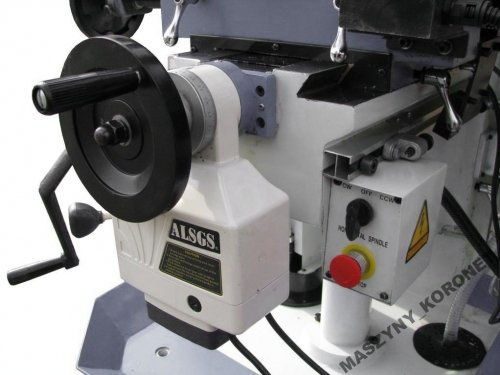

- AUTOMATIC TABLE FEED IN X, Y AXES
- MECHANICAL TABLE FEED IN Z AXIS
- HEAVY, STABLE IRON CASTING, MADE VERY PRECISELY
- MASSIVE CROSS TABLE WITH PRECISELY GROUND SURFACE
- GUIDES IN DOVETAIL SHAPE IN ALL 3 AXES
- SILENT OPERATION THANKS TO GROUND TOOTHED WHEELS
- LEFT AND RIGHT ROTATIONS

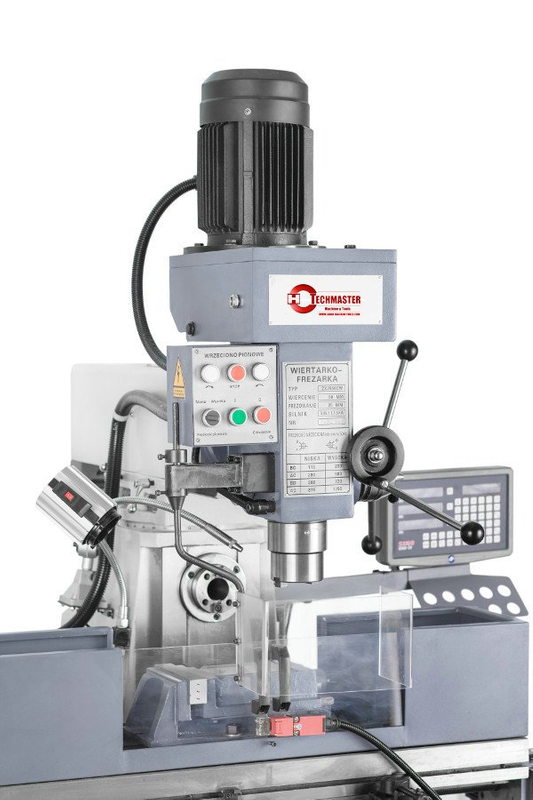

- SWIVEL HEAD +/- 90°
Technical data
TABLE WORKING DIMENSIONS
1000 x 240 mm
TABLE TRAVEL LONGITUDINAL
550 mm
TABLE TRAVEL CROSS
230 mm
TABLE - COLUMN VERTICAL TRAVEL
320 mm
NUMBER OF T-SLOTS IN TABLE
5
DISTANCE BETWEEN SLOTS
45 mm
MAXIMUM TABLE LOAD
100 kg
VERTICAL HEAD
swivel 90°
SPINDLE
vertical – moved out L 120 mm
SPINDLE TAPER
ISO 40
SPINDLE POWER FEED
--------------------------------
VERTICAL SPINDLE SPEED
115 - 1750 rpm
HORIZONTAL SPINDLE SPEED
60 - 1350 rpm
TRAVEL LONGITUDINAL
74 - 720 mm/min
RAPID FEED
for X axis
UPPER BEAM TRAVEL
430 mm
VERTICAL SPINDLE - COLUMN DISTANCE
260 - 680 mm
VERTICAL SPINDLE-TABLE DISTANCE
390 mm
HORIZONTAL SPINDLE-TABLE DISTANCE
40 - 220 mm
LATERAL SPINDLE MOTOR POWER
2.2 kW
VERTICAL SPINDLE MOTOR POWER
1.5 kW
OVERALL DIMENSIONS
1290 x 1220 x 2200 mm
WEIGHT
970 kg
Standard equipment
- Drill chuck 1 – 16 mm
- EC Declaration of Conformity
- Machine vice
- Milling arbor with collets set for end mills
- Horizontal spindle rest (rest)
- Long milling arbors
- Basic tools
- Halogen lighting installation - 24 V
- Cooling system
- TOD in Polish and English languages
