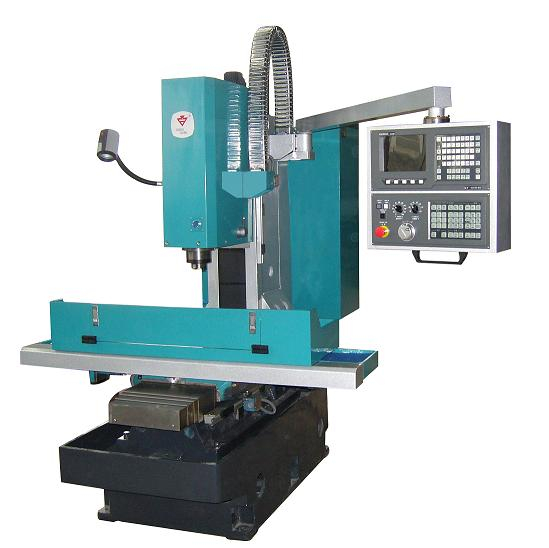

ECONOMICAL CNC MILLING MACHINE XK7125 XK7130
Quantity: -
ECONOMICAL CNC MILLING MACHINE XK7125 XK7130
1. Used for machining box parts, shell parts, disc-shaped parts.
2. Column and guide way is ground precisely with high precision
3. Two style of tool change are available, manually and pneumatically.
4. CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers.
5. Machine stand and machine body are designed separately for easy and flexible installment by user.
Model XK7125 XK7130 WORKTABLE Size of worktable(L×W)(mm) 1000×250 1372×330 T slot(width ×qty×spaces)(mm) 16×3×63 16×3×58 Max loading weight on worktable(kg) 120 600 TRAVEL X/Y/Z-Axis travel(mm) 535×320×375 820×420×480 Distance between spindle nose and table(mm) 50-425 60-540/40-520 Distance between spindle center and column(mm) 345 486 SPINDLE Spindle speed(r/min) 100-4000(6000/8000) 100-4000(6000/8000) Spindle taper BT30 BT30/BT40 Tool clamping way Manual Pneumatic ATC capacity(optional) Optional 10 FEEDING Feeding speed(mm/min) 0-2000 0-2000 Rapid feeding speed:X,Y,Z axis(m/min) 12 12 ACCURACY Positioning accuracy(mm) ±0.008 ±0.008 Repeatability accuracy(mm) ±0.005 ±0.005 Min.set unit(mm) 0.001 0.001 MOTOR Main motor power (kw) 1.5/2.2 2.2/3.7 Feeding motor power:X/Y/Z Axis(kw) 1/1/1.5 1/1/1.5 TOOLS Max.size of tool(mm) Φ60×175 Φ60×250/Φ80×250 Max.loading weight of Tool(kg) 3.5 3.5/7 OTHERS N.W(include machine stand)(kg) 1700 2400 Overall size(L×W×H)(mm) 1516×1764×1708 1980×1780×2270 Packing size(L×W×H)(mm) 2250×1910×2280 2280×2030×2480 Loading amount(20") 3sets 3sets
