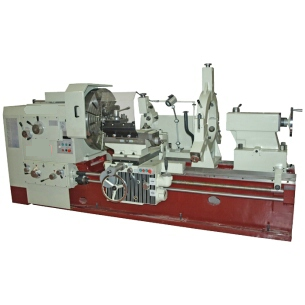

BIG PIPE LATHE TGPB1400/635X3000
Distance between centers (mm) | 1500~16000 |
Diametral pitch | 56, 0,5-60 |
Main spindle pitch (mm) | 56, 60-0,5 |
Diameter tailstock quill (mm) | 120 |
Tailstock spindle travel (mm) | 250 |
Tailstock morse taper | Morse nº6 |
Power main motor (Kw) | AC 18,5 |
Dimensions (mm) (length x width x height) | 5150x1600x1600 |
Whitworth pitch per inch | 56, 30-1/4 |
Metric pitch | 56,1-120 |
Swing over bed (mm) | 1030 |
Swing over ram (mm) | 1350 |
Swing over carriage (mm) | 720 |
Bed width (mm) | 600 |
Main spindle hole (mm) | 100 |
Spindle nose | A2-11 |
Speed number | variador |
