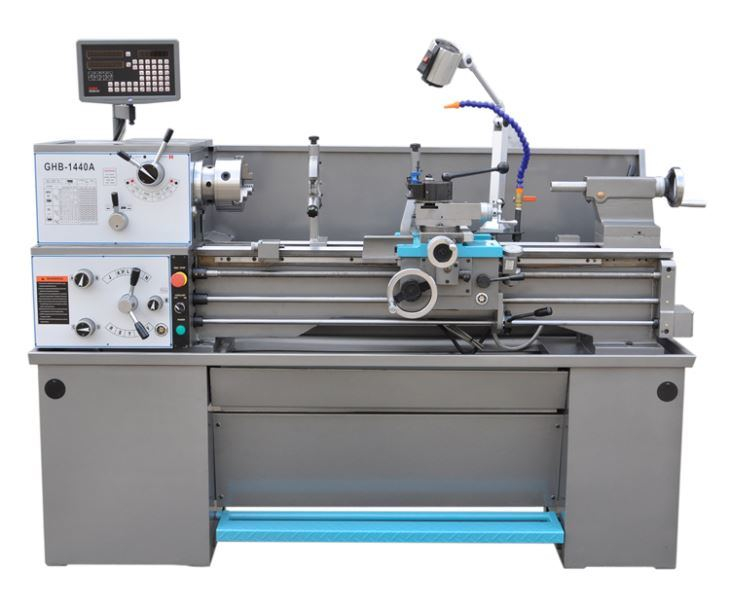

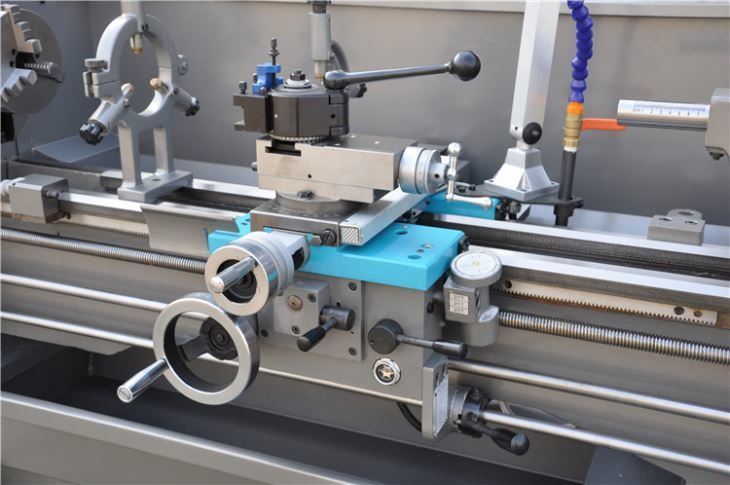

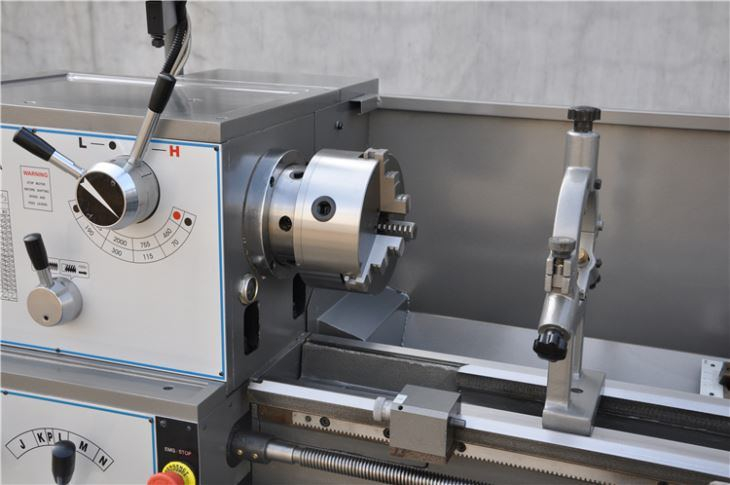

GHB1340A-GHB1440A
ITEMS | GHB-1440A |
Max. swing over bed | 360mm |
Over slide | 215mm |
In gap | 506mm |
Width of bed | 186mm |
Max. length of workpiece | 1000mm |
Taper of spindle bore | M.T.NO.5 |
Dia. of spindle hole | 38mm |
Number of spindle speeds | 8 |
Range of spindle speeds | 70-2000rpm |
Spindle nose | D4 |
Metric thread | 0.45-10mm |
Inch thread | 3-1/2-80T.P.I/38 |
Longitudinal feed range | 0.0018~0.0374in/r |
Transversal feed range | 0.0006~0.0130in/r |
Max. travel of tailstock quill | 95mm |
Taper hole of tailstock quill | M.T.NO.3 |
Power of main motor | 2HP(1.5KW) |
Gross weight | 550/680kg |
STANDARD DEVICES OR ACCESSORIES | | | ||
ITEMS | REMARK | |||
1. Main motor | China brand | |||
2. Spindle bearing | China brand | |||
3. Main electrical component | German brand | |||
4. Coolant pump | China brand | |||
5. Stead rest | China brand | |||
6. Follow rest | China brand | |||
7. 4-way tool post | | |||
8. Tailstock | | |||
9. 3-jaw chuck | 160mm | |||
10. 4-jaw chuck | 200mm | |||
11. Face plate | 300mm | |||
12. Working light | | |||
13. Foot brake | | |||
14. Splash guard( below 2000mm: overall length; 3000mm: moved) | | |||
15. Tool box including: | ||||
1) Flat screw driver | 3" | |||
2) Cross screw driver | 3" | |||
3) Open ended wrench | 9/11,10/12,12/14,17/19 | |||
4) Hex socket wrench | 2.5,3,4,5,6,8 | |||
5)Shear pin | | | | |
6) Change gear | a*METRIC m=1.25,Z=30,32,40,65,66,70(Z=30,60,120/127 mounted on lathe) | |||
| b*IMPERIAL m=1.25,Z=40,45,50,50 (Z=30,60,120/127 mounted on lathe) | |||
7) Taper dead center | Morse NO.3 | |||
8) Live center | Morse NO.3 | |||
9) Spindle sleeve | Morse NO.5/3 | |||
10) Chuck key | | |||
11) Key for cam locks | | |||
12) Tool post wrench | | |||
13) Oil gun | | |||
14) Paint can | | |||
15) Pads | | |||
16) Operator's manual | | |||
17) Pads | | |||
19) Pads | | |||
The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation. |
OPTIONAL DEVICES OR ACCESSORIES | | | ||
ITEMS | REMARK | |||
Chuck guard | China brand | |||
Tool post guard | China brand | |||
Curtain guard | China brand |
