ESR-1300X1.5E
Quantity: odel ESR-1300X1.5E Max rolling thickness 1.5 mm. Max rolling width 1300 mm. Dia. Of roller 60 mm. Motor power 0.75 kw Packing size 190X55X110 cm. N.W./G.W. 270-340 kg
Product Description

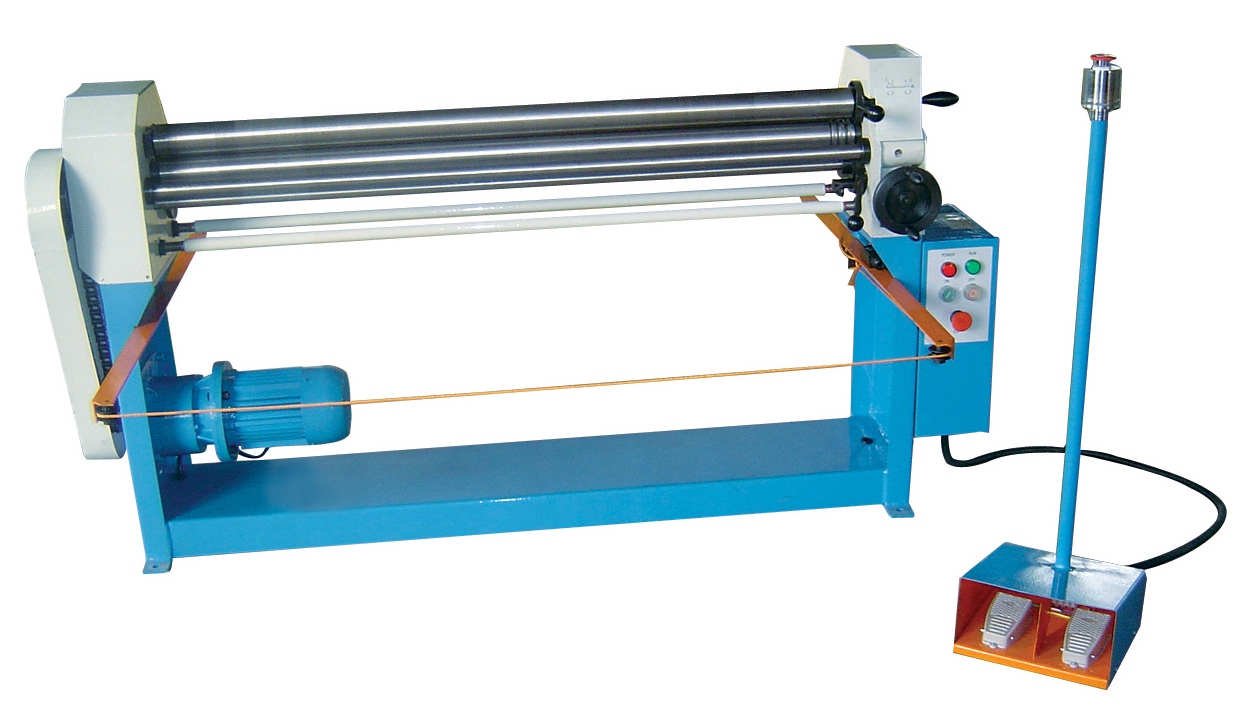

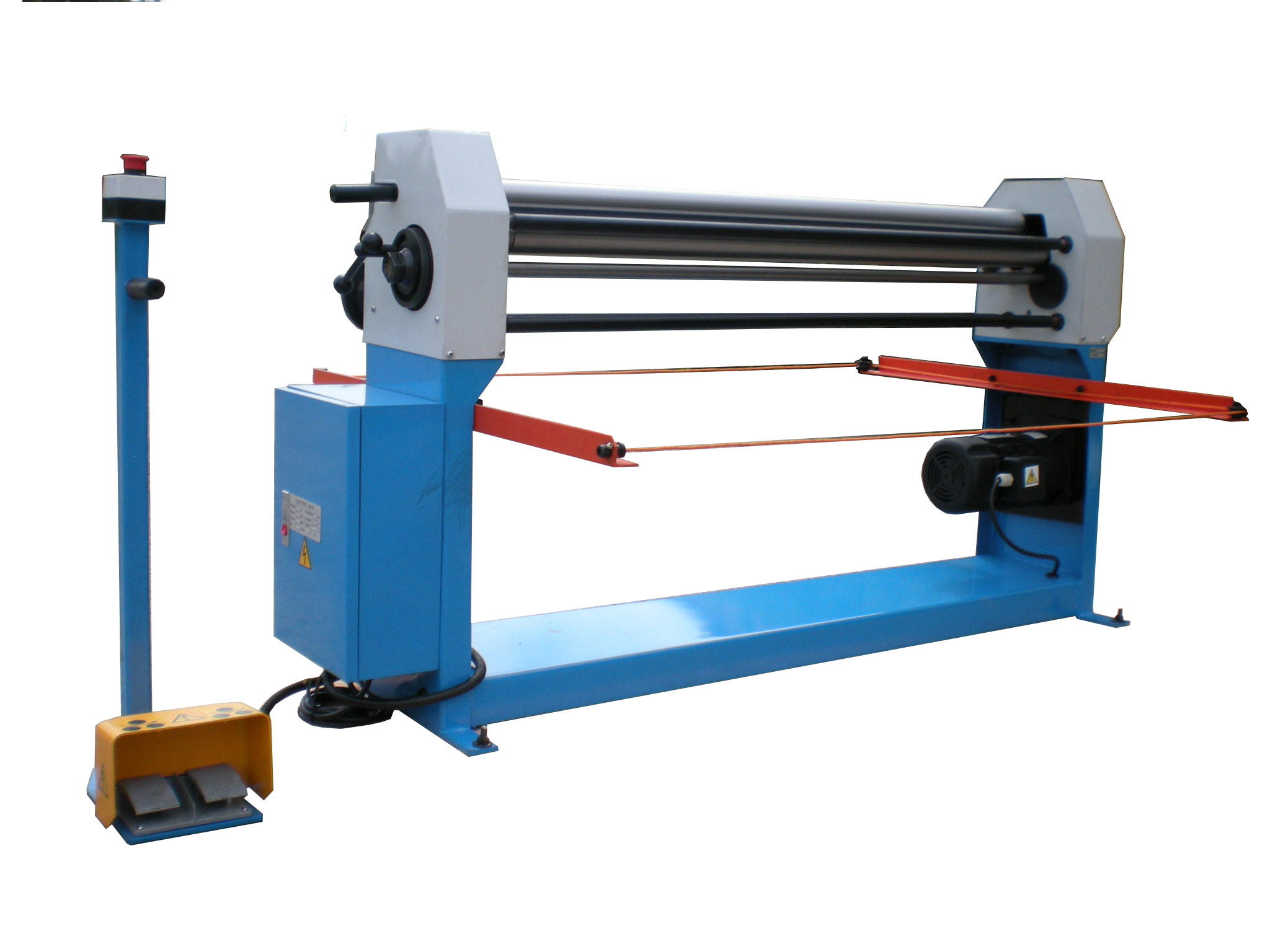

Electric slip roll machine (ESR-1300X1.5)
Features:
1. Asymmetrical roll bending machine with 3rolls
2. High strength steel rolls
3. Fixed top roller, adjustable lower and rear rollers
4. Standard series wire core groove
5. Top roll swings out across cam lock
6. Supplied with conical bending feature
Before connecting machine into local 3-phase AC source at your plant, please
Double check same voltage and phase.
· Connect the AC source with machine cable which has 4 wires, correctly, the ground
Wire must to be connected with ground.
· After connecting AC source to shaft motor rotation is in the correct rotation direction
As per the arrow on the motor.
· If wrong direction, please immediately stop motor to avoid motor damage. Please
Correct your connecting at AC source until motor rotation direction is in correct
Direction.Model ESR-
1300X1.5ESR-
1020X2ESR-
1300X1.5EESR-
1300X2.5ESR-
1300X4.5ESR-
1550X3.5ESR-
2020x3.0Max rolling thickness (mm) 1.5 2.0 1.5 2.5 4.5 3.5 3.0 Max rolling width (mm) 1300 1020 1300 1300 1300 1550 2020 Motor power (kw) 1.5 1.5 1.5 1.5 2.2 2.2 4.0 Packing dimension (cm) 190X55X110 174X70X126 190X55X110 180X64X100 181X64X105 206X64X105 253X64X105 N.W/G.W (kg) 280/340 260/300 280/340 470 660 750 950
