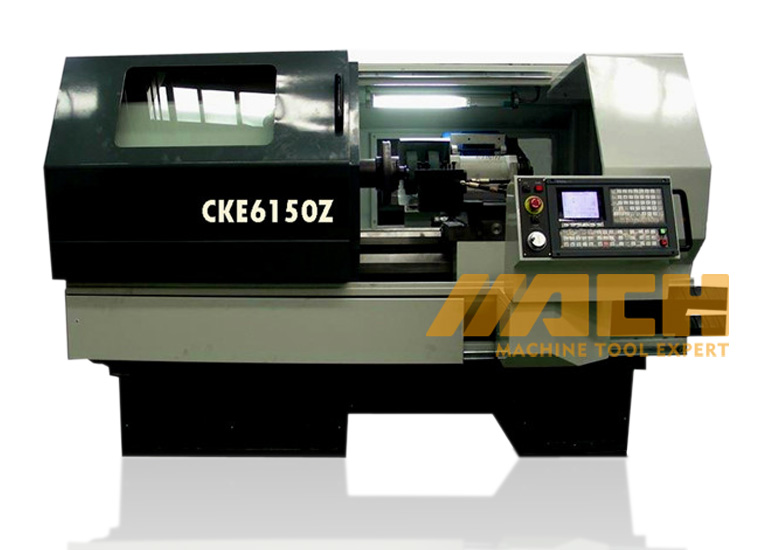

Economic CNC Lathe Model: CKE6150/56/66Z
Quantity: -
Economic CNC Lathe Model: CKE6150/56/66Z
MAIN FEATURES
1. Construction casting molded with resin sand of bed,headstock,saddle plinth,ect
2. Turcite-B coated on mating surfaces between saddle and guideways
3. Precision ballscrew,high rigidity precision compound bearings ensure accurate positioning and efficient
driving.Centralized oil lubricator providing forced automatic lubrication onto ballscrew,mating surfaces
4. High spindle speed with wide variable speed ranges.Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the machine.CKE-i series with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
5. Flexible control panel enables convenient tool setting.
6. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.

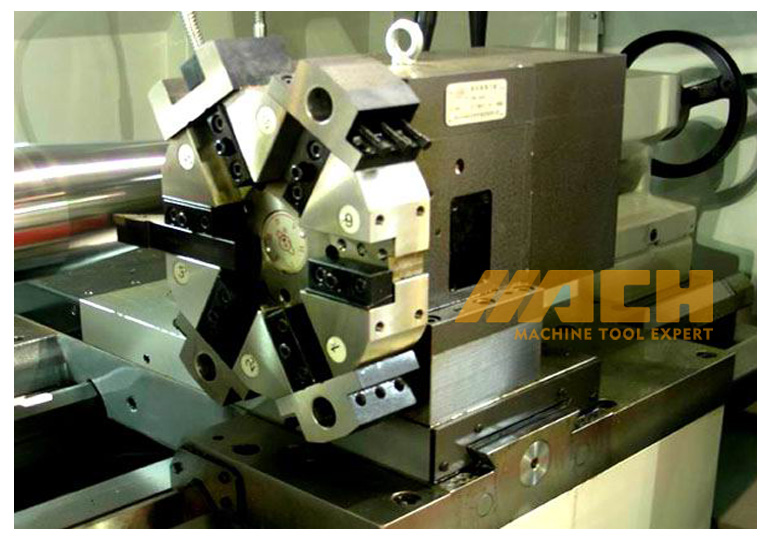

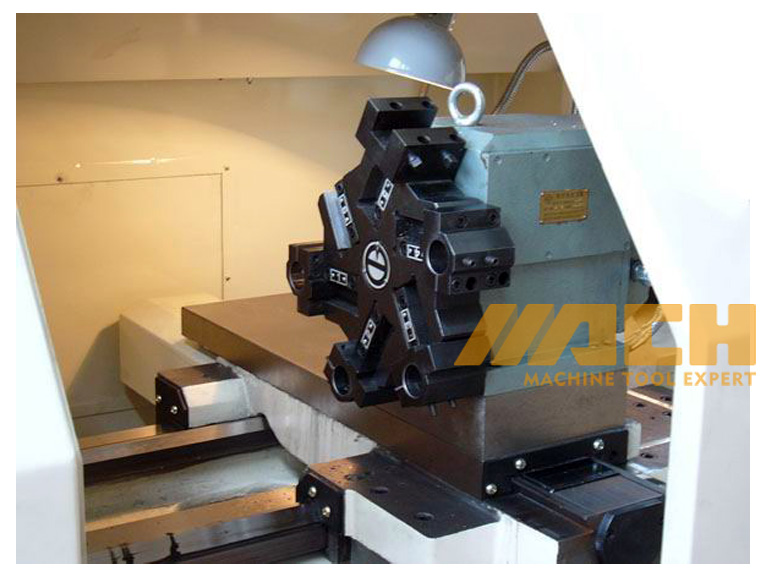

7. Vertical 4-p toolpost,horizontal 6-p toolpost,quick change toolpost,etc are available for your selection.
8. Optional,pneumatic,hydraulic chuck and tailstock are available.
9. FANUC,SIEMENS,FAGOR,GSK,etc control systems can be appointed E-handwheel function can also be equipped.
Item CKE6150i CKE6150Z CKE6156Z CKE6166Z Max. swing over bed(mm) mm 500 500 560 660 Width of bed (mm) mm 400 400 400 400 Max. length of work piece (mm) mm 750~1000 750~2000 750~2000 750~2000 Max. swing over slide(mm) mm 280 280 330 430 X travel (mm) mm 280 280 305 305 Z travel (mm) mm 680~930 680~1930 680~1930 680~1930 Spindle nose 聽 A2-8 D8 D8 D8 Chuck size (mm) mm 250 250 250 315 Taper of spindle bore 聽 1:20 1:20 1:20 1:20 Spindle bore (mm) mm 82 82 82 82 Spindle speed (Frequency conversion motor) r/min 30-3000(Servo motor) 7-135
30-550
110-22007-135
30-550
110-22007-135
30-550
110-2200Steps of spindle speed 聽 step less 3-step actuator 3-step actuator 3-step actuator Frequency conversion motor power (kW) kw 11/15(Servo motor) 7.5 7.5 7.5 Rapid traverse X/Z (m/min) m/min 6/10 6/10 6/10 6/10 Vertical 4-position Tool post changing time (s) mm 2.4 2.4 2.4 2.4 Horizontal 6-position Tool post changing time(s) s 3 3 3 3 Diameter of tailstock quill (mm) mm 75 75 75 75 Travel of tailstock quill (mm) mm 150 150 150 150 Taper of tailstock quill 聽 M5 M5 M5 M5
STANDARD ACCESSORIES
Inverter Motor Control Spindle (Automatic changes)Concentrated Lubrication Device (Can be controlled by Programs)Headstock Independent Lubricate SystemMachine LightCoolant System3-jaw chuckTool KitOil Gun 90 Degree Movable Control ConsoleVertical 4-Station Electric TurretOPTIONAL ACCESSORIES
Servo spindle motor and drive packageDoor interlockChuck guard with swithCE electricsHorizontal 6-Station Turret250mm hydraulic chuck (through-hole)Hydraulic tailstockHydraulic stationSteady rest Dia:30-200mmLive Center M5Anti-vibration pads
