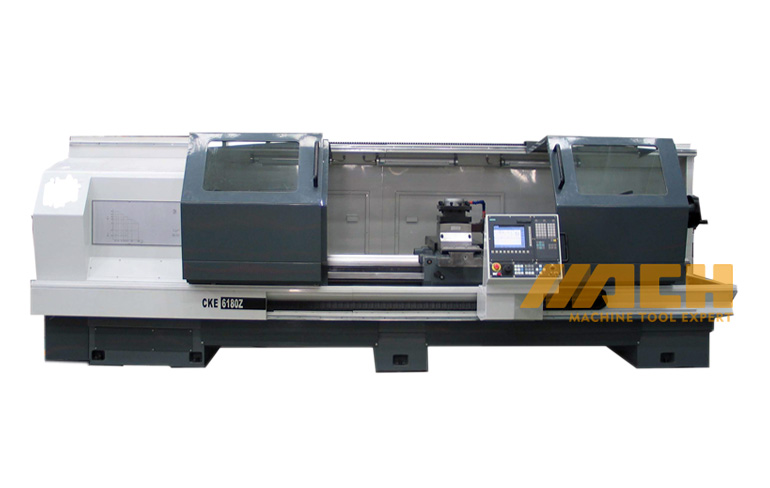

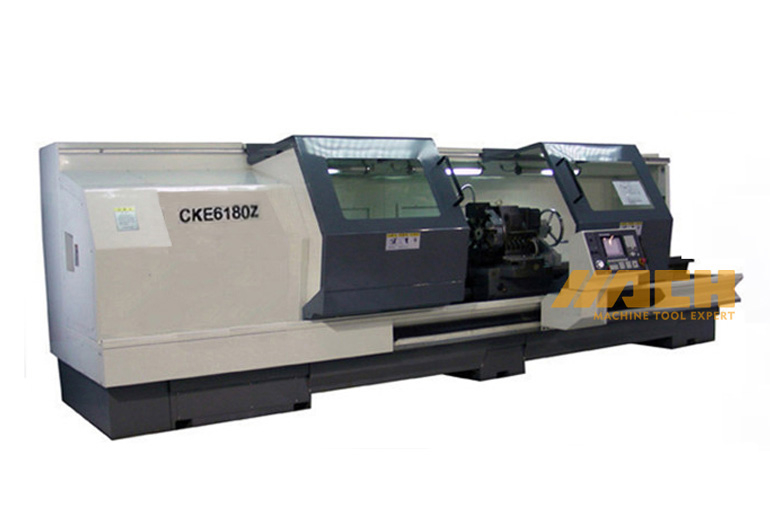

Economic CNC Lathe Model: CKE6163/80Z
Quantity: -
Economic CNC Lathe Model: CKE6163/80Z
MAIN FEATURES
1. Construction casting molded with resin sand of bed,headstock,saddle plinth,ect2. Turcite-B coated on mating surfaces between saddle and guideways
3. Precision ballscrew,high rigidity precision compound bearings ensure accurate positioning and efficient
driving.Centralized oil lubricator providing forced automatic lubrication onto ballscrew,mating surfaces4. High spindle speed with wide variable speed ranges.Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the machine.
5.CKE-i series with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
6. Flexible control panel enables convenient tool setting.
7. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
Item CKE6163Z CKE6180Z Max. swing over bed(mm) mm 630 800 Width of bed (mm) mm 550 550 Max. length of work piece (mm) mm 1000~4000 1000~4000 Max. swing over slide(mm) mm 320 490 X travel (mm) mm 320 420 Z travel (mm) mm 790~3790 790~3790 Spindle nose
C11 C11 Chuck size (mm) mm 400 400 Taper of spindle bore
1:20 1:20 Spindle bore (mm) mm 100 100 Spindle speed (Frequency conversion motor) r/min 40-178
71-310
124-556
222-100040-178
71-310
124-556
222-1000Steps of spindle speed
4-step actuator 4-step actuator Frequency conversion motor power (kW) kw 11 11 Rapid traverse X/Z (m/min) m/min 4/8 4/8 Vertical 4-position Tool post changing time (s) mm 2.6 2.6 Horizontal 6-position Tool post changing time(s) s 3 3 Diameter of tailstock quill? (mm) mm 100 100 Travel of tailstock quill (mm) mm 240 240 Taper of tailstock quill
M5 M5 STANDARD ACCESSORIES

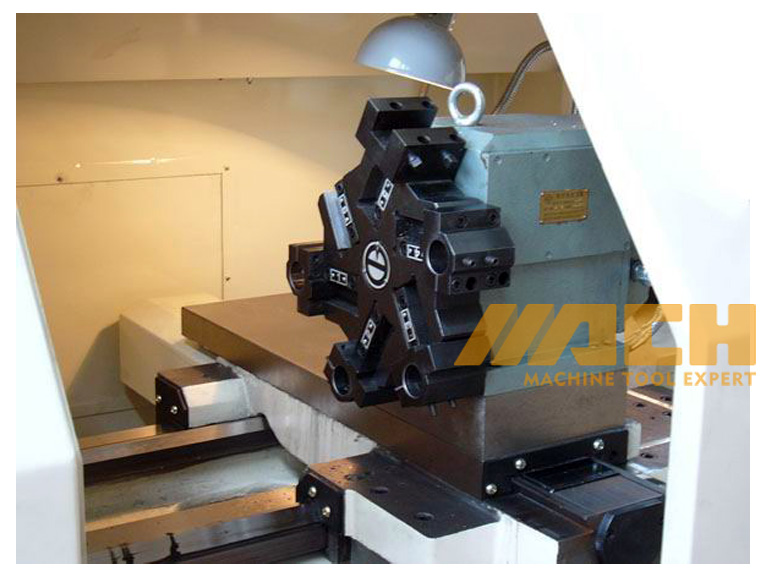

Inverter Motor Control Spindle (Automatic changes)Concentrated Lubrication Device (Can be controlled by Programs)Headstock Independent Lubricate SystemMachine LightCoolant System3-jaw chuckTool KitOil Gun 90 Degree Movable Control ConsoleVertical 4-Station Electric TurretOPTIONAL ACCESSORIES

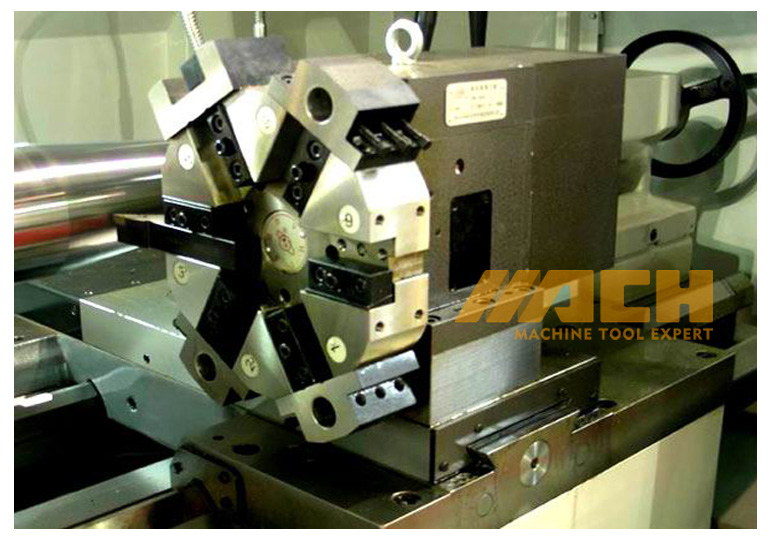

Servo spindle motor and drive packageDoor interlockChuck guard with swithCE electricsHorizontal 8-Station TurretHydraulic chuck (through-hole)Hydraulic tailstockHydraulic stationSteady restLive Center M6Anti-vibration padsMAIN FEATURES
1. Construction casting molded with resin sand of bed,headstock,saddle plinth,ect2. Turcite-B coated on mating surfaces between saddle and guideways
3. Precision ballscrew,high rigidity precision compound bearings ensure accurate positioning and efficient
driving.Centralized oil lubricator providing forced automatic lubrication onto ballscrew,mating surfaces4. High spindle speed with wide variable speed ranges.Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the machine.
5.CKE-i series with independent spindle strcture and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
6. Flexible control panel enables convenient tool setting.
7. Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
Item CKE6163Z CKE6180Z Max. swing over bed(mm) mm 630 800 Width of bed (mm) mm 550 550 Max. length of work piece (mm) mm 1000~4000 1000~4000 Max. swing over slide(mm) mm 320 490 X travel (mm) mm 320 420 Z travel (mm) mm 790~3790 790~3790 Spindle nose
C11 C11 Chuck size (mm) mm 400 400 Taper of spindle bore
1:20 1:20 Spindle bore (mm) mm 100 100 Spindle speed (Frequency conversion motor) r/min 40-178
71-310
124-556
222-100040-178
71-310
124-556
222-1000Steps of spindle speed
4-step actuator 4-step actuator Frequency conversion motor power (kW) kw 11 11 Rapid traverse X/Z (m/min) m/min 4/8 4/8 Vertical 4-position Tool post changing time (s) mm 2.6 2.6 Horizontal 6-position Tool post changing time(s) s 3 3 Diameter of tailstock quill? (mm) mm 100 100 Travel of tailstock quill (mm) mm 240 240 Taper of tailstock quill
M5 M5 STANDARD ACCESSORIES
Inverter Motor Control Spindle (Automatic changes)Concentrated Lubrication Device (Can be controlled by Programs)Headstock Independent Lubricate SystemMachine LightCoolant System3-jaw chuckTool KitOil Gun 90 Degree Movable Control ConsoleVertical 4-Station Electric TurretOPTIONAL ACCESSORIES
Servo spindle motor and drive packageDoor interlockChuck guard with swithCE electricsHorizontal 8-Station TurretHydraulic chuck (through-hole)Hydraulic tailstockHydraulic stationSteady restLive Center M6Anti-vibration pads
