Quality Machine Tools
Engineer Series C0 Micro Lathe
In stock - get it tomorrow, Saturday 11th Mar, order within 11 hours and choose Premium delivery
Collect in store, we'll confirm your reservation within 1 hour.

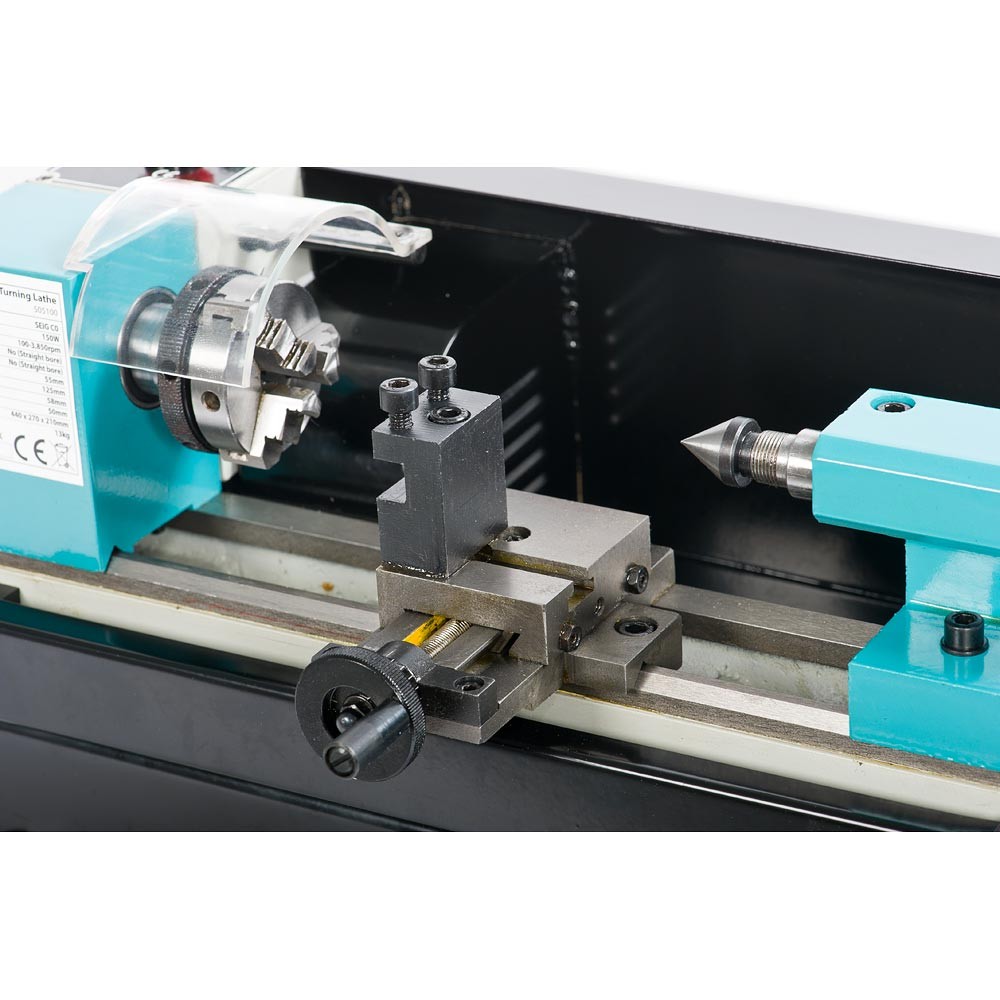

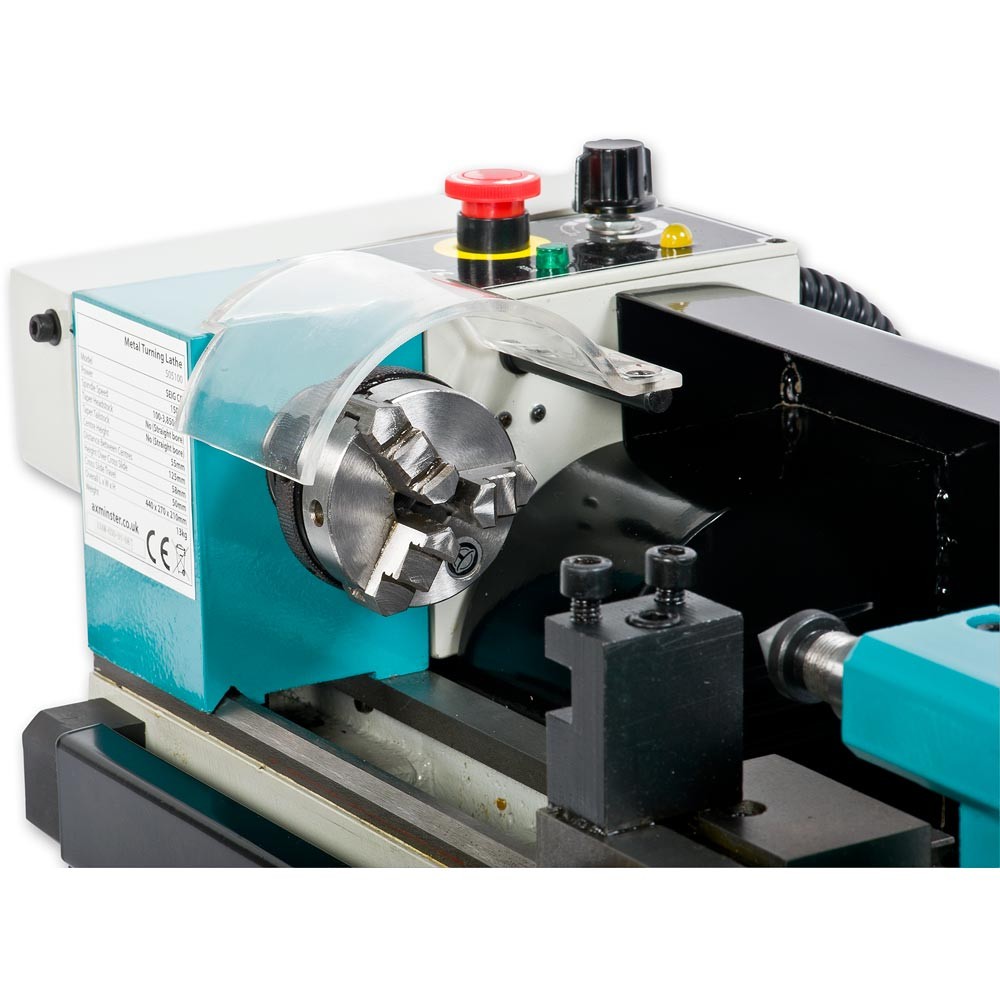

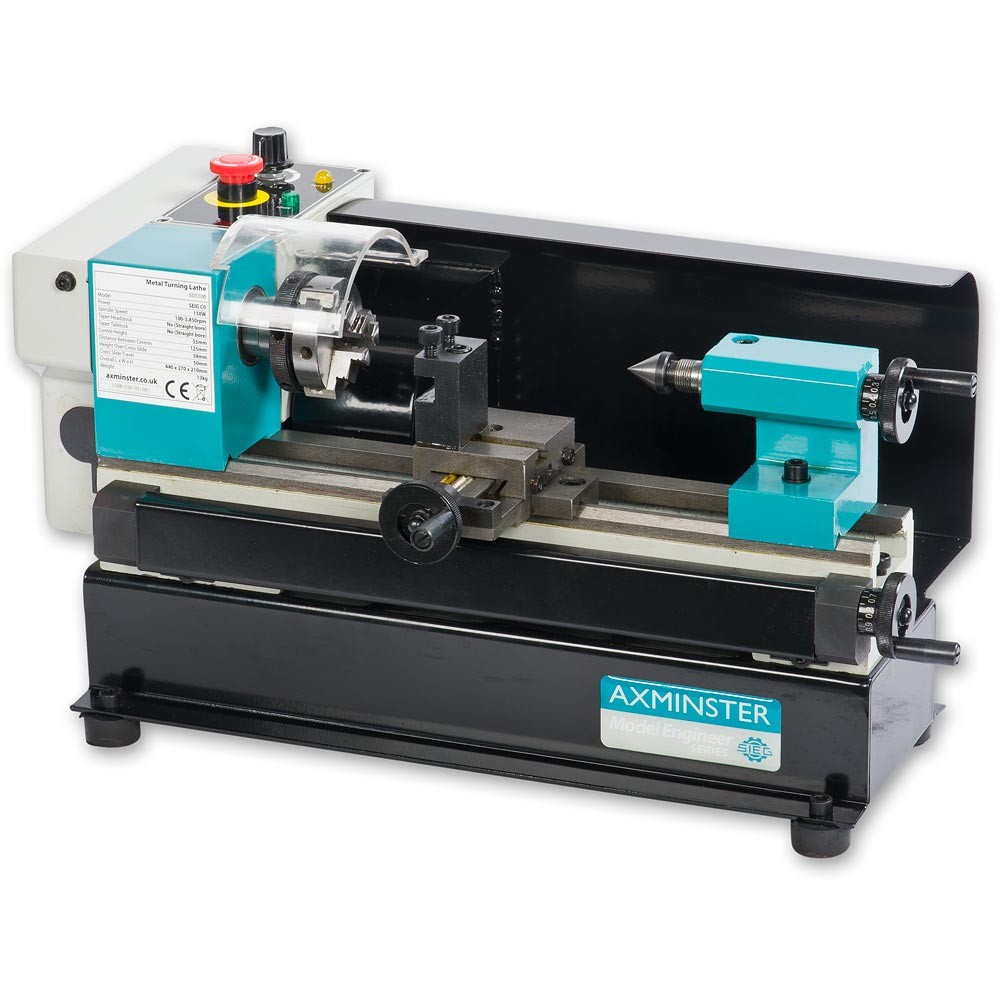

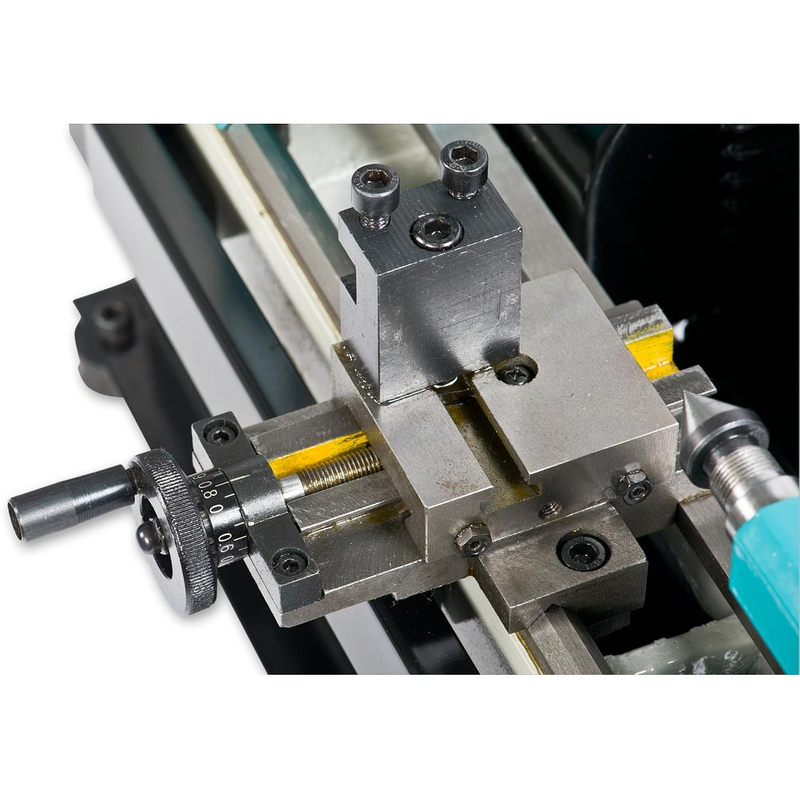

Check stock at your local storeA high quality, miniature metalworking lathe, constructed to a very high standard around a cast iron, hardened and ground bed. The spindle is powered by a 150W motor through a variable speed drive giving spindle speeds of 100-3,850rpm. With a swing of 110mm and 125mm between centres, this is an ideal machine for making small parts for models and integrating metal parts into woodturning projects etc. Weighing only 13kg, this is a very portable but capable machine. It is fitted with a 3-jaw self-centring chuck with reversible jaws, single tool post taking 8mm tooling, splash guard and interlocked chuck guard for safety. The spindle thread is 14 x 1mm and has a 10mm bore.
Centre Height | 55mm |
---|---|
Cross Slide Travel | 50mm |
Distance Between Centres | 125mm |
Height Over Cross Slide | 58mm |
Max Diameter over Bed | 110mm |
Model | SIEG C0 |
Nett Weight | 13kg |
Overall L x W x H | 440 x 270 x 210mm |
Power | 150W |
Rating | Model Engineer |
Spindle Bore | 10mm |
Spindle Speed | 100-3,850rpm |
Headstock Taper | Straight bore |
Tailstock Taper | Straight bore |
.
